LST-2400 - Lesco String Trimmer GEAR CASE ASSY, SHIELD, METAL, HARNESS Parts Diagram

String Trimmer

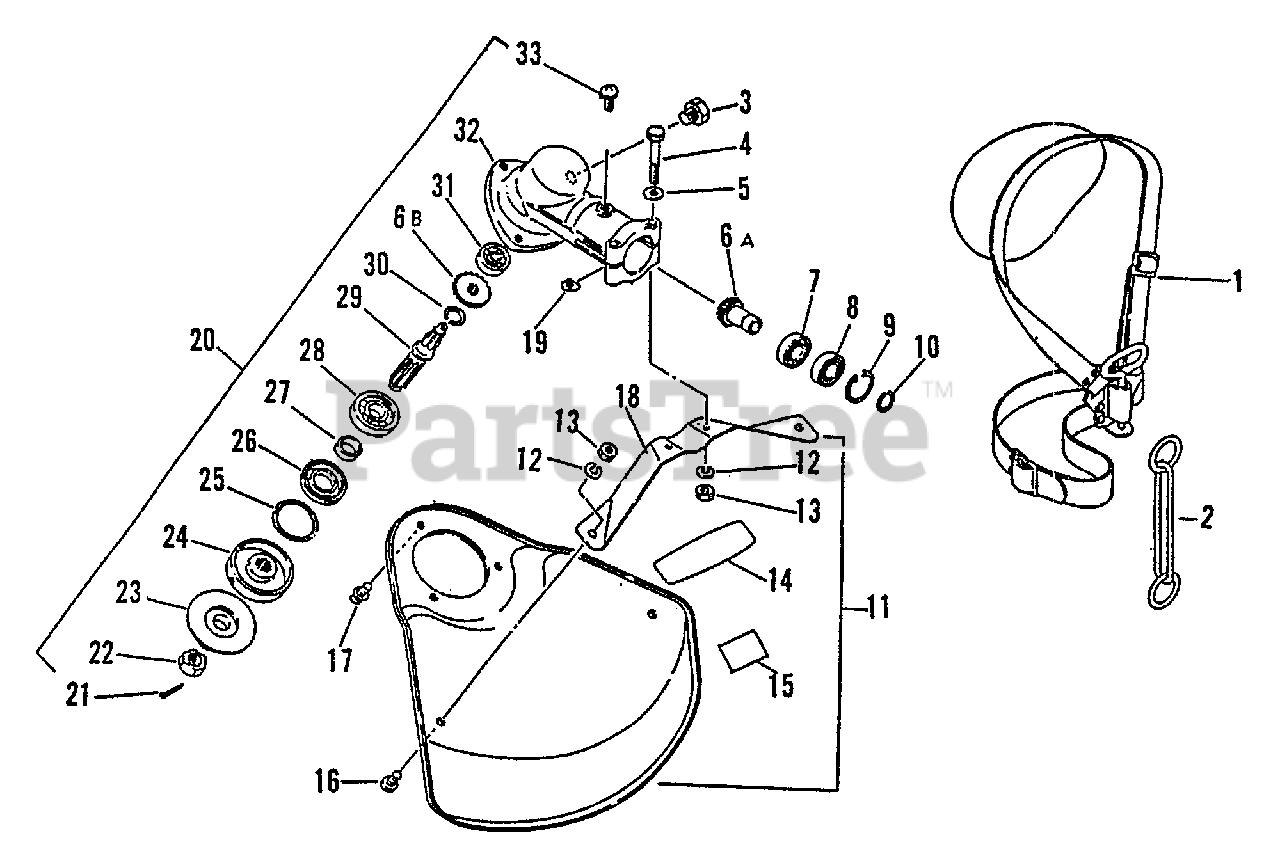

GEAR CASE ASSY, SHIELD, METAL, HARNESS Parts Diagram

  • Title

1

Echo 30100052130

SHOULDER STRAP ASSY
(Superseded to 30100052131)

$25.99

$

In Stock, only 2 left!

0

2

Echo 30130524330

HOOK

$12.99

$

Usually ships in 2-4 days

0

3

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 10

0

4

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 9

0

5

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 61030044830

GEAR SET - BEVEL

$106.99

$

Usually ships in 2-4 days

0

7

Echo 90085506900

BEARING, BALL - 6900

$21.99

$

In Stock, only 2 left!

0

8

Echo 90085806900

BEARING, BALL - 6900Z

$27.99

$

In Stock, only 2 left!

0

9

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 14

0

10

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 20+

0

11

Echo 69900052330

DEBRIS SHIELD KIT
(Superseded to Discontinued)

Note: Includes items 12, 13, 15-18

$

$

Not available

12

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 89011552330

LABEL - LESCO
(Superseded to Discontinued)

$

$

Not available

15

Echo 89016852330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

16

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, only 2 left!

0

17

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

18

Echo 69901523431

BRACKET, SHIELD

$12.99

$

Usually ships in 2-4 days

0

19

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

20

Echo 61040240930

GEAR CASE ASSY
(Superseded to 61040240932)

Note: Includes items 3-10, 19, 21-33

$189.99

$

Usually ships in 2-4 days

0

21

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

22

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.99

$

In Stock, Qty 20+

0

23

Echo C535000150

ADAPTOR, BLADE - LOWER

$10.99

$

In Stock, Qty 12

0

24

Echo 61033808930

ADAPTOR, BLADE - UPPER
(Superseded to C535000160)

$12.99

$

In Stock, Qty 20+

0

25

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

26

Echo 61041307130

SEAL, OIL

$6.99

$

In Stock, only 1 left!

0

27

Echo 61031507130

SPACER

$4.49

$

In Stock, only 2 left!

0

28

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

29

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

30

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

31

Echo 90080000609

BEARING, BALL - 609

$11.99

$

In Stock, Qty 5

0

32

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

33

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0
