LST-2450 - Lesco String Trimmer (SN: 002507 - 007999) Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

String Trimmer

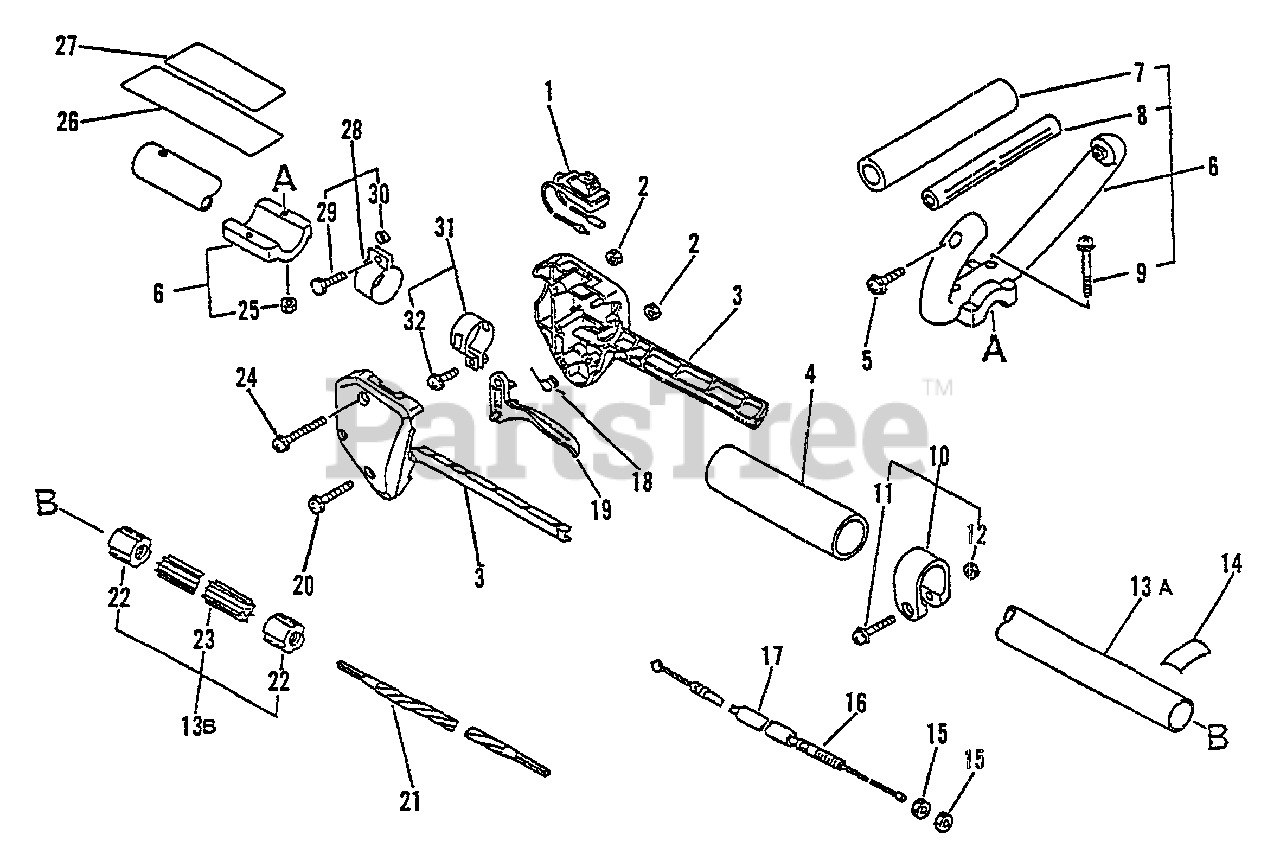

Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo 16340046830

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

2

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

3

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes Items 2, 20 & 24

$5.99

$

In Stock, only 3 left!

0

4

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

5

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

6

Echo 35120151730

LOOP HANDLE ASSY
(Superseded to P021012410)

Note: Includes Items 5, 7 - 9 & 25

$14.99

$

In Stock, only 2 left!

0

7

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

8

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

9

Echo 90024206035

SCREW 6×25

$1.49

$

Usually ships in 2-4 days

0

10

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 11-12

$11.99

$

In Stock, only 2 left!

0

11

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

12

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: Includes Items 22 & 23

$55.99

$

Usually ships in 2-4 days

0

13A

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: See Ref No. 13

$55.99

$

Usually ships in 2-4 days

0

13B

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: See Ref No. 13

$55.99

$

Usually ships in 2-4 days

0

14

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

15

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

16

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

17

Echo 17812750330

PIPE

$1.49

$

In Stock, Qty 7

0

18

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

19

Echo 17801053030

TRIGGER, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

20

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

21

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, Qty 6

0

22

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

23

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 7

0

24

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

25

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

26

Echo 89016052330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

27

Echo 89016052230

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available

28

Echo 301207-08930

HOOK

Note: Includes Items 29 & 30

$5.99

$

Usually ships in 2-4 days

0

29

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

30

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

31

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes Item 32

$11.99

$

In Stock, only 2 left!

0

32

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0
