LST-2450 - Lesco String Trimmer (SN: 008000 - 999999) Carburetor Parts Diagram

String Trimmer

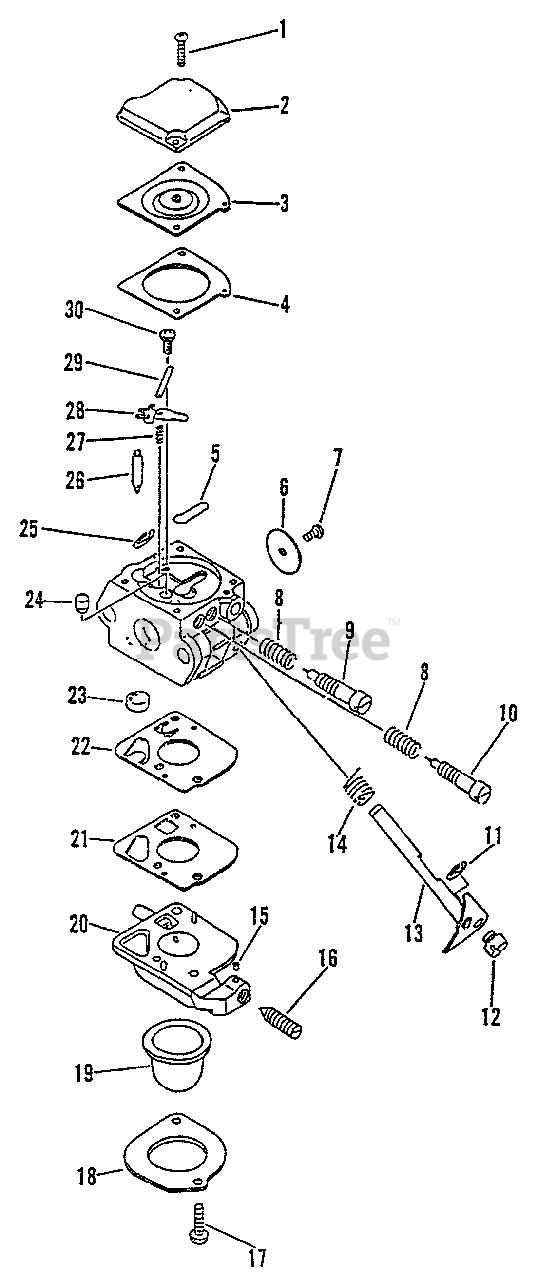

Carburetor Parts Diagram

  • Title

Echo 12520052131

CARBURETOR - C1U-K23A
(Superseded to 12520013313)

Note: Includes ITEMS 1-30

$94.99

$

In Stock, Qty 7

0

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, DIAPHRAGM
(Superseded to 12534213210)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: Use Rebuild Kit, P/N 12530051030 & Gasket/Diaphragm Kit, P/N 12530351030

$

$

Not available

4

GASKET, DIAPHRAGM

Note: Use Rebuild Kit, P/N 12530051030 & Gasket/Diaphragm Kit, P/N 12530351030

$

$

Not available

5

PLUG, WELCH

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

6

Echo 12531651230

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12531451230

SCREW 3×4.5

$1.49

$

Usually ships in 2-4 days

0

8

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

9

Echo 12532051230

NEEDLE, HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

10

Echo 12531851330

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

12

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

13

Echo 125317-42030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

14

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

15

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

17

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

18

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

19

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

20

Echo 12532411610

BODY ASSY, PURGE

$25.99

$

In Stock, only 3 left!

0

21

GASKET, PUMP

Note: Use Rebuild Kit, P/N 12530051030 & Gasket/Diaphragm Kit, P/N 12530351030

$

$

Not available

22

DIAPHRAGM, PUMP

Note: Use Rebuild Kit, P/N 12530051030 & Gasket/Diaphragm Kit, P/N 12530351030

$

$

Not available

23

STRAINER

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

24

Echo 12537651030

NOZZLE, CHECK VALVE

$6.99

$

In Stock, only 1 left!

0

25

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

26

VALVE, NEEDLE

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

27

SPRING

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

28

LEVER, METERING

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

29

PIN, METERING LEVER

Note: Use Rebuild Kit, P/N 12530051030

$

$

Not available

30

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

Echo 12530051030

REPAIR KIT

$34.99

$

In Stock, only 2 left!

0

Echo 12530351030

GASKET / DIAPHRAGM KIT

$22.99

$

In Stock, only 3 left!

0

Echo 88900051030

GASKET KIT

Note: Includes The Following Items

$25.99

$

Usually ships in 2-4 days

0

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

$4.99

$

Usually ships in 2-4 days

0

GASKET, CRANKCASE

$

$

Not available

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

Echo 14586651030

GASKET, EXHAUST

$6.49

$

Usually ships in 2-4 days

0

Echo 14551051030

GASKET, MUFFLER

$4.49

$

Usually ships in 2-4 days

0
