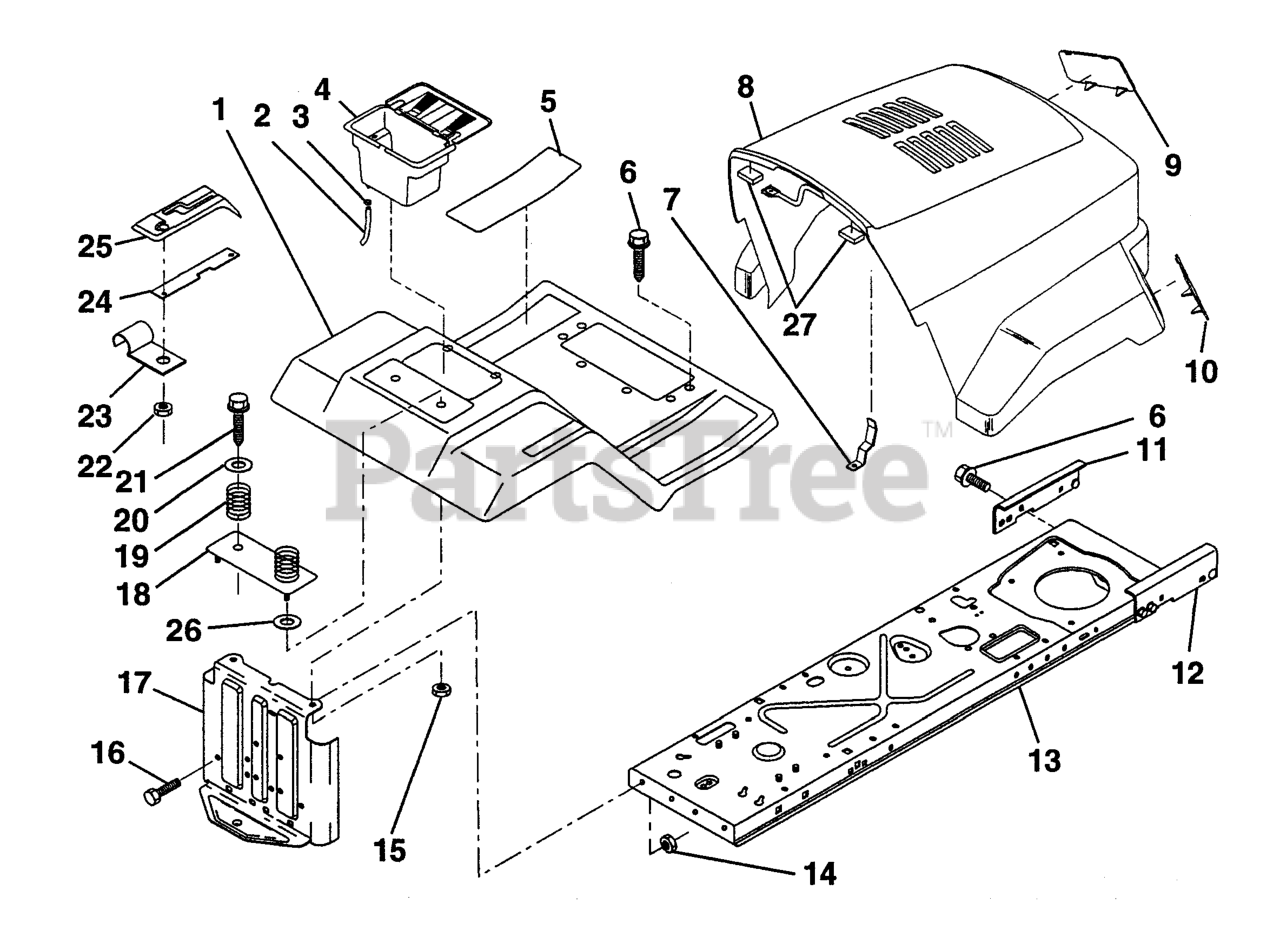

LT 100 (954000312-A) - Husqvarna Lawn Tractor (1991-07) Fender/Chassis Parts Diagram

Lawn Tractor

Fender/Chassis Parts Diagram

  • Title

1

Husqvarna 532125141

FENDER/FOOTREST
(Superseded to 532141393)

$

$

Not available

2

Husqvarna 532105687

TUBE, PLASTIC LT
(Superseded to 532109238)

$

$

Not available

3

Husqvarna 532109596

HOSE CLAMP T

$

$

Not available

4

Husqvarna 532129965

CASE BATTERY
(Superseded to 532404349)

$

$

Not available

5

Husqvarna 532124144

PAD FOOTREST

$

$

Not available

6

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532131318

LATCH HOOD
(Superseded to 532139969)

$

$

Not available

8

Husqvarna 532131053

HOOD/GRILL ASSEMBLY
(Superseded to 532140145)

Note: (Includes Key Nos. 21 and 22)

$

$

Not available

9

Husqvarna 532130986

LENS.LR.LH.HUSQV.

$

$

Not available

10

Husqvarna 532130985

LENS RH

$

$

Not available

11

Husqvarna 532128449

BRK PVT FRAME LH

$

$

Not available

12

Husqvarna 532128808

BRK PVT FRAME RH

$

$

Not available

13

Husqvarna 532123645

FRAME ASS'Y

$

$

Not available

14

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

15

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532127880

DRAW BAR

$

$

Not available

18

Husqvarna 532125142

PLATE ASM BATTERY
(Superseded to 532127115)

$

$

Not available

19

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

22

Husqvarna 532124346

NUT.PUSH.3/16

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532126470

CLIP,INSULATOR

$

$

Not available

24

Husqvarna 532124602

BAR SHIP LOCK

$

$

Not available

25

Husqvarna 532126996

CONSOLE SHT CONTR

$

$

Not available

26

Husqvarna 819091413

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

27

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

Husqvarna 532131319

CVR LIGHT SOCKET

$

$

Not available
