LT 100 (954000312-A) - Husqvarna Lawn Tractor (1991-07) Front Axle Parts Diagram

Lawn Tractor

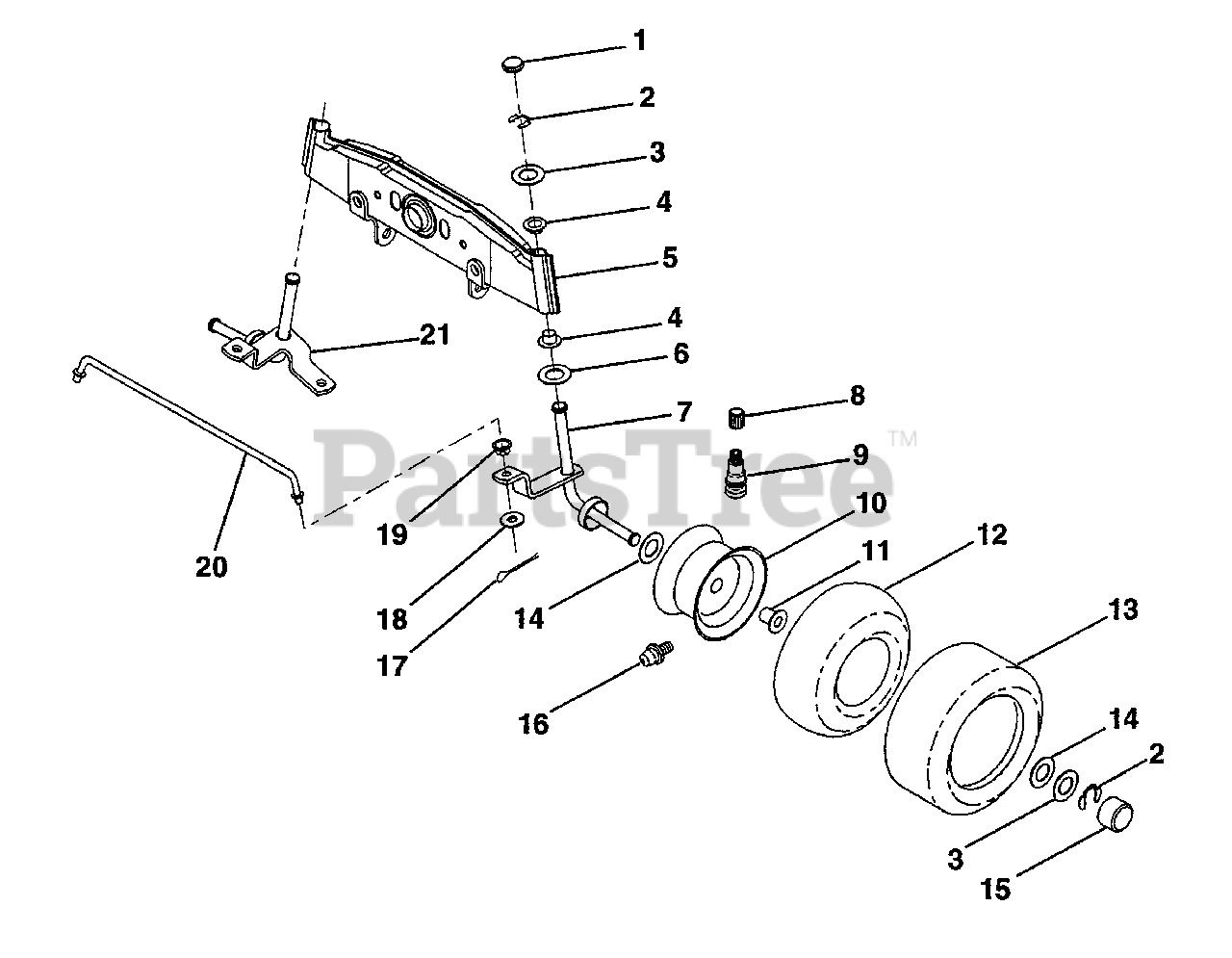

Front Axle Parts Diagram

  • Title

1

Husqvarna 532121232

Cap, Spindle

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 812000029

Ring, Clip

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 532121922

Nyliner

$6.49

$

In Stock, Qty 7

0

5

Husqvarna 532128543

Axle, Front

$

$

Not available

6

Husqvarna 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

7

Husqvarna 532121919

Spindle, R.H. Asm.

$

$

Not available

8

Husqvarna 532059192

Cap, Valve

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532065139

Stem, Valve

$10.99

$

In Stock, Qty 16

0

10

Husqvarna 532124972

Rim
(Superseded to 532137237)

$80.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532124959

Bearing, Flange
(Superseded to 532009040)

$6.49

$

In Stock, Qty 20+

0

12

Husqvarna 532059904

Tube

$37.99

$

In Stock, Qty 20+

0

13

Husqvarna 532124142

Tire, Front
(Superseded to 532123410)

$66.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 532104757

Cap, Axle

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532124957

Fitting, Grease
(Superseded to 532000278)

$6.49

$

In Stock, Qty 20+

0

17

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532126847

Bushing

$4.99

$

In Stock, Qty 11

0

20

Husqvarna 532121924

Rod, Tie

$

$

Not available

21

Husqvarna 532121916

Spindle, L.H. Asm.

$

$

Not available
