LT 100 - Husqvarna Lawn Tractor (1992-03) MOWER LIFT LEVER Parts Diagram

Lawn Tractor

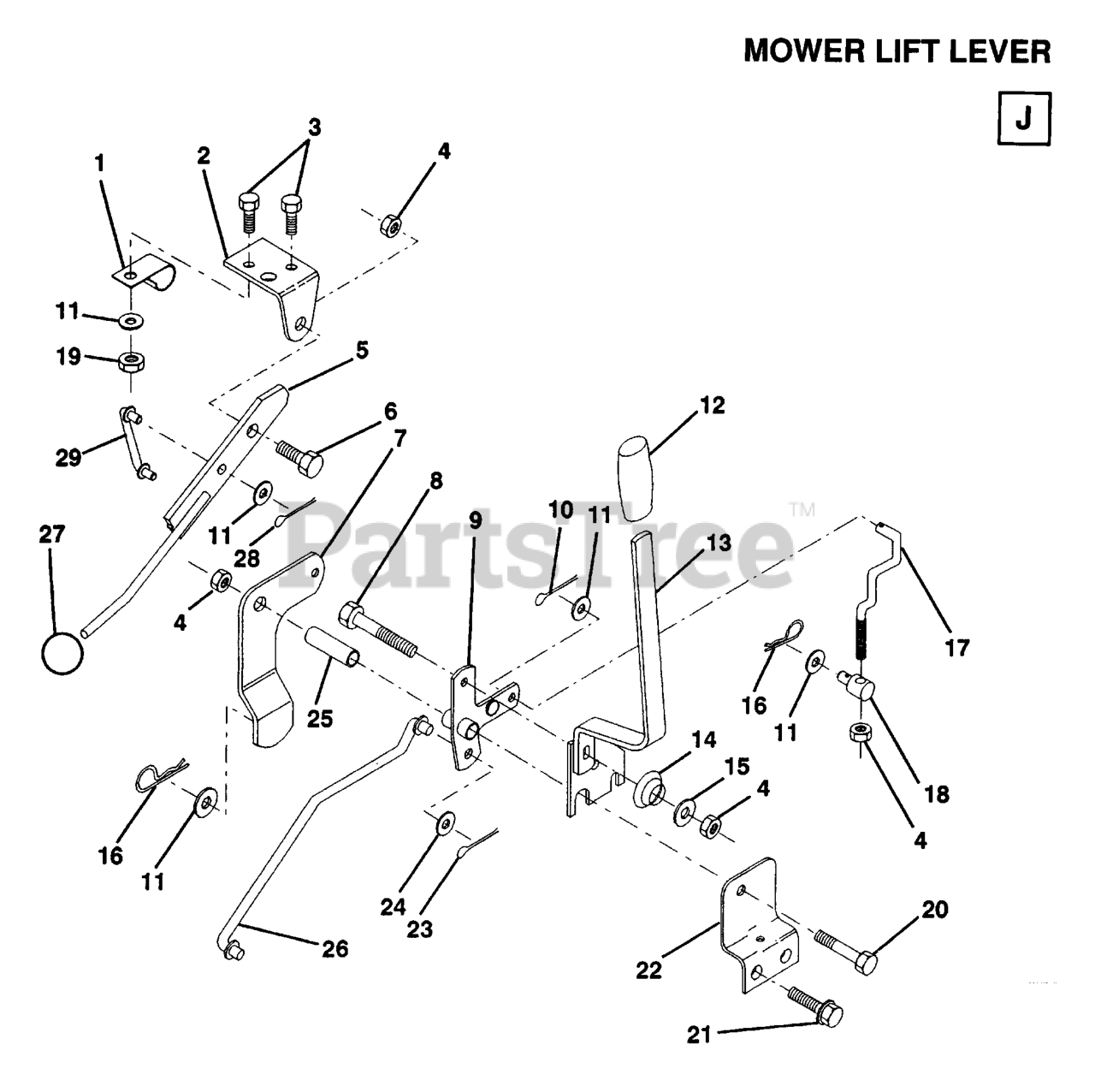

MOWER LIFT LEVER Parts Diagram

  • Title

8

Husqvarna 874760636

BOLT

$5.99

$

In Stock, only 1 left!

0

13

Husqvarna 532127028

HDLE, LIFT T

$

$

Not available

27

Husqvarna 532121466

KNOB

Note: LT120

$

$

Not available

5

Husqvarna 532123417

CLUTCH LEVER ASSY
(Superseded to 532145187)

$

$

Not available

28

Husqvarna 876020312

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532122027

GRIP HANDLE

Note: LT120

$

$

Not available

19

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 532122018

BRKT CLUTCH

$

$

Not available

12

Husqvarna 532131861

HANDLE GRIP

Note: LT100

$

$

Not available

4

Husqvarna 873680600

LOCKNUT

$

$

Not available

17

Husqvarna 532127359

LINK LIFT FRT

$

$

Not available

9

Husqvarna 532121930

BELLCRANK,LIFT

$

$

Not available

1

Husqvarna 532126470

CLIP,INSULATOR

$

$

Not available

21

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

18

Husqvarna 532133205

TRUNION
(Superseded to 532142028)

$

$

Not available

15

Husqvarna 819131210

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532106451

BOLT, SHOULDER LT

$

$

Not available

16

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

11

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 532123671

LINK,MOWER LIFT

$

$

Not available

14

Husqvarna 532123496

SPRING COMPRESSIO

$

$

Not available

27

Husqvarna 532106932

KNOB T (3/8 HOLE)

Note: LT100

$9.49

$

In Stock, Qty 7

0

20

Husqvarna 874760644

BOLT

$

$

Not available

10

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532123491

CLUTCH ARM ASS'Y

$

$

Not available

3

Husqvarna 874780412

BOLT
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532121934

ROD,MOWER LIFT
(Superseded to 532141470)

$

$

Not available

25

Husqvarna 532121933

TUBE SPACER

$

$

Not available

22

Husqvarna 532121929

BRKT,MOWER HGT

$

$

Not available

24

Husqvarna 819171616

WASHER
(Superseded to 596040101)

$3.49

$

In Stock, Qty 20+

0
