LT 100 - Husqvarna Lawn Tractor (1992-03) SECTOR GEAR / AXLE SUPPORT Parts Diagram

Lawn Tractor

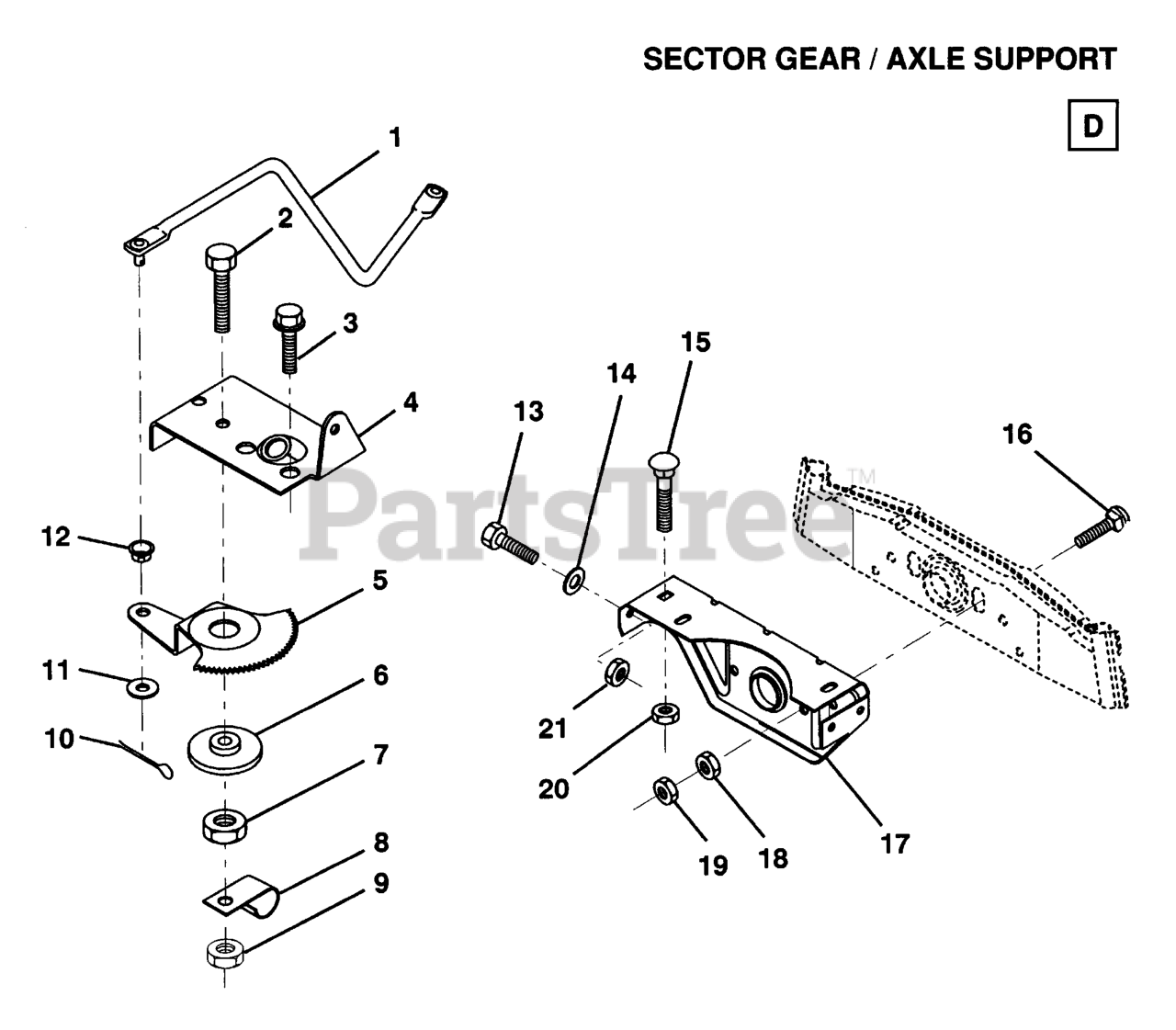

SECTOR GEAR / AXLE SUPPORT Parts Diagram

  • Title

15

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 819111416

WASHER
(Superseded to 734116541)

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.49

$

In Stock, Qty 7

0

18

Husqvarna 873680600

LOCKNUT

$

$

Not available

10

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

17

Husqvarna 532121912

SUPT,FRT AXLE

$

$

Not available

19

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

5

Husqvarna 532121926

GEAR SECTOR

$

$

Not available

1

Husqvarna 532124093

LINK DRAG
(Superseded to 532132566)

$45.99

$

In Stock, only 1 left!

0

16

Husqvarna 872140622

BOLT
(Superseded to 872110622)

$4.99

$

In Stock, Qty 5

0

11

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

8

Husqvarna 532126472

CLIP INSULATOR

$

$

Not available

2

Husqvarna 874780828

BOLT,HEX

$

$

Not available

6

Husqvarna 532121927

BUSHING

$

$

Not available

20

Husqvarna 873680600

LOCKNUT

$

$

Not available

4

Husqvarna 532121925

PLATE,STR SUPT

$

$

Not available

12

Husqvarna 532126847

BUSHING.DRAGLINK (2 2)

$5.99

$

In Stock, Qty 10

0

7

Husqvarna 873680800

NUT LTV
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0

9

Husqvarna 873680800

NUT LTV
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0
