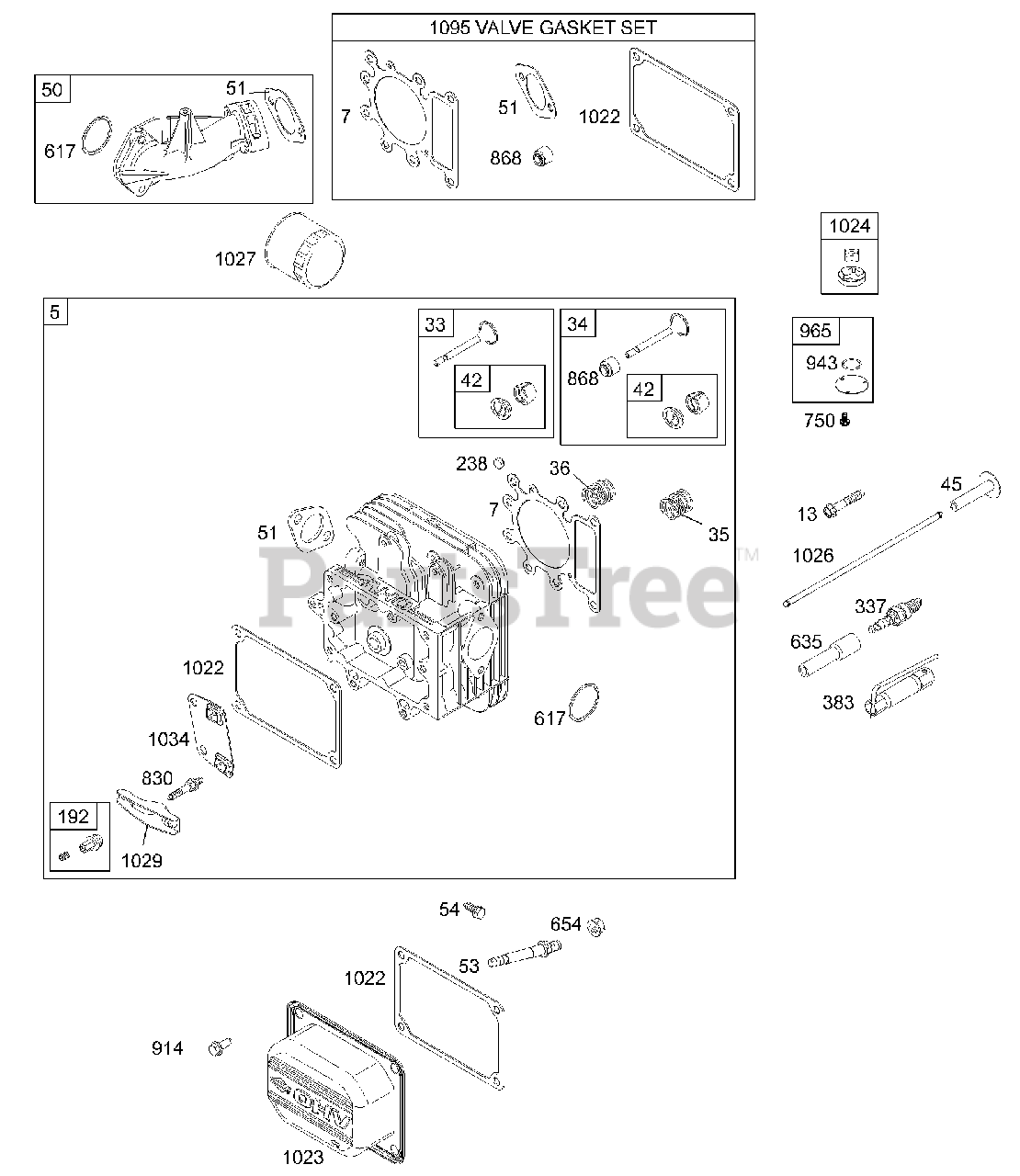

LT 1018 (13AX11CG710) - Cub Cadet 42" Lawn Tractor Engine (Part 2) 18.5 HP Parts Diagram

42" Lawn Tractor

Engine (Part 2) 18.5 HP Parts Diagram

  • Title

5

Cub Cadet BS-698404

Head-Cylinder (Cylinder 1)
(Superseded to BS-796026)

$226.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-699168

Gasket-Cylinder Head
(Superseded to BS-794114)

Note: Included in Engine Gasket Set, Key. No. 358

$20.99

$

In Stock, Qty 18

0

13

Cub Cadet BS-690360

Screw (Cylinder Head)
(Superseded to BS-84001963)

$3.49

$

Usually ships in 3-6 days

0

33

Cub Cadet BS-698370

Valve-Exhaust
(Superseded to BS-792868)

$35.99

$

In Stock, Qty 5

0

34

Cub Cadet BS-695761

Valve-Intake
(Superseded to BS-791935)

$27.99

$

In Stock, Qty 5

0

35

Cub Cadet BS-691279

Spring-Valve (Intake)

$5.99

$

In Stock, only 2 left!

0

36

Cub Cadet BS-691279

Spring-Valve (Exhaust)

$5.99

$

In Stock, only 2 left!

0

42

Cub Cadet BS-499586

keeper-Valve

$7.49

$

In Stock, only 2 left!

0

45

Cub Cadet BS-690564

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

50

Cub Cadet BS-699028

Manifold-Intake

$18.99

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-692137

Gasket-Intake

Note: Included in Engine Gasket Set, Key. No. 358; Carburetor Overhaul Kit, Key. No. 121; Carburetor Gasket Set, Key. No. 977

$3.49

$

In Stock, Qty 20+

0

53

Cub Cadet BS-690227

Stud (Carburetor)

$7.99

$

In Stock, Qty 12

0

54

Cub Cadet BS-691148

Screw (Intake Manifold)

$3.99

$

In Stock, only 2 left!

0

192

Cub Cadet BS-691986

Adjuster-Rocker Arm

$11.99

$

In Stock, only 4 left!

0

238

Cub Cadet BS-691843

Cap-Valve

$8.49

$

In Stock, Qty 10

0

337

Cub Cadet BS-491055

Plug-Spark
(Superseded to 759-3336)

$3.49

$

In Stock, Qty 20+

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

617

Cub Cadet BS-692138

Seal-O Ring (Intake Manifold)

Note: Included in Engine Gasket Set, Key. No. 358; Carburetor Overhaul Kit, Key. No. 121

$5.49

$

In Stock, Qty 14

0

635

Cub Cadet BS-691909

Boot-Spark Plug

$4.99

$

In Stock, Qty 10

0

750

Cub Cadet BS-691033

Screw (Oil Pump Cover)

$

$

Not available

830

Cub Cadet BS-691095

Stud (Rocker Arm)

$7.99

$

In Stock, only 1 left!

0

868

Cub Cadet BS-690968

Seal-Valve

Note: Included in Engine Gasket Set, Key. No. 358; Carburetor Gasket Set, Key. No. 977

$10.99

$

In Stock, only 2 left!

0

914

Cub Cadet BS-691108

Screw (Rocker Cover)

$3.49

$

In Stock, Qty 20+

0

943

Cub Cadet BS-690589

Seal-O Ring (Oil Pump Cover)

$8.99

$

In Stock, only 1 left!

0

965

Cub Cadet BS-499613

Cover-Oil Pump

$13.99

$

In Stock, only 1 left!

0

1022

Cub Cadet BS-272475

Gasket-Rocker Cover
(Superseded to BS-272475S)

Note: Included in Engine Gasket Set, Key. No. 358; Carburetor Gasket Set, Key. No. 977

$6.49

$

In Stock, Qty 20+

0

1023

Cub Cadet BS-692492

Cover-Rocker Arm
(Superseded to BS-797421)

$35.99

$

In Stock, only 1 left!

0

1024

Cub Cadet BS-499054

Pump-Oil
(Superseded to BS-795259)

$32.99

$

In Stock, Qty 12

0

1026

Cub Cadet BS-692003

Rod-Push (Intake)

$7.99

$

In Stock, Qty 20+

0

1027

Cub Cadet BS-696854

Filter-Oil

$13.99

$

In Stock, Qty 20+

0
