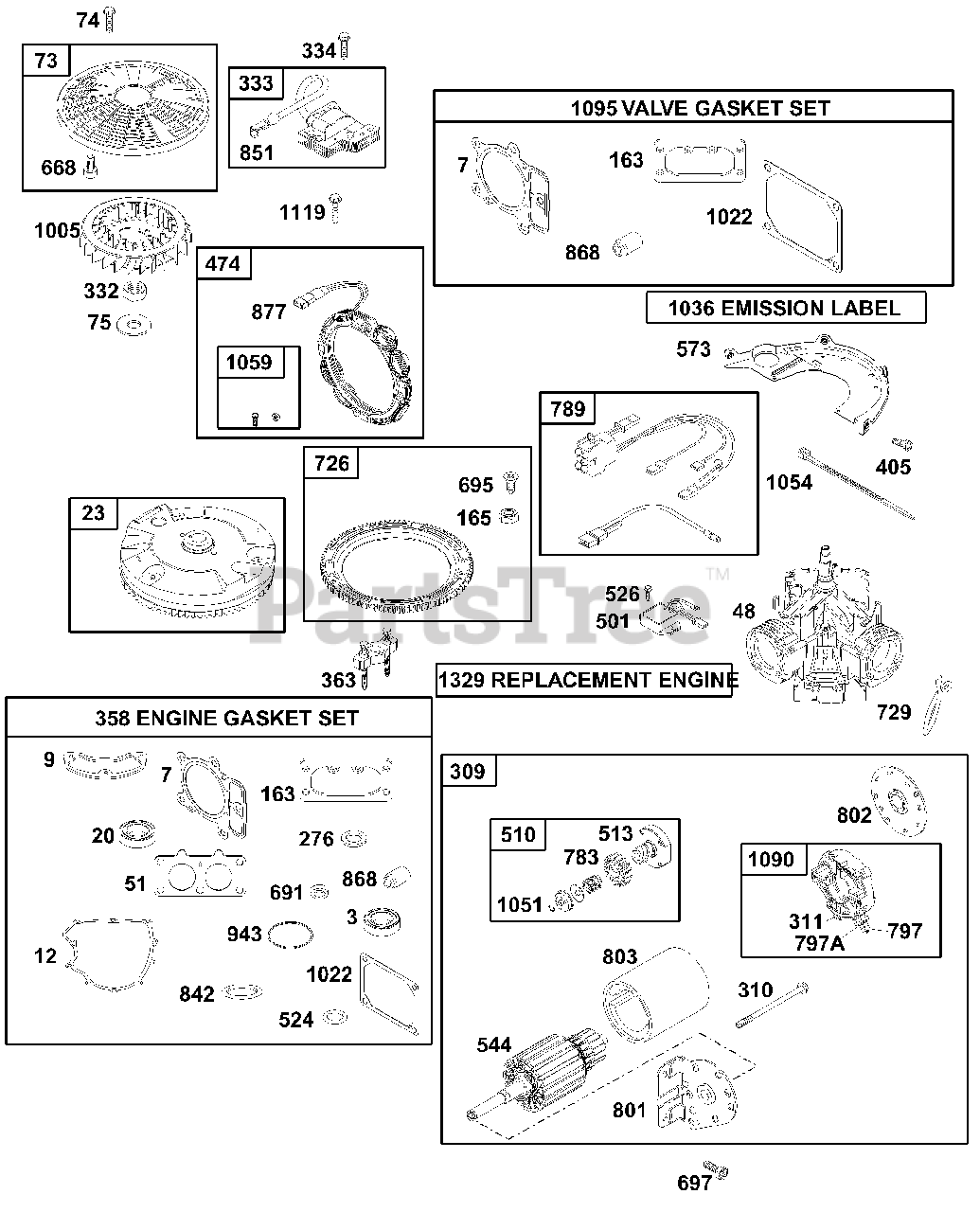

LT 1018 (13AX11CG710) - Cub Cadet 42" Lawn Tractor Engine (Part 3) 22 HP Parts Diagram

42" Lawn Tractor

Engine (Part 3) 22 HP Parts Diagram

  • Title

3

Cub Cadet BS-391086

Seal-Oil (Magneto Side)
(Superseded to BS-391086S)

Note: Included in Engine Gasket Set, Key. No. 358

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-690962

Gasket-Cylinder Head
(Superseded to BS-693997)

Note: Included in Engine Gasket Set, Key. No. 358; Valve Gasket Set, Key. No. 1095

$24.99

$

In Stock, Qty 20+

0

9

Cub Cadet BS-690937

Gasket-Breather

Note: Included in Engine Gasket Set, Key. No. 358

$8.49

$

In Stock, only 3 left!

0

12

Cub Cadet BS-697227

Gasket-Crankcase
(Superseded to BS-594195)

Note: Included in Engine Gasket Set, Key. No. 358

$37.99

$

In Stock, Qty 20+

0

20

Cub Cadet BS-690947

Seal-Oil (PTO Side)
(Superseded to BS-795387)

Note: Included in Engine Gasket Set, Key. No. 358

$7.49

$

In Stock, Qty 20+

0

23

Cub Cadet BS-691053

Flywheel
(Superseded to BS-84004658)

$255.99

$

Usually ships in 2-12 days

0

48

Cub Cadet BS-698177

Short Block

$

$

Not available

51

Cub Cadet BS-690950

Gasket-Intake

Note: Included in Engine Gasket Set, Key. No. 358; Carburetor Overhaul Kit, Key. No. 121; Carburetor Gasket Set, Key. No. 977

$2.99

$

In Stock, Qty 20+

0

73

Cub Cadet BS-691055

Screen-Rotating
(Superseded to BS-494439)

$53.99

$

In Stock, only 1 left!

0

74

Cub Cadet BS-698425

Screw (Rotating Screen)

$3.49

$

In Stock, only 4 left!

0

75

Cub Cadet BS-691056

Washer (Flywheel)

$9.49

$

In Stock, only 1 left!

0

163

Cub Cadet BS-691001

Gasket-Air Cleaner

Note: Included in Engine Gasket Set, Key. No. 358; Valve Gasket Set, Key. No. 1095

$3.49

$

In Stock, Qty 11

0

165

Cub Cadet BS-693148

Nut (Ring Gear)

$3.49

$

In Stock, only 4 left!

0

276

Cub Cadet BS-690997

Washer-Sealing

Note: Included in Engine Gasket Set, Key. No. 358; Carburetor Overhaul Kit, Key. No. 121; Valve Gasket Set, Key. No. 1095

$7.99

$

In Stock, only 2 left!

0

309

Cub Cadet BS-691262

Motor-Starter
(Superseded to BS-795121)

$143.99

$

In Stock, Qty 18

0

310

Cub Cadet BS-691263

Bolt (Starter Motor)

$3.49

$

Usually ships in 2-12 days

0

311

Cub Cadet BS-497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

332

Cub Cadet BS-691059

Nut (Flywheel)

$4.49

$

In Stock, only 1 left!

0

333

Cub Cadet BS-691060

Armature-Magneto
(Superseded to BS-592846)

$56.99

$

In Stock, only 2 left!

0

334

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-694012

Set-Engine Gasket

$113.99

$

In Stock, only 2 left!

0

363

Cub Cadet BS-691062

Flywheel Puller

$

$

Currently unavailable

405

Cub Cadet BS-697820

Screw (Back Plate)

$4.49

$

In Stock, only 2 left!

0

474

Cub Cadet BS-696458

Alternator
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 7

0

501

Cub Cadet BS-691185

Regulator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 18

0

510

Cub Cadet BS-497606

Drive-Starter
(Superseded to BS-696541)

$

$

Not available

513

Cub Cadet BS-692024

Clutch-Drive

$21.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-691032

Seal-Dipstick Tube

$5.99

$

In Stock, Qty 8

0

526

Cub Cadet BS-690960

Screw (Regulator)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

544

Armature-Starter

Note: (Service with 691262 Starter Motor)

$

$

Not available

573

Cub Cadet BS-691009

Plate-Back

$

$

Not available

668

Cub Cadet BS-691215

Spacer

$7.49

$

In Stock, only 1 left!

0

691

Cub Cadet BS-690657

Seal-Governor Shaft
(Superseded to BS-790574)

Note: Included in Engine Gasket Set, Key. No. 358

$5.99

$

In Stock, Qty 8

0

695

Cub Cadet BS-693149

Screw (Ring Gear)

$3.99

$

In Stock, only 4 left!

0

697

Cub Cadet BS-690372

Screw (Drive Cap)
(Superseded to BS-791680)

$3.99

$

In Stock, only 2 left!

0

726

Cub Cadet BS-499612

Gear-Ring

$71.99

$

In Stock, only 1 left!

0

729

Cub Cadet BS-694123

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

783

Cub Cadet BS-693058

Gear-Pinion
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

789

Cub Cadet BS-698330

Harness-Wiring

$39.99

$

In Stock, only 1 left!

0

797

Cub Cadet BS-691029

Nut (Brush Retainer)

$5.49

$

Usually ships in 2-12 days

0

797A

Cub Cadet BS-693167

Nut (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Cub Cadet BS-691283

Cap-Drive

$83.99

$

Usually ships in 2-12 days

0

802

Cub Cadet BS-691286

Cap-End

$26.99

$

Usually ships in 2-12 days

0

803

Housing-Starter

Note: (Service with 691262 Starter Motor)

$

$

Not available

842

Cub Cadet BS-691031

Seal-Dipstick/Tube

Note: Included in Engine Gasket Set, Key. No. 358

$5.49

$

In Stock, Qty 12

0

851

Cub Cadet BS-493880

Terminal-Sparkplug
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

868

Cub Cadet BS-690968

Seal-Valve

Note: Included in Engine Gasket Set, Key. No. 358; Valve Gasket Set, Key. No. 1095

$10.99

$

In Stock, only 1 left!

0

877

Cub Cadet BS-399916

Wire/Connector- Alternator

$12.99

$

Usually ships in 2-12 days

0

943

Cub Cadet BS-690589

Seal-O Ring (Oil Pump Cover)

$8.99

$

In Stock, only 1 left!

0

1005

Cub Cadet BS-698760

Fan-Flywheel
(Superseded to BS-790692)

$159.99

$

Usually ships in 2-12 days

0

1022

Cub Cadet BS-690971

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1036

Cub Cadet BS-697913

Label-Emission

$8.49

$

Usually ships in 2-12 days

0

1051

Cub Cadet BS-691265

Ring-Retaining

$5.49

$

In Stock, Qty 7

0

1054

Cub Cadet BS-280275

Cable-Tie

$4.49

$

Usually ships in 2-12 days

0

1059

Cub Cadet BS-698516

Kit-Screw/Washer

$5.49

$

In Stock, only 1 left!

0

1090

Cub Cadet BS-691293

Retainer-Brush

$29.99

$

In Stock, Qty 6

0

1095

Cub Cadet BS-694013

Gasket Set-Valve

$69.99

$

In Stock, Qty 7

0

1119

Cub Cadet BS-691183

Screw (Alternator)
(Superseded to BS-93621)

$

$

Not available

1329

Cub Cadet BS-40H777-0027

Replacement Engine
(Superseded to BS-44K777-0027)

Note: (Transfer 6 pin Harness and Governor Spring)

$

$

Not available
