LT 1018 (13AX11CG710) - Cub Cadet 42" Lawn Tractor Power Take-Off (PTO) System Parts Diagram

42" Lawn Tractor

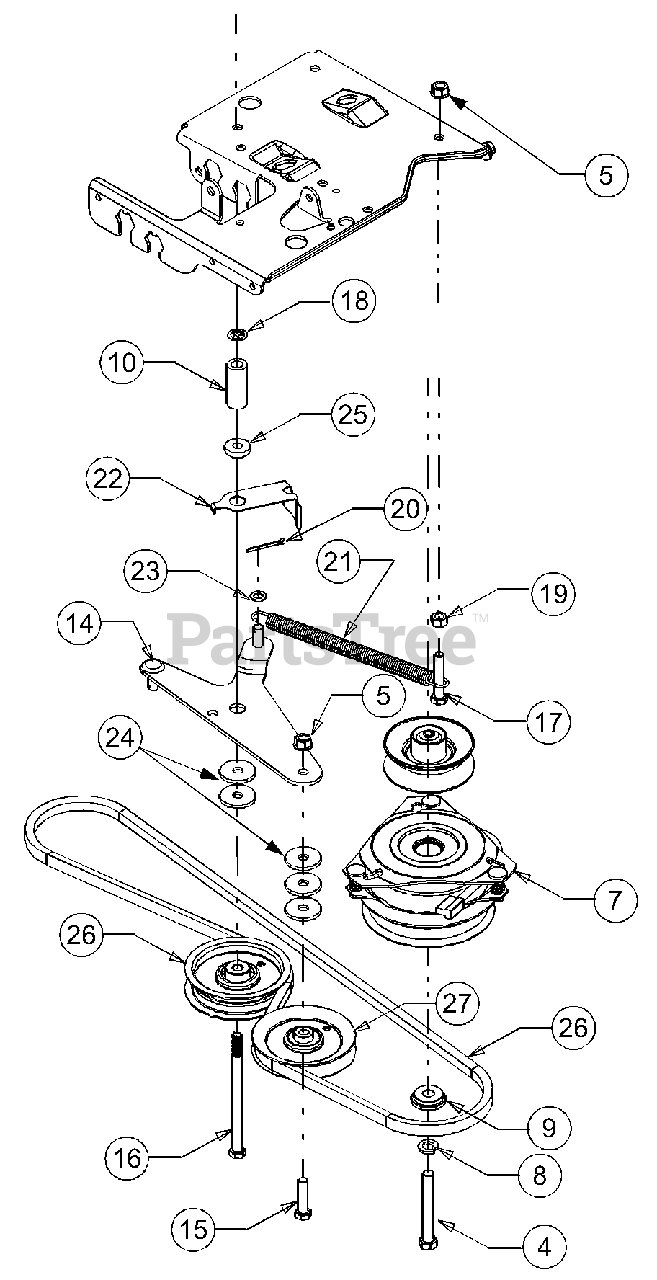

Power Take-Off (PTO) System Parts Diagram

  • Title

4

Cub Cadet 710-3157

Screw, Hex Cap, 7/16-20 x 3.25 GR5
(Superseded to 710-3157A)

$9.99

$

In Stock, Qty 14

0

5

Cub Cadet 712-0130

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 717-1708

Clutch, Electric PTO (Model 1018)
(Superseded to 917-1708)

$577.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0171

Washer, Lock, 7/16, Regular Duty

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 738-0785

Spacer, Shoulder, 1.38 x .445 x .36
(Superseded to 938-0785)

$24.99

$

In Stock, Qty 5

0

10

Cub Cadet 748-0415A

Spacer, 3/8 x 1.54
(Superseded to 748-0415B)

$6.99

$

In Stock, Qty 14

0

14

Cub Cadet 683-0450

Plate Assembly, Engagement

Variations

Cub Cadet 683-0450-0637

Engage Plate Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 710-0347

Screw, 3/8-16, 1.75

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0831

Screw, 3/8-16, 5.5

$

$

Not available

17

Cub Cadet 710-3144

Screw, 3/8-16, 2.0

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0229

Push Nut, 3/8

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3017

Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0470

Cotter Pin, 1/8 x 1.25

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 732-0384

Spring, Extension .62 x 6.12
(Superseded to 932-0384)

$13.99

$

In Stock, Qty 20+

0

22

Cub Cadet 732-0991A

Belt Guard

$14.99

$

In Stock, only 1 left!

0

23

Cub Cadet 736-0140

Washer, Flat .385 x .62 x .063

$6.99

$

In Stock, Qty 9

0

24

Cub Cadet 736-3039

Washer, Flat .406 x 1.5 x .11 Ga

$4.99

$

In Stock, Qty 18

0

25

Cub Cadet 738-0372B

Shoulder Spacer, .380

$8.99

$

In Stock, Qty 20+

0

26

Cub Cadet 756-0627B

Pulley, Idler, 3.5
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

Cub Cadet 754-0497

PTO Belt
(Superseded to 954-0497)

$45.99

$

In Stock, Qty 20+

0

27

Cub Cadet 756-1208

Pulley, Idler, 4.0

$32.99

$

In Stock, Qty 14

0

Cub Cadet 756-0978A

Pulley, Engine
(Superseded to 756-0978B)

Note: (not shown)

$61.99

$

In Stock, Qty 20+

0
