LT 1024 (13AR11CP710) - Cub Cadet 50" Lawn Tractor Engine (Part 1) Parts Diagram

50" Lawn Tractor

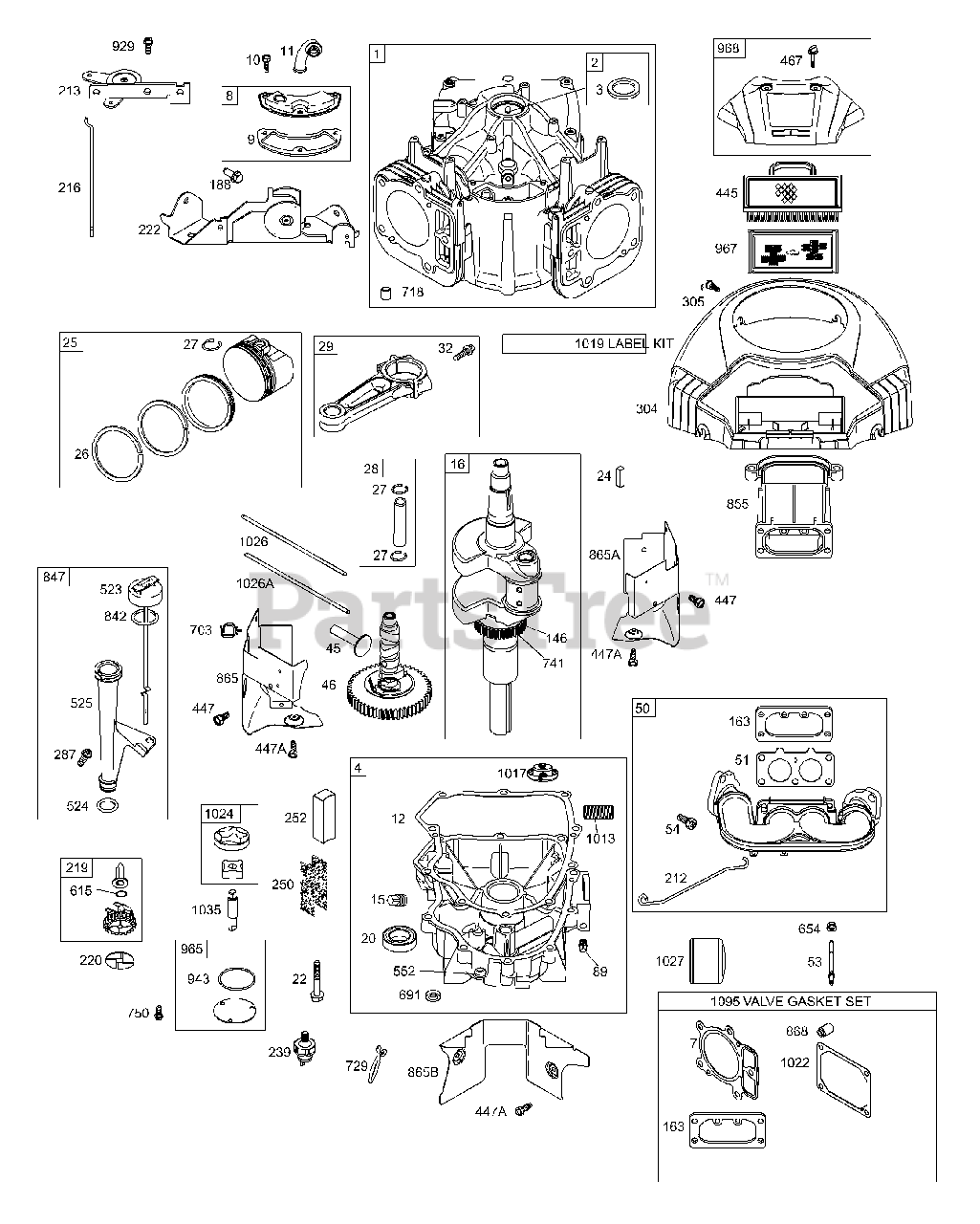

Engine (Part 1) Parts Diagram

  • Title

1

Cub Cadet BS-699753

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-499585

Kit-Bushing/Seal (Magneto

$18.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-391086

Seal-Oil (Magneto Side)
(Superseded to BS-391086S)

Note: Included in Engine Gasket Set, Key No. 358

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-699747

Sump-Engine
(Superseded to BS-796307)

$278.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-693997

Gasket-Cylinder Head

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key No. 1095

$24.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-499601

Breather Assembly
(Superseded to BS-792185)

$

$

Not available

9

Cub Cadet BS-690937

Gasket-Breather

Note: Included in Engine Gasket Set, Key No. 358

$8.49

$

In Stock, only 2 left!

0

10

Cub Cadet BS-690960

Screw (Breather Assembly)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-690942

Tube-Breather
(Superseded to BS-792184)

$14.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-697227

Gasket-Crankcase
(Superseded to BS-594195)

Note: Included in Engine Gasket Set, Key No. 358

$37.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-690946

Plug-Oil Drain

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-691046

Crankshaft
(Superseded to BS-699701)

$

$

Not available

20

Cub Cadet BS-690947

Seal-Oil (PTO Side)
(Superseded to BS-795387)

Note: Included in Engine Gasket Set, Key No. 358

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-694966

Screw (Engine Sump)

$5.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-697679

Piston Assembly (Standard)
(Superseded to BS-792023)

$159.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-697681

Piston Assembly (.020")
(Superseded to BS-792072)

$172.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-697683

Ring Set-Piston (Standard)

$74.99

$

In Stock, only 1 left!

0

26

Cub Cadet BS-697685

Ring Set-Piston (.020")

$74.99

$

In Stock, only 1 left!

0

27

Cub Cadet BS-690975

Lock-Piston Pin

$3.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-690229

Pin-Piston

$17.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-499583

Rod-Connecting

$37.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-690976

Screw (Connecting Rod)

$4.49

$

Usually ships in 2-12 days

0

45

Cub Cadet BS-690977

Tappet-Valve

$7.99

$

In Stock, only 2 left!

0

46

Cub Cadet BS-699748

Camshaft
(Superseded to BS-790562)

$

$

Not available

50

Cub Cadet BS-695241

Manifold-Intake
(Superseded to BS-595606)

$87.99

$

In Stock, Qty 5

0

51

Cub Cadet BS-690950

Gasket-Intake

Note: Included in Engine Gasket Set, Key. No. 358; Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977

$2.99

$

In Stock, Qty 19

0

53

Cub Cadet BS-690951

Stud (Carburetor)

$7.49

$

In Stock, only 3 left!

0

54

Cub Cadet BS-695240

Screw (Intake Manifold)
(Superseded to BS-699816)

$3.49

$

In Stock, only 2 left!

0

89

Cub Cadet BS-690283

Plug-Oil
(Superseded to BS-794903)

$5.49

$

In Stock, only 1 left!

0

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, only 3 left!

0

163

Cub Cadet BS-691001

Gasket-Air Cleaner

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key. No. 1095

$3.49

$

In Stock, Qty 9

0

188

Cub Cadet BS-690960

Screw (Control Bracket)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

212

Cub Cadet BS-695238

Link-Throttle

$7.99

$

In Stock, Qty 5

0

213

Cub Cadet BS-691021

Bracket-Choke Control

$10.99

$

In Stock, only 1 left!

0

216

Cub Cadet BS-691022

Link-Choke

$8.49

$

In Stock, only 2 left!

0

219

Cub Cadet BS-698231

Gear-Governor
(Superseded to BS-793338)

$27.99

$

In Stock, Qty 9

0

220

Cub Cadet BS-690412

Washer (Governor Lever)

$5.49

$

Usually ships in 2-12 days

0

222

Cub Cadet BS-698761

Bracket-Control
(Superseded to BS-592661)

$61.99

$

Usually ships in 2-12 days

0

239

Cub Cadet BS-491657

Switch-Oil Pressure
(Superseded to BS-491657S)

$31.99

$

In Stock, only 1 left!

0

250

Cub Cadet BS-690957

Retainer-Breather

$6.99

$

Usually ships in 2-12 days

0

252

Cub Cadet BS-690956

Collector-Oil
(Superseded to BS-794389)

$7.99

$

In Stock, only 1 left!

0

287

Cub Cadet BS-690960

Screw (Dipstick Tube)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

304

Cub Cadet BS-695277

Housing-Blower
(Superseded to BS-790692)

$159.99

$

Usually ships in 2-12 days

0

305

Cub Cadet BS-691005

Screw (Blower Housing)
(Superseded to BS-594618)

$3.99

$

In Stock, only 4 left!

0

445

Cub Cadet BS-698754

Filter-Air Cleaner Cartridge
(Superseded to BS-499486S)

$15.99

$

In Stock, Qty 20+

0

447

Cub Cadet BS-691003

Screw (Air Guide Cover)

$3.49

$

In Stock, only 2 left!

0

447A

Cub Cadet BS-690960

Screw (Air Guide Cover)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

467

Cub Cadet BS-691008

Knob, Air Cleaner

$13.99

$

In Stock, Qty 5

0

523

Cub Cadet BS-691036

Dipstick
(Superseded to BS-594528)

$18.99

$

In Stock, only 2 left!

0

524

Cub Cadet BS-691032

Seal-Dipstick Tube

$5.99

$

In Stock, Qty 8

0

525

Cub Cadet BS-691037

Tube-Dipstick

$

$

Not available

552

Cub Cadet BS-690552

Bushing-Governor Crank

$8.49

$

In Stock, Qty 10

0

615

Cub Cadet BS-698290

Retainer-Governor Shaft

$4.49

$

In Stock, only 1 left!

0

654

Cub Cadet BS-690958

Nut (Carburetor)

$3.49

$

In Stock, Qty 7

0

691

Cub Cadet BS-690657

Seal-Governor Shaft
(Superseded to BS-790574)

Note: Included in Engine Gasket Set, Key No. 358

$5.99

$

In Stock, Qty 7

0

703

Cub Cadet BS-691010

Clip

$6.99

$

Usually ships in 2-12 days

0

718

Cub Cadet BS-690959

Pin-Locating

$6.99

$

Usually ships in 2-12 days

0

729

Cub Cadet BS-694123

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

741

Cub Cadet BS-690980

Gear-Timing

$14.99

$

In Stock, only 1 left!

0

750

Cub Cadet BS-696999

Screw (Oil Pump Cover)

$29.99

$

Usually ships in 2-12 days

0

842

Cub Cadet BS-691031

Seal-Dipstick/Tube

Note: Included in Engine Gasket Set, Key No. 358

$5.49

$

In Stock, Qty 12

0

847

Cub Cadet BS-499602

Dipstick/Tube Assembly

$

$

Not available

855

Cub Cadet BS-691011

Adapter-Air

$45.99

$

Usually ships in 2-12 days

0

865

Cub Cadet BS-691012

Cover-Air Guide

$

$

Not available

865A

Cub Cadet BS-691014

Cover-Air Guide

$

$

Not available

865B

Cub Cadet BS-691015

Cover-Air Guide

$27.99

$

Usually ships in 2-12 days

0

868

Cub Cadet BS-690968

Seal-Valve

Note: Included in Engine Gasket Set, Key No. 358; Included in Valve Gasket Set, Key. No. 1095

$10.99

$

Usually ships in 2-12 days

0

929

Cub Cadet BS-695239

Screw (Choke Control Bracket)

$3.49

$

In Stock, only 3 left!

0

943

Cub Cadet BS-690589

Seal-O Ring (Oil Pump Cover)

Note: Included in Engine Gasket Set, Key No. 358

$8.99

$

Usually ships in 2-12 days

0

965

Cub Cadet BS-499613

Cover-Oil Pump

$13.99

$

Usually ships in 2-12 days

0

967

Cub Cadet BS-273638

Filter-Pre Cleaner
(Superseded to BS-273638S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-499788

Cover-Air Cleaner
(Superseded to BS-790692)

$159.99

$

Usually ships in 2-12 days

0

1013

Cub Cadet BS-690954

Nipple-Oil Filter

$7.99

$

In Stock, Qty 9

0

1017

Cub Cadet BS-690770

Screen-Oil Pump

$9.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-690103

Kit-Label

$

$

Not available

1022

Cub Cadet BS-690971

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1024

Cub Cadet BS-499054

Pump-Oil
(Superseded to BS-795259)

$32.99

$

In Stock, Qty 12

0

1026

Cub Cadet BS-690981

Rod-Push (Steel)
(Superseded to BS-597785)

$7.99

$

In Stock, Qty 20+

0

1026

Cub Cadet BS-690982

Rod-Push (Aluminum)

$7.99

$

In Stock, Qty 20+

0

1027

Cub Cadet BS-696854

Filter-Oil

$13.99

$

In Stock, Qty 20+

0

1035

Cub Cadet BS-691042

Shaft-Pump
(Superseded to BS-794644)

$35.99

$

In Stock, only 1 left!

0

1095

Cub Cadet BS-699735

Gasket Set-Valve
(Superseded to BS-797890)

$95.99

$

Usually ships in 2-12 days

0
