LT 1040 (13AX10CG710) - Cub Cadet 42" Lawn Tractor Command Engine - Crankshaft & Crankcase Parts Diagram

42" Lawn Tractor

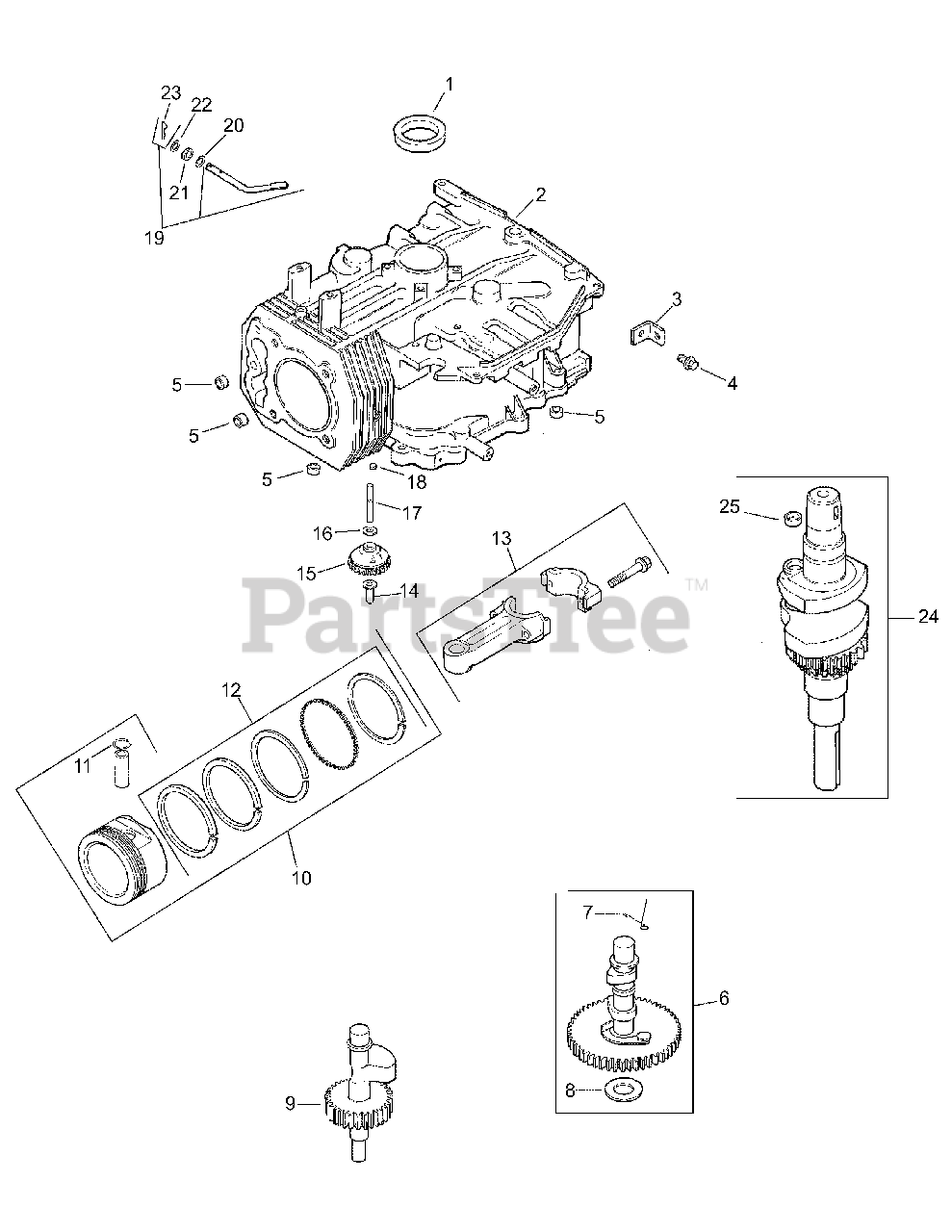

Command Engine - Crankshaft & Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-12-032-03

Seal, Crankshaft
(Superseded to KH-12-032-03-S)

$9.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-12-522-51

Crankcase (Short Block)

$

$

Not available

3

Cub Cadet KH-12-445-02

Strap, Lifting

$

$

Not available

4

Cub Cadet KH-M-839025-S

Screw, Hex. Flange M8 X 1.25 X 25

$2.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-380-13-S

Pin, Locating
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-12-755-49

Kit, Camshaft (Includes 7, 8)

$

$

Not available

7

Cub Cadet KH-12-089-31

Spring, Actuating
(Superseded to KH-12-089-37-S)

$2.49

$

In Stock, only 2 left!

0

8

Cub Cadet KH-12-422-08-S

Shim, Camshaft - Blue

Note: AR

$2.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-12-422-09-S

Shim, Camshaft - Red

Note: AR

$2.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-12-422-10-S

Shim, Camshaft - Yellow

$2.49

$

In Stock, only 1 left!

0

8

Cub Cadet KH-12-422-11-S

Shim, Camshaft - Green

Note: AR

$2.49

$

In Stock, only 1 left!

0

8

Cub Cadet KH-12-422-12-S

Shim, Camshaft - Gray

Note: AR

$2.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-12-422-13-S

Shim, Camshaft - Black

Note: AR

$2.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-12-422-07-S

Shim, Camshaft - White

Note: AR

$4.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-144-28-S

Shaft, Balance

$109.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-874-07

Piston w/ Ring Set (Std.) (Includes 11, 12)

$

$

Not available

10

Cub Cadet KH-12-874-08

Piston w/ Ring Set (.25)

$

$

Not available

10

Cub Cadet KH-12-874-09

Piston w/ Ring Set (.50)

$

$

Not available

10

Cub Cadet KH-12-874-11-S

Piston w/ Ring Set (.08)

$

$

Not available

11

Cub Cadet KH-12-018-02

Retainer, Piston Pin

$

$

Not available

12

Cub Cadet KH-12-108-07-S

Ring Set (Std. & .08)

$82.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-12-108-08

Ring Set (.25)

$

$

Not available

12

Cub Cadet KH-12-108-09

Ring Set (.50)

$

$

Not available

13

Cub Cadet KH-12-067-11-S

Connecting Rod (Std.)

$80.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-12-067-12-S

Connecting Rod (Std.)

$73.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

15

Cub Cadet KH-12-043-05

Gear, Governor

$

$

Not available

16

Cub Cadet KH-M-631005

Washer, Plain 6 Mm

$

$

Not available

17

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

18

Cub Cadet KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, Qty 9

0

19

Cub Cadet KH-12-755-64

Kit, Governor Cross Shaft w/clip (Incl. 23)

$

$

Not available

20

Cub Cadet KH-X-25-102-S

Washer, Plain 1/4"

$2.49

$

In Stock, Qty 10

0

21

Cub Cadet KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

22

Cub Cadet KH-M-631015

Washer, Plain 6 Mm
(Superseded to KH-M-631015-S)

$2.49

$

In Stock, Qty 10

0

23

Cub Cadet KH-12-154-05-S

Clip, Hitch Pin

$2.49

$

Usually ships in 3-6 days

0

24

Cub Cadet KH-12-014-57-S

Crankshaft (Includes 25)
(Superseded to KH-12-014-61-S)

$430.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-25-139-27

Plug, Cup

$

$

Currently unavailable

Cub Cadet KH-PA-27536

Engine Complete

Note: not shown

$

$

Not available
