LT 1040 (13AX10CG710) - Cub Cadet 42" Lawn Tractor Command Engine - Ignition & Electric Starter Parts Diagram

42" Lawn Tractor

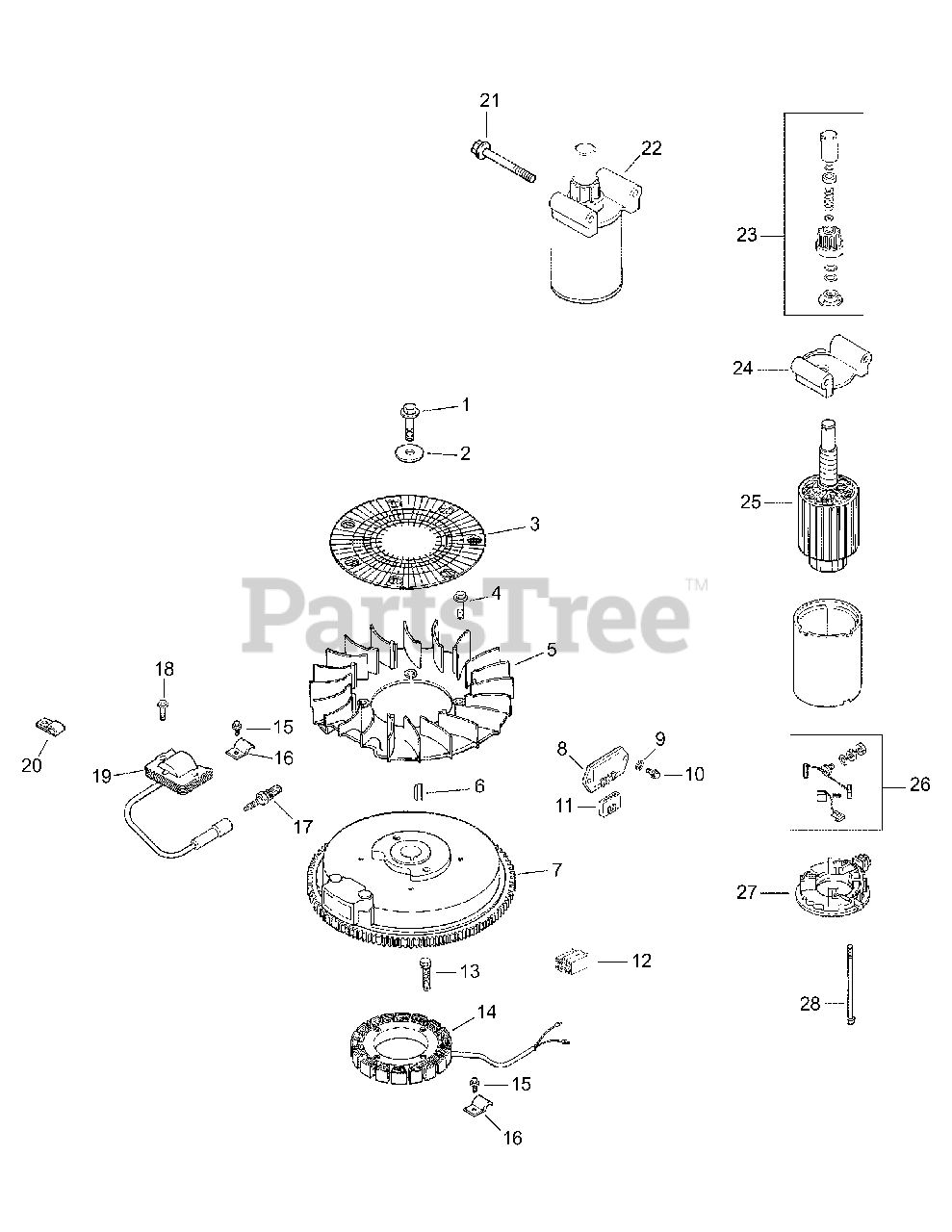

Command Engine - Ignition & Electric Starter Parts Diagram

  • Title

1

Cub Cadet KH-12-086-14

Screw, Hex. Flange M10 x 1.5 x 46
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, only 1 left!

0

2

Cub Cadet KH-12-468-03

Washer, Plain 3/8"

$

$

Not available

3

Cub Cadet KH-24-162-03

Screen, Grass

$

$

Not available

4

Cub Cadet KH-25-086-47

Bolt, Shoulder M6 x 1.0 x 16

$

$

Not available

5

Cub Cadet KH-12-157-06-S

Fan

$

$

Not available

6

Cub Cadet KH-X-42-15

Key

$

$

Not available

7

Cub Cadet KH-12-025-15

Flywheel
(Superseded to KH-12-025-16-S)

$327.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-41-403-09

Rectifier-regulator
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-X-22-11

Washer, Lock 1/4

$

$

Not available

10

Cub Cadet KH-M-639016-S

Screw, Hex. Flange M6 x 1.0 x 16

$2.49

$

In Stock, only 3 left!

0

11

Cub Cadet KH-236602-S

Connector, Rectifier-regulator (3 Contact)
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, Qty 12

0

12

Cub Cadet KH-41-155-02-S

Connector (4 Contact)

$2.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-M-548025-S

Screw, Hex. Cap M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-237878-S

Kit, Stator (Includes Terminal 25 452 01-S)

$

$

Currently unavailable

15

Cub Cadet KH-M-545010

Screw, Hex. Flange M5 x 0.8 x 10
(Superseded to KH-M-0545010)

$

$

Not available

16

Cub Cadet KH-X-728-1

Clip

$

$

Not available

17

Cub Cadet KH-12-132-02

Spark Plug
(Superseded to 759-3336)

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet KH-M-545020-S

Screw, Hex. Flange M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

19

Cub Cadet KH-12-584-04

Module, Ignition

$32.99

$

In Stock, Qty 20+

0

20

Cub Cadet KH-12-154-06

Clip

$

$

Currently unavailable

21

Cub Cadet KH-M-839070-S

Screw, Hex. Flange M8 x 1.25 x 70

$8.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KH-12-098-22-S

Starter Assembly (Includes 3-8)

$274.99

$

In Stock, only 3 left!

0

23

Cub Cadet KH-12-755-53

Kit, Drive

$

$

Not available

24

Cub Cadet KH-12-227-19-S

Cap, Drive End

$

$

Not available

25

Cub Cadet N/A

Armature

Note: Order KH-12-098-22-S Starter Assembly

$

$

Currently unavailable

26

Cub Cadet KH-12-221-01-S

Brush Assembly

$

$

Not available

27

Cub Cadet KH-12-227-13-S

Commutator, End Cap

$

$

Not available

28

Cub Cadet KH-12-211-01-S

Bolt, Thru

$

$

Not available

Cub Cadet KH-25-452-01-S

Terminal

Note: Not shown

$5.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-5

Washer, Plain

Note: Not shown

$

$

Not available

Cub Cadet KH-12-176-38-S

Harness, Wiring

Note: Not shown

$43.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-518-01

Lead, White

Note: (19" - 18 Guage Fully Insulated Push On Tab And Uninsulated Push On Terminals)

$

$

Not available

Cub Cadet KH-24-518-12-S

Lead, Black

Note: (6" - 12 Guage - Insulated Grip Barrel Eyelet Terminals)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-518-05

Lead, Black

Note: (5" - 14 Guage -uninsulated Push On Tab Terminals)

$

$

Not available
