LT 1040 (13BX10CG710) - Cub Cadet 42" Lawn Tractor Fender Parts Diagram

42" Lawn Tractor

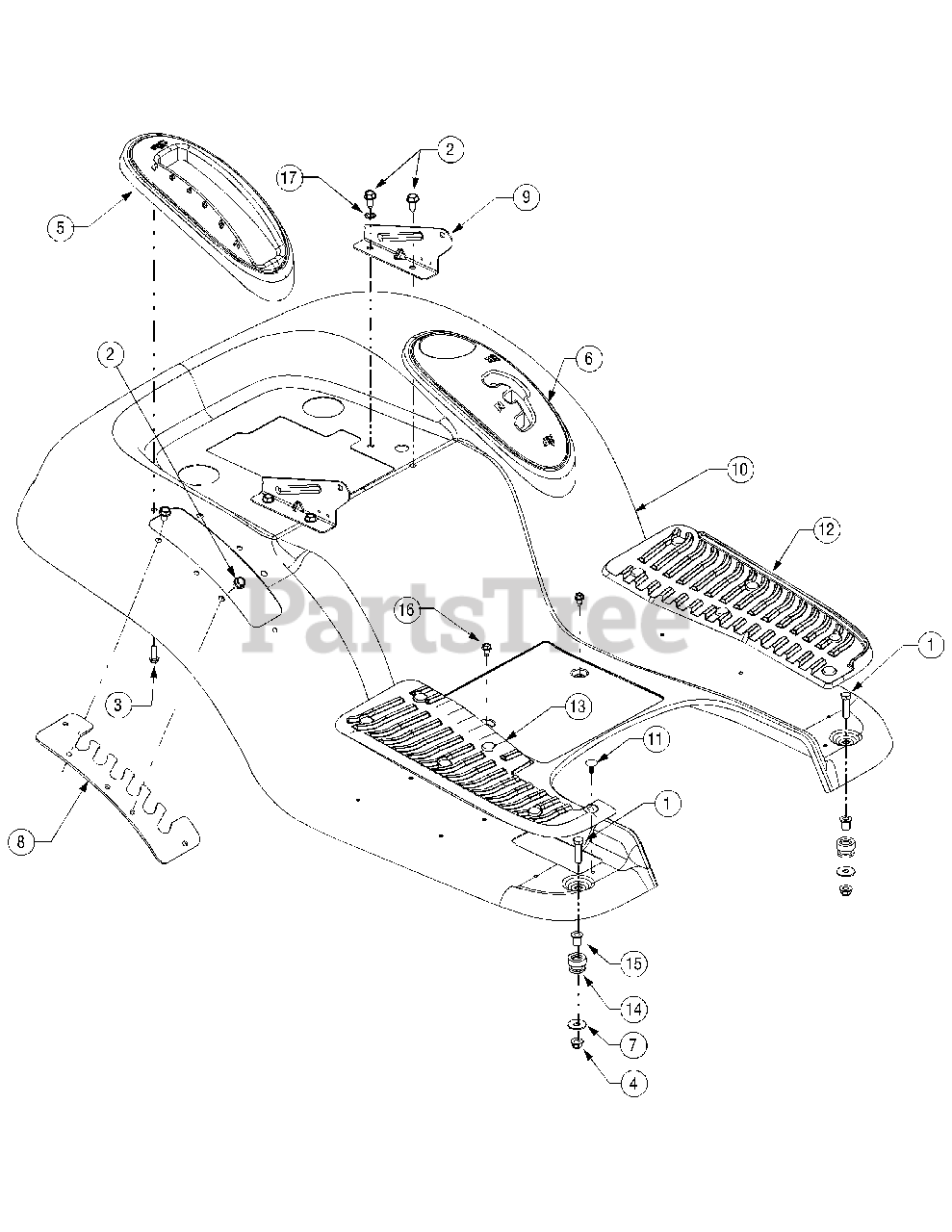

Fender Parts Diagram

  • Title

1

Cub Cadet 710-0528

Screw, 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0726

Screw, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0895

Screw, 1/4-15, 0.750

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04063

Nut, Nylon Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 731-1990

Cover, Lift Lever
(Superseded to 731-06795)

$25.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 731-2104C

Cover, Cup Holder
(Superseded to 931-2104C)

$37.99

$

In Stock, only 2 left!

0

7

Cub Cadet 736-3078

Washer, Flat, .349 x 1.00 x .063

$4.99

$

In Stock, Qty 5

0

8

Cub Cadet 783-0677B

Bracket, Lift, Adjustment

Variations

783-0677B-0637

Cub Cadet 783-0677B-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

783-0677B-4008

Cub Cadet 783-0677B-4008

BRACKET:LIFT:ADJ - WINE RED (4008)

$

$

Not available

783-0677B-4015

Cub Cadet 783-0677B-4015

BRACKET:LIFT:ADJ - FIRE RED (4015)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 783-1489A

Bracket, Seat, Mount
(Superseded to 783-1489C)

Variations

783-1489A-0637

Cub Cadet 783-1489A-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 3 left!

0

783-1489A-4008

Cub Cadet 783-1489A-4008

Seat Mounting Bracket - WINE RED (4008)

$24.99

$

In Stock, only 3 left!

0

$20.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 783-04333A

Fender

Variations

783-04333A-0606

Cub Cadet 783-04333A-0606

FENDER - 4 STYLE - MAJESTIC ORANGE (0606)

$

$

Not available

783-04333A-0638

Cub Cadet 783-04333A-0638

FENDER - 4 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

783-04333A-0650

Cub Cadet 783-04333A-0650

FENDER - 4 STYLE - RED METALLIC (0650)

$

$

Not available

783-04333A-0665

Cub Cadet 783-04333A-0665

FENDER - 4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

783-04333A-0709

Cub Cadet 783-04333A-0709

FENDER - 4 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

783-04333A-0716

Cub Cadet 783-04333A-0716

FENDER - 4 STYLE - CUB YELLOW-99 (0716)

$

$

Not available

783-04333A-4008

Cub Cadet 783-04333A-4008

FENDER - 4 STYLE - WINE RED (4008)

$

$

Not available

$332.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 726-3046

Clip, Ratchet, .250 Dia

$4.49

$

In Stock, Qty 13

0

12

Cub Cadet 735-0697A

Pad, Foot, LH

$29.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 735-0698B

Pad, Foot, RH

$

$

Not available

14

Cub Cadet 735-0690

Grommet

$12.99

$

In Stock, only 1 left!

0

15

Cub Cadet 750-3310

Flange Spacer, .3125 x .4375 x .625

$5.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0607

Washer, Lock, 5/16 External Tooth

$4.49

$

In Stock, Qty 20+

0
