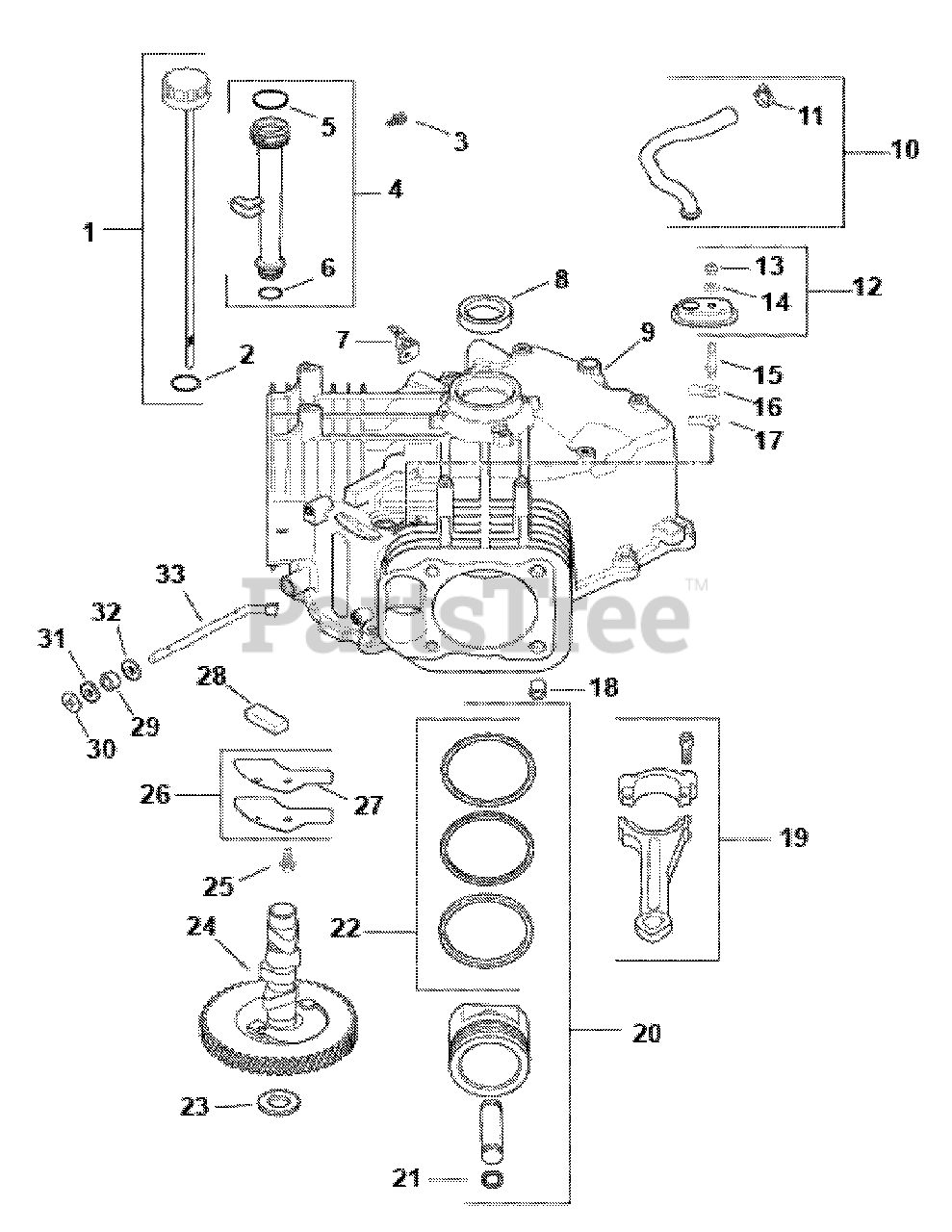

LT 1045 (13BP11CH709) - Cub Cadet 46" Lawn Tractor (2007 & Before) Kohler SV710-0019 Crankcase Parts Diagram

46" Lawn Tractor

Kohler SV710-0019 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-32-038-01-S

Dipstick Kit
(Superseded to KH-32-755-04-S)

$

$

Not available

2

Cub Cadet KH-25-153-02-S

O-Ring

$3.49

$

In Stock, Qty 17

0

3

Cub Cadet KH-M-545016-S

Hex Flange Screw
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-12-123-04

Oil Fill Tube
(Superseded to KH-32-755-04-S)

$

$

Not available

5

Cub Cadet KH-12-153-02-S

Upper Oil Fill Tube O-Ring

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-12-153-01-S

Lower Oil Fill Tube O-Ring

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-24-126-19

Oil Fill Tube Bracket
(Superseded to KH-24-126-243-S)

$11.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-032-01-S

Oil Seal
(Superseded to KH-24-032-19-S)

$9.49

$

In Stock, Qty 20+

0

9

Cub Cadet N/A

Use Shortblock

Note: see below

$

$

Currently unavailable

10

Cub Cadet KH-32-326-04-S

Breather Hose / With Clamp
(Superseded to KH-32-326-06-S)

$24.99

$

In Stock, Qty 8

0

11

Cub Cadet KH-25-237-14-S

Hose Clamp
(Superseded to KH-25-237-31-S)

$6.49

$

In Stock, Qty 16

0

12

Cub Cadet KH-32-081-02-S

Breather Housing / Washer Nut

$2.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-M-547050-S

Lock Nut

$2.49

$

In Stock, Qty 20+

0

14

Cub Cadet KH-32-468-01-S

Sealing Washer

$2.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-32-072-02-S

Breather Cover Stud

$

$

Not available

16

Cub Cadet KH-24-018-04

Breather Reed Retainer

$

$

Not available

17

Cub Cadet KH-12-402-02

Breather Reed

$

$

Not available

18

Cub Cadet KH-24-380-16-S

Locating Pin

$4.49

$

In Stock, Qty 7

0

19

Cub Cadet KH-24-067-16-S

Connecting Rod (Std.)
(Superseded to KH-25-067-04-S)

$83.99

$

In Stock, Qty 20+

0

20

Cub Cadet KH-32-874-06-S

Piston With Ring Set (Std.)
(Superseded to KH-25-874-13-S)

$301.99

$

In Stock, Qty 6

0

21

Cub Cadet KH-24-018-01-S

Piston Pin Retainer

$3.49

$

In Stock, Qty 14

0

22

Cub Cadet KH-24-108-11-S

Ring Set (Std.)
(Superseded to KH-24-108-22-S)

$

$

Not available

23

Cub Cadet KH-12-422-07-S

Camshaft Shim (White)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-08-S

Camshaft Shim (Blue)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-09-S

Camshaft Shim (Red)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-10-S

Camshaft Shim (Yellow)

$2.49

$

In Stock, Qty 11

0

Cub Cadet KH-12-422-11-S

Camshaft Shim (Green)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-12-S

Camshaft Shim (Gray)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-13-S

Camshaft Shim (Black)

$2.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-32-012-01-S

Camshaft Kit

$136.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-M-645016-S

Hex Flange Screw

$4.99

$

In Stock, Qty 17

0

26

Cub Cadet KH-32-096-04-S

Breather Cover

$2.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-32-041-01-S

Breather Cover Gasket

$

$

Not available

28

Cub Cadet KH-32-050-01-S

Breather Filter

$2.99

$

In Stock, only 2 left!

0

29

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$4.49

$

In Stock, Qty 9

0

30

Cub Cadet KH-24-018-09-S

Retainer Ring

$2.49

$

In Stock, Qty 19

0

31

Cub Cadet KH-M-931010-S

Plain Washer 8 mm

$2.49

$

In Stock, Qty 8

0

32

Cub Cadet KH-24-468-15-S

Flat Washer 1/4"

$2.49

$

In Stock, only 2 left!

0

33

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$58.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-113-39-S

Clear Laminate Decal, Engine
(Superseded to KH-25-113-79-S)

Note: not shown

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-SV710-0019

Complete Engine

Note: not shown

$

$

Not available

Cub Cadet KH-32-522-03

Short Block, Engine
(Superseded to KH-32-522-07)

Note: not shown

$

$

Not available

Cub Cadet KH-32-755-01-S

Overhaul Kit, Gaskets
(Superseded to KH-32-755-09-S)

Note: not shown

$103.99

$

In Stock, only 4 left!

0
