LT 1046 (13AP11CH710) - Cub Cadet 46" Lawn Tractor (2007 & Before) Steering 1I145H & after Parts Diagram

46" Lawn Tractor

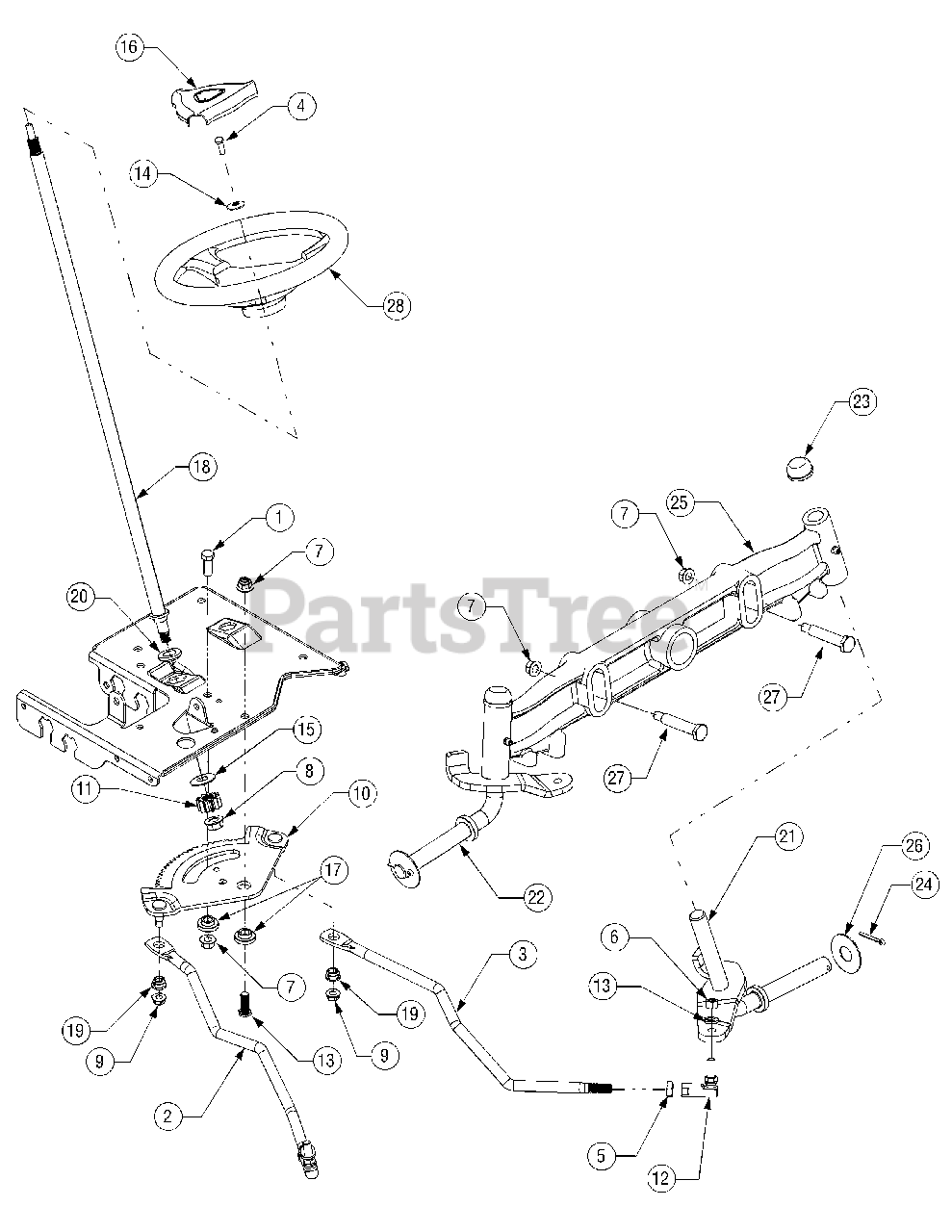

Steering 1I145H & after Parts Diagram

  • Title

1

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 711-1408

Link, Drag, RH

$

$

Not available

3

Cub Cadet 711-1409A

Link, Drag, LH

$

$

Not available

4

Cub Cadet 7101260

HEX SCREW WASH
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0214

Nut, Hex, 3/8-24, Gr5

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0459

Nut, Flange Lock, 7/16-20

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$74.99

$

In Stock, Qty 20+

0

11

Cub Cadet 717-1554

Gear, Pinion, Steering

$11.99

$

In Stock, Qty 20+

0

12

Cub Cadet 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$25.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-04095

Hex Cap Screw, 3/8-16, 1.00

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 14

0

15

Cub Cadet 736-3084

Washer, Flat, .510 x 1.120 x .060

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 731-04532

Cover, Steering Wheel
(Superseded to 731-04532B)

$25.99

$

In Stock, Qty 9

0

17

Cub Cadet 738-04154

Spacer, Shoulder, 1.00 x .38 x .38

$5.99

$

In Stock, Qty 20+

0

18

Cub Cadet 759-04186

Shaft, Steering, .625 OD x 25.00 Lg

$68.99

$

In Stock, Qty 5

0

19

Cub Cadet 741-0475

Bushing, Plastic, .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 741-0656A

Bearing, Hex Flange, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet 638-04003

Axle Ass'y, LH .750 Dia
(Superseded to 638-04003AP)

Note: (LT1045, LT 1046 & LT 1050) use with ref 23

$

$

Not available

21

Cub Cadet 638-04006

Axle Ass'y, LH .750 Dia
(Superseded to 938-04006A-0637)

Note: (LT1042) use with ref 23

$58.99

$

In Stock, only 2 left!

0

22

Cub Cadet 638-04004

Axle Ass'y, RH .750 Dia
(Superseded to 938-04004A)

Note: (LT1045, LT 1046 & LT 1050) use with ref 23

$75.99

$

In Stock, Qty 17

0

22

Cub Cadet 638-04005

Axle Ass'y, RH .750 Dia
(Superseded to 938-04005A-0637)

Note: (LT1042) use with ref 23

$58.99

$

In Stock, only 2 left!

0

23

Cub Cadet 726-0341

Push Cap, .75

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 714-04039

Pin, Cot, 5/32, 1.25
(Superseded to 714-0162)

$5.49

$

In Stock, Qty 20+

0

25

Cub Cadet 719-04105

Axle, Pivot, Cast .750 Dia
(Superseded to 919-04177E)

$263.99

$

In Stock, only 1 left!

0

25

Cub Cadet 7373000

GREASE FITTING
(Superseded to 937-3000)

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0866

Washer, Flat, .755 x 1.92 x.060

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 738-1011A

Screw, Shoulder, .500 x 2.230, 3/8-16

$8.99

$

In Stock, Qty 9

0

28

Cub Cadet 631-04008A

Wheel, Steering, Three Spoke
(Superseded to 631-04008B)

$100.99

$

In Stock, only 2 left!

0
