LT 1050 (13AP11CP756) - Cub Cadet 50" Lawn Tractor (2007 & Before) Power Take-Off (PTO) System Parts Diagram

50" Lawn Tractor

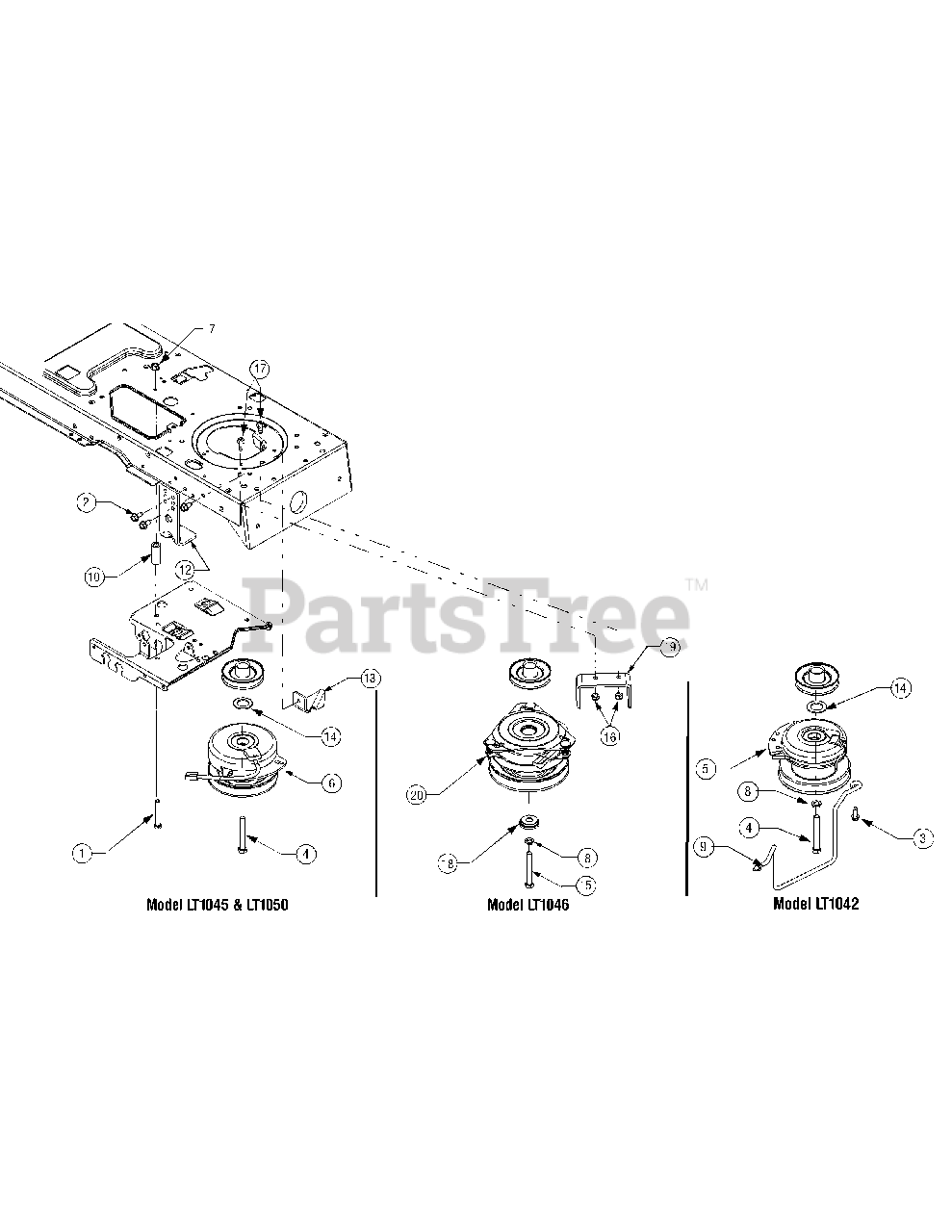

Power Take-Off (PTO) System Parts Diagram

  • Title

1

Cub Cadet 710-0859

Screw, 3/8-16 x 2.5 GR5

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0726

Screw, 5/16-12, .75

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0650

Screw, 5/16-18, .875

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3157

Screw, Hex Cap, 7/16-20 x 3.25 GR5
(Superseded to 710-3157A)

$11.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04379A

Screw, Hex Cap, Lock, 7/16-20 x 3.5 GR5

Note: use with Ref 8

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet 717-04163

Clutch, PTO
(Superseded to 917-04163A)

Note: (Model LT1042)

$493.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 717-04174A

Clutch, PTO
(Superseded to 917-04174A)

Note: (Model LT1045, LT1046 & LT1050)

$719.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-04065

Nut, Hx. Nylon Lock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0171

Washer, Lock, 7/16, Regular Duty

$4.99

$

In Stock, Qty 11

0

9

Cub Cadet 747-04307

Rod, Belt Keeper
(Superseded to 747-04857)

Note: (Model LT1042, LT1045, LT1046 If equipped)

$23.99

$

In Stock, Qty 20+

0

10

Cub Cadet 748-0415B

Spacer, 3/8 x 1.54

$7.49

$

In Stock, Qty 10

0

11

Cub Cadet 736-0277

Washer, Flat, 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 783-04467

Deck Stop

Variations

Cub Cadet 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 783-04419B

Bracket, Clutch
(Superseded to 783-04419B-0637)

Variations

Cub Cadet 783-04419B-0637

Clutch Bracket - POWDER BLACK (0637)

$15.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04419B-4008

Clutch Bracket - WINE RED (4008)

$15.99

$

In Stock, only 1 left!

0

$15.99

$

In Stock, only 1 left!

0

14

Cub Cadet 736-0277

Washer, Flat, 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0561

Screw, Hex Cap, 7/16-20 x 2.50 GR5

$11.99

$

In Stock, only 1 left!

0

16

Cub Cadet 712-0429

Nut, Lock, Hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3025

Screw, Hex Cap, 5/16-18 x.625 GR5

$4.49

$

In Stock, Qty 7

0

18

Cub Cadet 738-0785

Shoulder Spacer, 1.38 x.445 x.36
(Superseded to 938-0785)

$27.99

$

In Stock, only 4 left!

0

19

Cub Cadet 783-1003

Bracket, Clutch
(Superseded to 783-1003-0637)

Note: (Model LT1046)

Variations

Cub Cadet 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

20

Cub Cadet 717-04080

Clutch, PTO
(Superseded to 917-04080)

Note: (Model LT1046)

$592.99

$

Usually ships in 3-6 days

0
