LT-11 (137-336-190) - White Outdoor 32" Lawn Tractor (1987)

32" Lawn Tractor

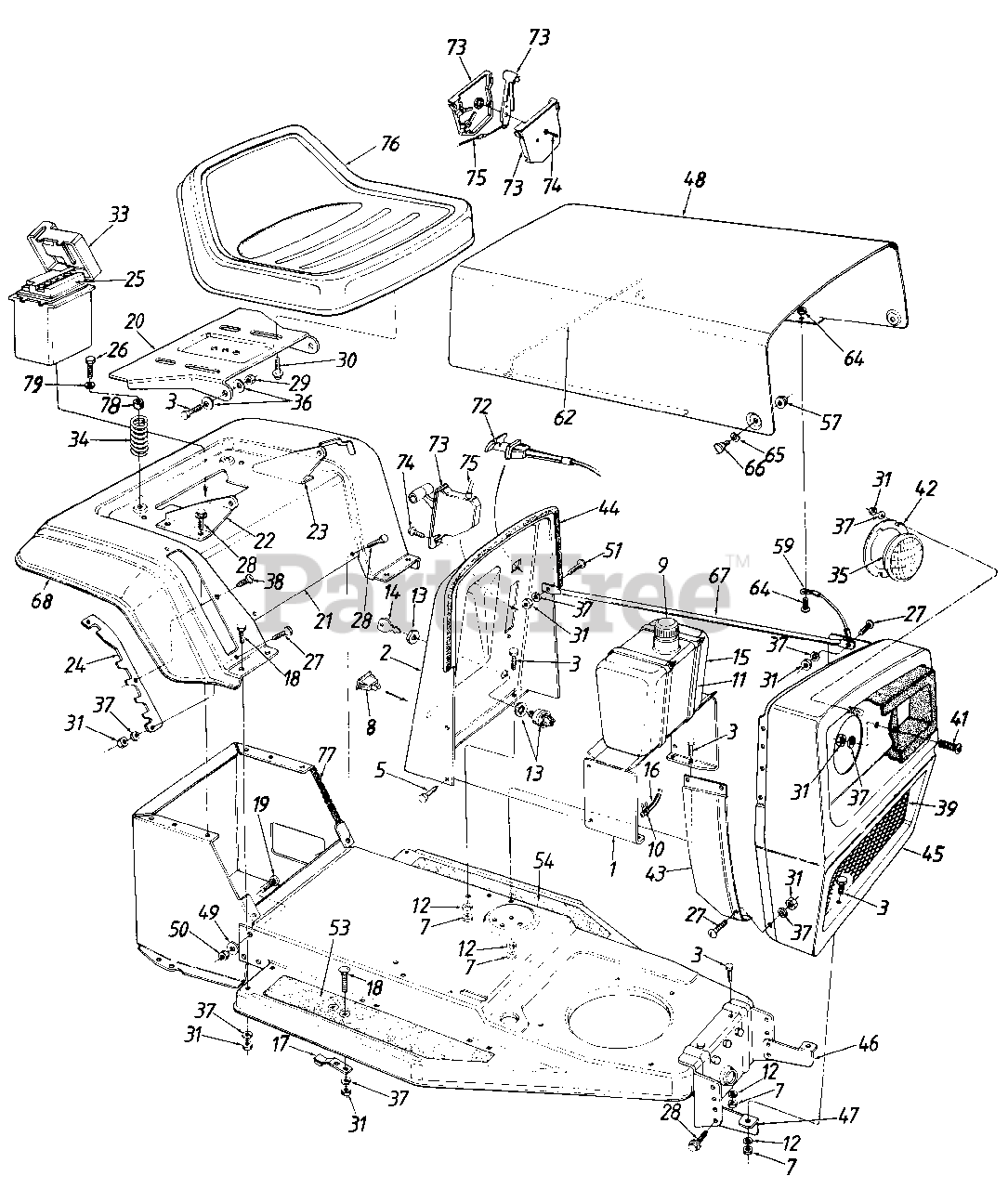

LT-11 (137-336-190) - White Outdoor 32" Lawn Tractor (1987) > Parts Diagrams (8) > Body Assembly

  • Title
16655

1

Dash Panel Support Brkt.

Part# 16655

OEM Warranty Repair Part for White Outdoor

Not available

16656

2

Dash Panel

Part# 16656

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available PANEL-DASH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

3

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0776

5

Hex AB-Tap Scr. 1/4 x .62"

Part# 710-0776 (Superseded to 710-0896)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

712-0267

7

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

725-0634

8

Light Switch

Part# 725-0634 (Superseded to 925-0634)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.81

723-0333

9

Gas Gauge

Part# 723-0333 (Superseded to 923-0333)

OEM Warranty Repair Part for White Outdoor

Not available

726-0207

10

Hose Clamp

Part# 726-0207

OEM Warranty Repair Part for White Outdoor

Not available

726-0209

11

Cable Tie

Part# 726-0209 (Superseded to 726-0230)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.74

736-0119

12

L-Wash. 5116" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

725-0267

13

Ignition Switch

Part# 725-0267 (Superseded to 925-0267B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.44

725-0201

14

Ignition Key

Part# 725-0201 (Superseded to 925-0201)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.71

751-0172

15

Fuel Tank

Part# 751-0172 (Superseded to 753-0503)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $88.76

751-0173

16

Ga ne

Part# 751-0173 (Superseded to 751-10349-16)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.05

761-0157

17

Blade Brake Ass'y.

Part# 761-0157 (Superseded to 961-0168D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.24

710-0134

18

Carriage Bolt 1/4-20 x .62"

Part# 710-0134

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0793

19

Ribbed Neck Bolt 3/8-24 x .8"

Part# 710-0793

OEM Warranty Repair Part for White Outdoor

Not available

15607

20

Seat Pivot Brkt.

Part# 15607 (Superseded to 783-0039A)

OEM Warranty Repair Part for White Outdoor

Not available

16660

21

Rear Fender

Part# 16660

Not available

16664

22

Seat Hinge Support Brkt.-R.H.

Part# 16664

Not available

16665

23

Seat Hinge Support Brkt.-L.H.

Part# 16665

Not available

17133

24

Deck Lift Index Brkt.

Part# 17133

OEM Warranty Repair Part for White Outdoor

Not available

725-0514

25

Battery

Part# 725-0514 (Superseded to 753-0607)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $128.58

710-0602

26

Hex Self-Tap Screw 5/6-18 x 1" Lg.

Part# 710-0602

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

710-0255

27

Truss Mach. Scr. 1/4-20 x .75" Lg.

Part# 710-0255 (Superseded to 710-0924)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

710-0726

28

Hex AB-Tap Scr. 5/16 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

712-0158

29

Hex L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.10

710-0623

30

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

Part# 710-0623

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.88

712-0287

31

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

731-0871

33

Battery Box w/Cover

Part# 731-0871 (Superseded to 731-0871B)

OEM Warranty Repair Part for White Outdoor

Not available

732-0548

34

Compression Spring

Part# 732-0548

OEM Warranty Repair Part for White Outdoor

Not available

725-0222

35

Headlight

Part# 725-0222 (Superseded to 925-0222)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $39.07

736-0242

36

Bell-Wash. 5/16" I.D.

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

736-0329

37

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-0224

38

Hex Wash. Hd. Self-Tap Scr. #10 x .5" Lg.

Part# 710-0224 (Superseded to 910-0224)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.36

731-0881

39

Grille Insert

Part# 731-0881

OEM Warranty Repair Part for White Outdoor

Not available

731-0465

Bezel

Part# 731-0465

OEM Warranty Repair Part for White Outdoor

Not available

710-0346

41

C-Sunk Mach. Scr. 1/4-20 x 1.5"

Part# 710-0346

OEM Warranty Repair Part for White Outdoor

Not available

09960

42

Headlight Retainer

Part# 09960

OEM Warranty Repair Part for White Outdoor

Not available

14748

43

Side Panel-R.H.

Part# 14748

Not available

14749

Side Panel-L.H.

Part# 14749

Note: (Not Shown)

Not available

731-0511

44

Trim Strip 26l/2n Lg.

Part# 731-0511

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.61

14787

45

Grille

Part# 14787

OEM Warranty Repair Part for White Outdoor

Not available

17143

46

Grille Mtg. Brkt.-L.H.

Part# 17143

Not available

17144

47

Grille Mtg. Brkt.-R.H.

Part# 17144

OEM Warranty Repair Part for White Outdoor

Not available

16681

48

Hood

Part# 16681

OEM Warranty Repair Part for White Outdoor

Variations

CUB BEIGE (0499)

No Longer Available HOOD-86 CLASSIC

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

No Longer Available HOOD-86 CLASSIC

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available HOOD-86 CLASSIC

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

746-0217

49

L-Wash. 3/8" H.D.

Part# 746-0217

OEM Warranty Repair Part for White Outdoor

Not available

712-0241

50

Hex L-Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

710-0258

51

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

Part# 710-0473

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

723-0308

53

Foot Pad-R.H.

Part# 723-0308

OEM Warranty Repair Part for White Outdoor

Not available

723-0309

54

Foot Pad-L.H.

Part# 723-0309 (Superseded to 723-0309B)

OEM Warranty Repair Part for White Outdoor

Not available

712-0380

57

Lock Nut 1/4-28 Thd.

Part# 712-0380

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.60

722-0157

Foam Strip

Part# 722-0157

Note: (Optional)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.84

723-0302

59

Hood Stop

Part# 723-0302

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.24

732-0414

62

Hood Spring

Part# 732-0414

OEM Warranty Repair Part for White Outdoor

Not available

712-0272

64

Hex Sems Nut #10-24 Thd.

Part# 712-0272

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.63

736-0413

65

Spr. Wash. .39" I.D. x .62" O.D.

Part# 736-0413

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

738-0724

66

Shld. Bolt

Part# 738-0724 (Superseded to 938-0952A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.57

749-0722

67

Grille Support

Part# 749-0722 (Superseded to 749-0722B-0637)

OEM Warranty Repair Part for White Outdoor

Not available

731-0511

68

Trim Strip 79" Lg.

Part# 731-0511

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.61

746-0617

72

Choke Control

Part# 746-0617

OEM Warranty Repair Part for White Outdoor

Not available

831-0823

73

Throttle Control Box

Part# 831-0823 (Superseded to 831-0823A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.59

710-0779

74

Truss AB-Tap Scr. #10 x .5"

Part# 710-0779 (Superseded to 710-0779A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

746-0501

75

Throttle Wire

Part# 746-0501

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.24

757-0343

76

Seat Asse-nbly

Part# 757-0343

Not available

731-0511

77

Trim Strip 5" Lg.

Part# 731-0511

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.61

735-0126

78

Rubber Washer

Part# 735-0126 (Superseded to 735-0126A)

OEM Warranty Repair Part for White Outdoor

Not available

736-0159

79

Flat Wash. .344" I.D. x .88" O.D.

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.76
