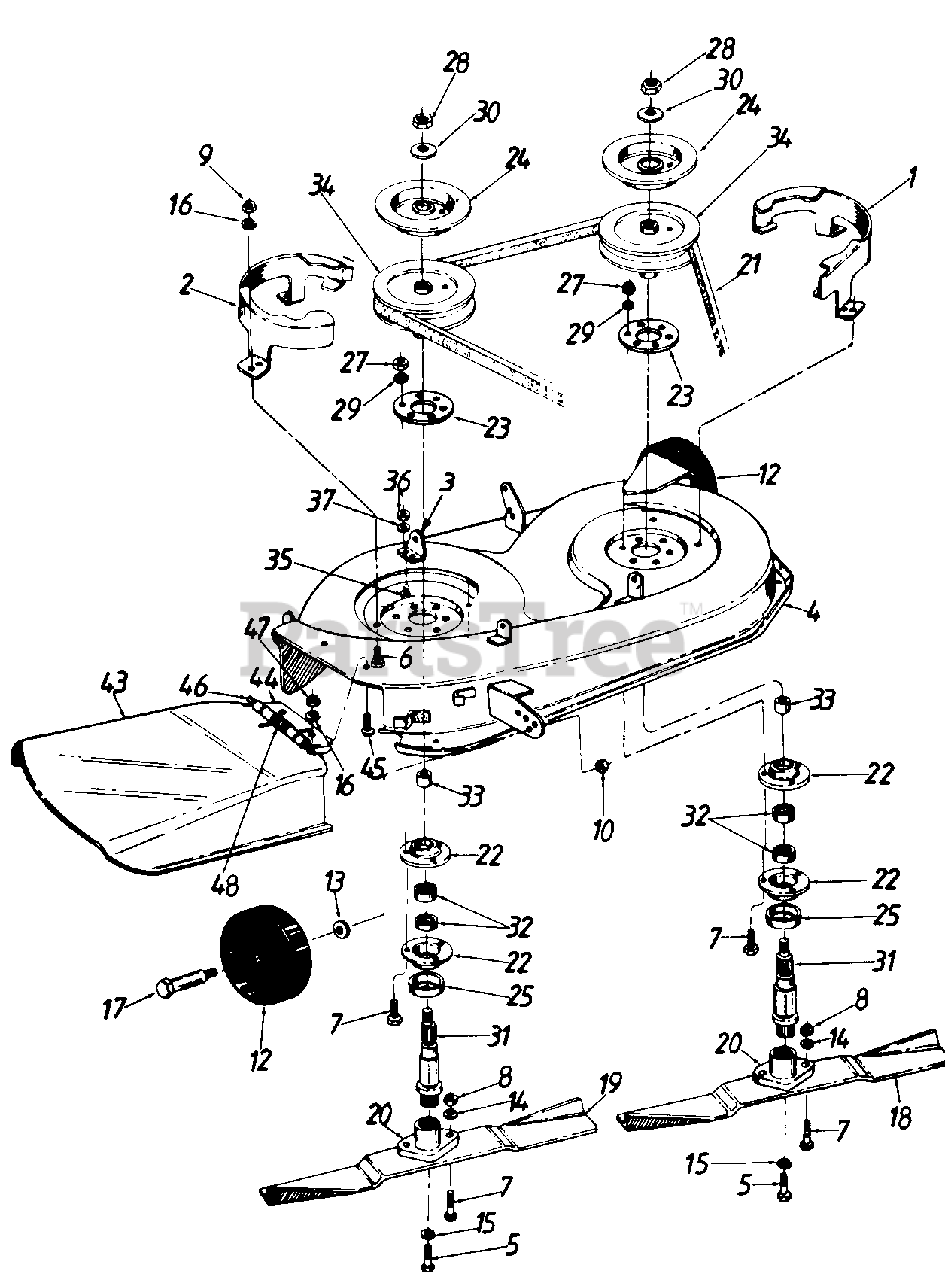

LT-11 (137-336-190) - White Outdoor 32" Lawn Tractor (1987) > Parts Diagrams (8) > Deck Assembly

  • Title
16607

1

Belt Guard Deck-L.H.

Part# 16607

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

GUARD-BELT-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

16608

2

Belt Guard Deck-R.H.

Part# 16608

OEM Warranty Repair Part for White Outdoor

Not available

16666

3

Rear Deck Brkt.-R.H.

Part# 16666

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRACKET-DECK RR-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

17101

4

32" Deck Ass'y.

Part# 17101

Not available

17134

32" Deck Ass'y. Comp.

Part# 17134

Note: (Service Only)

Not available

710-0152

5

Hex Bolt 3/8-24 x 1.0" Lg.

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

710-0195

6

Hex Bolt 1/4-28 x .62" Lg.

Part# 710-0195 (Superseded to 910-0195)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.34

710-0888

7

Hex Bolt 5/16-24 x 1.0" Lg.

Part# 710-0888

Note: (Special)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

712-0123

8

Hex Nut 5/16-24 Thd.

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

712-0138

9

Hex Nut 1/4-28 Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.44

712-0181

10

Hex L-Nut 3/8-16 Thd.

Part# 712-0181 (Superseded to 912-0181)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

734-0973

12

Deck Wheel

Part# 734-0973

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.88

736-0105

13

Bell-Wash. .380" I.D. x .88

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0119

14

L-Wash. 5116" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0217

15

L-Wash. 318" I.D. H.D.

Part# 736-0217 (Superseded to 936-0217)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0270

16

Bell-Wash. .265" I.D. x .75

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

738-0373

17

Shld. Bolt .498" Dia. x 1.53 Lg.

Part# 738-0373 (Superseded to 938-0373)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.18

742-0477

18

L.H High-Lift Blade

Part# 742-0477

OEM Warranty Repair Part for White Outdoor

Not available

742-0480

19

R.H. High-Lift Blade

Part# 742-0480

OEM Warranty Repair Part for White Outdoor

Not available

748-0300

20

Blade Adapter

Part# 748-0300

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.48

754-0342

21

V-Belt

Part# 754-0342 (Superseded to 954-0355)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $44.04

08253

22

Bearing Housing

Part# 08253 (Superseded to 08253B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.19

09164

23

Reinforcement Plate

Part# 09164 (Superseded to 09164A-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $21.77

09322

24

Brake Disc

Part# 09322

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.82

13703

25

Bearing Shield

Part# 13703

OEM Warranty Repair Part for White Outdoor

Not available

712-0123

27

Hex Nut 5/16-24 Thd.

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

712-0318

28

Hex Jam Nut 5/8-18 Thd.

Part# 712-0318

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.44

736-0119

29

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0158

30

L-Wash. 5/8" I.D.

Part# 736-0158 (Superseded to 936-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

738-0707

31

Blade Spindle

Part# 738-0707 (Superseded to 938-0707A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.92

741-0919

32

Ball Bearing

Part# 741-0919 (Superseded to 941-0919B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.76

750-0456

33

Spacer

Part# 750-0456 (Superseded to 950-0456)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

756-0486

34

5" Dia. Pulley

Part# 756-0486

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $37.20

710-0258

35

Hex Scr. 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

712-0287

36

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0329

37

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

17136

43

Chute Ass'y.

Part# 17136 (Superseded to 753-0567)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $99.97

17137

44

Chute Bracket

Part# 17137

OEM Warranty Repair Part for White Outdoor

Not available

710-0255

45

Truss-Mach. Scr. 1/4-20 x .75" Lg.

Part# 710-0255 (Superseded to 710-0924)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

711-0808

46

Hinge Pin

Part# 711-0808

OEM Warranty Repair Part for White Outdoor

Not available

712-0298

47

Hex Jam Nut 1/4-20 Thd.

Part# 712-0298 (Superseded to 912-0298)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.00

732-0542

48

Torsion Spring 1.14" Lg.

Part# 732-0542 (Superseded to 932-0542)

OEM Warranty Repair Part for White Outdoor

Not available
