LT-11 (137-336-190) - White Outdoor 32" Lawn Tractor (1987)

32" Lawn Tractor

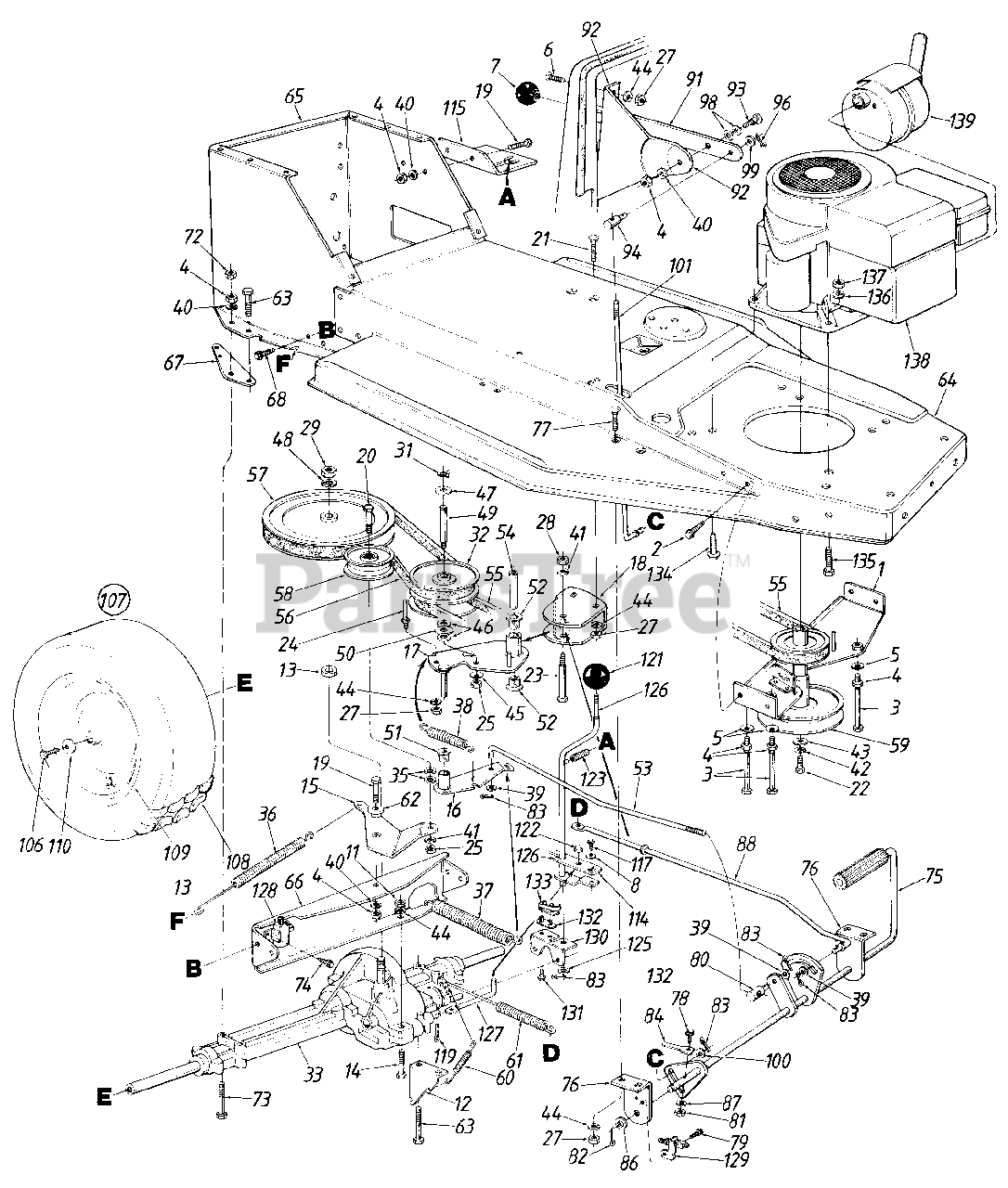

LT-11 (137-336-190) - White Outdoor 32" Lawn Tractor (1987) > Parts Diagrams (8) > Dive Assembly

  • Title
16670

1

Engine Pulley Belt Guard Ass'y.

Part# 16670 (Superseded to 783-0265A-0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0776

2

Hex AB-Tap Scr. 1/4 X .62"

Part# 710-0776 (Superseded to 710-0896)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-0833

3

Hex Bolt 5/16-18 X 5 1/4" Lg.

Part# 710-0833

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.16

712-0267

4

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

736-0242

5

Bell-Wash. .345" I.D. x .88

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

710-0286

6

Truss-Mach. Scr. 1/4-20 x .50" Lg.

Part# 710-0286

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

720-0165

7

Gear Shift Knob

Part# 720-0165 (Superseded to 920-0232)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.74

736-0270

8

Bell-Wash. .265" I.D. x .75

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

723-0308

Foot Pad-R.H.

Part# 723-0308

OEM Warranty Repair Part for White Outdoor

Not available

723-0309

Foot Pad-L.H.

Part# 723-0309 (Superseded to 723-0309B)

OEM Warranty Repair Part for White Outdoor

Not available

712-0138

11

Hex Nut 1/4-28 Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.44

17128

12

Spring Retainer Brkt.

Part# 17128 (Superseded to 17128A-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.57

750-0721

13

Spacer .5" I.D. x .93"

Part# 750-0721

OEM Warranty Repair Part for White Outdoor

Not available

710-0559

14

Hex Bolt 1/4-28 x 1.75" Lg.

Part# 710-0559

OEM Warranty Repair Part for White Outdoor

Not available

15891

15

Idler Bracket

Part# 15891 (Superseded to 15891C-0637)

OEM Warranty Repair Part for White Outdoor

Not available

16352

16

Variable Speed Torque Brkt. Ass'y.

Part# 16352

OEM Warranty Repair Part for White Outdoor

Not available

16676

17

Variable Speed Brkt. Ass'y.

Part# 16676 (Superseded to 16676B-0637)

OEM Warranty Repair Part for White Outdoor

Not available

16679

18

Variable Speed Pivot Brkt.

Part# 16679

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

19

Hex Bolt 5/16-18 X .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0539

20

Hex Bolt 3/8-24 X 1 3/4" Lg. Gr. 5

Part# 710-0539

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.94

710-0703

21

Carr. Bolt 1/4-20 x .75" Lg.

Part# 710-0703

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.73

710-0757

22

Hex Bolt 7/16-20 x 1.5" Lg.

Part# 710-0757

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.48

710-0937

23

Hex Bolt 3/8-16 X 2.5" Lg.

Part# 710-0937 (Superseded to 710-0859)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.44

711-0768

24

Belt Guard Pin

Part# 711-0768 (Superseded to 911-1000)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.13

712-0241

25

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

712-0287

27

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

712-0798

28

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

712-0922

29

Hex Jam Nut 1/2-20 Thd.

Part# 712-0922 (Superseded to 712-3029)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.45

716-0114

31

Snap Ring

Part# 716-0114 (Superseded to 916-0114)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.44

717-0800

32

Variable Speed Pulley Ass'y.

Part# 717-0800 (Superseded to 917-0800A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $159.81

717-0775

33

Transaxle Complete

Part# 717-0775 (Superseded to 753-0537)

OEM Warranty Repair Part for White Outdoor

Not available

736-0258

35

Fl-Wash. 3/8" I.D. x I"

Part# 736-0258

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

732-0384

36

Extension Spring 6.12" Lg.

Part# 732-0384 (Superseded to 932-0384)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.73

732-0459

37

Extension Spring 7.5" Lg.

Part# 732-0459 (Superseded to 732-0459C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.50

732-0568

38

Extension Spring 2.59" Lg.

Part# 732-0568 (Superseded to 932-0568)

OEM Warranty Repair Part for White Outdoor

Not available

736-0117

39

Fl-Wash. .385" I.D. x .620"

Part# 736-0117 (Superseded to 936-0117)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.60

736-0119

40

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0169

41

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

736-0171

42

L-Wash. 7/16" I.D.

Part# 736-0171 (Superseded to 936-0171)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

736-0322

43

Fl-Wash. .450" I.D. x 1.25"

Part# 736-0322

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.17

736-0329

44

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0331

45

Bell-Wash. .39" I.D. x 1.13"

Part# 736-0331

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.57

736-0355

46

Fl-Wash. .56" I.D. x 1.0" O.D.

Part# 736-0355

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0414

47

Washer "Teflon" .565 I.D.

Part# 736-0414 (Superseded to 936-0414)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

736-0921

48

L-Wash. 72" I.D.

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

738-0569

49

Shaft .56" Dia. x 3.875" Lg.

Part# 738-0569 (Superseded to 938-0569)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $21.79

741-0405

50

Thrust Brg. 1.25 O.D.

Part# 741-0405 (Superseded to 941-0405)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

741-0419

51

Flanged Nyliner Brg.

Part# 741-0419

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.08

741-0495

52

Nyliner Flanged Brg.

Part# 741-0495

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

747-0688

53

Speed Control Link

Part# 747-0688

OEM Warranty Repair Part for White Outdoor

Not available

750-0703

54

Spacer

Part# 750-0703

OEM Warranty Repair Part for White Outdoor

Not available

754-0280

55

V-Belt

Part# 754-0280 (Superseded to 954-0280A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $34.89

754-0281

56

V-Belt

Part# 754-0281 (Superseded to 954-0281)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $31.23

756-0374

57

1/2 V-Pulley .500" I.D. x 8.00"

Part# 756-0374

OEM Warranty Repair Part for White Outdoor

Not available

756-0437

58

Idler Pulley 3-1/8" Dia.

Part# 756-0437 (Superseded to 756-0643A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.66

756-0508

59

Dbl. Pulley 6.0" Dia. x 3.56"

Part# 756-0508

OEM Warranty Repair Part for White Outdoor

Not available

732-0303

60

Extension Spring 3.18" Lg.

Part# 732-0303 (Superseded to 932-0303)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.61

732-0413

61

Extension Spring 7.08" Lg.

Part# 732-0413 (Superseded to 932-0413)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.89

748-0234

62

Shld. Spacer .500" Dia.

Part# 748-0234

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

710-0176

63

Hex Bolt 5/16-18 x 2.75" Lg.

Part# 710-0176

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

16652

64

Front Frame

Part# 16652

OEM Warranty Repair Part for White Outdoor

Not available

16653

65

Rear Frame

Part# 16653

OEM Warranty Repair Part for White Outdoor

Not available

16654

66

Transaxle Support Brkt.

Part# 16654 (Superseded to 16654A-0637)

OEM Warranty Repair Part for White Outdoor

Not available

16659

67

Transaxle Brkt. Reinforcement

Part# 16659

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-TRANS

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0726

68

Hex Wash. AB-Tap Scr. 5/16 0 x.75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

712-0158

72

Hex L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.10

710-0189

73

Hex Bolt 5/16-18 x 3.0" Lg.

Part# 710-0189

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.94

710-0351

74

Truss Mach. B-Tap Scr. #10 0 x.50" Lg.

Part# 710-0351

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

16689

75

Clutch/Brake Pedal Ass'y.

Part# 16689

OEM Warranty Repair Part for White Outdoor

Not available

16691

76

Clutch/Brake Pedal Mounting Brkt.

Part# 16691

OEM Warranty Repair Part for White Outdoor

Not available

710-0134

77

Carr. Bolt 1/4-20 x .62" Lg.

Part# 710-0134

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-0597

78

Hex Bolt 1/4-20 x 1.0" Lg.

Part# 710-0597

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-0599

79

Hex TT-Tap Scr. 1/4-20 x .5"

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

711-0198

80

Ferrule

Part# 711-0198 (Superseded to 911-0198)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.94

81

UNKNOWN

Part#

Not available

714-0111

82

Cot-Pin 3/32" Dia. x 1.0" Lg.

Part# 714-0111 (Superseded to 914-0111)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

714-0507

83

Cot-Pin 3/32" Dia. x .75" Lg.

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

732-0435

84

Switch Actuator

Part# 732-0435

OEM Warranty Repair Part for White Outdoor

Not available

736-0256

86

Fl-Wash. .635" I.D. x 1.0"

Part# 736-0256 (Superseded to 936-0256)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.65

87

UNKNOWN

Part#

Not available

747-0686

88

Brake Rod

Part# 747-0686

OEM Warranty Repair Part for White Outdoor

Not available

16663

91

Speed Selector Lever

Part# 16663 (Superseded to 17457B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.98

16694

92

7 Speed Selector Brkt.

Part# 16694

OEM Warranty Repair Part for White Outdoor

Not available

738-0141

93

Shld. Bolt .437" x .35

Part# 738-0141 (Superseded to 938-0141)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.00

711-0677

94

Ferrule

Part# 711-0677 (Superseded to 911-0677)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.55

714-0104

96

Intern. Cot-Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

736-0141

98

Wave Wash. .445" I.D.

Part# 736-0141 (Superseded to 936-0141)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

736-0264

99

Fl-Wash. .344" I.D. x .62"

Part# 736-0264 (Superseded to 936-0264)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.44

736-0463

100

Fl-Wash. .25" I.D. x .62" O.D.

Part# 736-0463 (Superseded to 936-0463)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

747-0675

101

Speed Control Rod

Part# 747-0675 (Superseded to 747-0675A)

OEM Warranty Repair Part for White Outdoor

Not available

710-0627

106

Hex L-Bolt 5/16-24 x .75" Lg.

Part# 710-0627

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.73

734-1424

107

Rear Wheel Ass'y. Comp.

Part# 734-1424

OEM Warranty Repair Part for White Outdoor

Not available

734-1423

108

Turf Tread 16.0 x 7.50 Rear

Part# 734-1423

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle (0901)

No Longer Available TIRE-16 X 7.50

Part# Carlisle (0901)

OEM Warranty Repair Part for White Outdoor

Not available

Dico (0902)

No Longer Available TIRE-16 X 7.50

Part# Dico (0902)

OEM Warranty Repair Part for White Outdoor

Not available

734-1450

109

Rear Wheel Rim Ass'y.

Part# 734-1450

OEM Warranty Repair Part for White Outdoor

Not available

736-0242

110

Bell-Wash. .345" I.D. x .88"

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

17178

114

Shift Lever Adjusting Link

Part# 17178

OEM Warranty Repair Part for White Outdoor

Not available

16482

115

Shift Lever Spring Brkt.

Part# 16482

OEM Warranty Repair Part for White Outdoor

Not available

710-0289

117

Hex Bolt 1/4-20 x .50 Lg.

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.34

714-0149

119

Intern. Cotter Pin

Part# 714-0149 (Superseded to 914-0149B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.91

720-0175

121

Ball Knob

Part# 720-0175 (Superseded to 931-0009A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $9.66

726-0231

122

Retaining Ring

Part# 726-0231 (Superseded to 926-0106)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.50

732-0499

123

Compression Spring 1.5" Lg.

Part# 732-0499

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.11

736-0226

125

Fl-Wash. .469" I.D. x .88"

Part# 736-0226 (Superseded to 936-0226)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.67

747-0680

126

Shift Rod Ass'y.

Part# 747-0680

OEM Warranty Repair Part for White Outdoor

Not available

747-0685

127

Shift Rod

Part# 747-0685 (Superseded to 947-0685)

OEM Warranty Repair Part for White Outdoor

Not available

725-0465

128

Safety Switch

Part# 725-0465 (Superseded to 925-0465A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.69

725-0577

129

Safety Switch

Part# 725-0577

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.57

17179

130

Shift Lever Support

Part# 17179

OEM Warranty Repair Part for White Outdoor

Not available

710-0227

131

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

Part# 710-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

726-0222

132

Insulator Nut Plate

Part# 726-0222 (Superseded to 926-0320)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

725-0758

133

Spring Switch

Part# 725-0758 (Superseded to 753-0580)

OEM Warranty Repair Part for White Outdoor

Not available

710-0502

134

Hex Wash. Hd. Tap Scr. 3/8-16 x 1.25" Lg.

Part# 710-0502 (Superseded to 710-0502A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.24

710-0672

135

Hex Bolt 5/16-24 x 1-1 /4" Lg. Grade 5

Part# 710-0672

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

736-0119

136

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0123

137

Hex Nut 5/16-24 Thd.

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

138

Engine

Part#

Not available

751-0450

139

Muffler

Part# 751-0450

OEM Warranty Repair Part for White Outdoor

Not available
