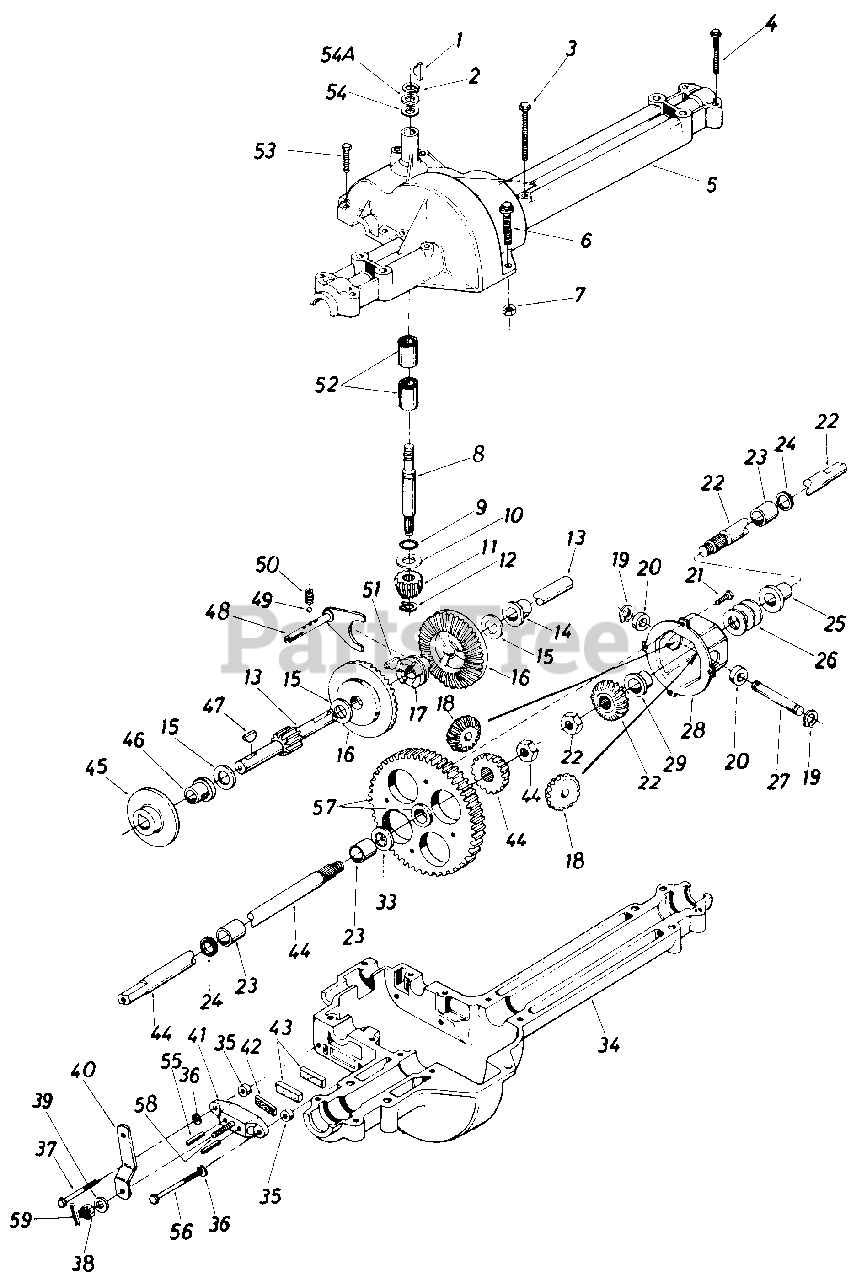

LT-11 (137-336-190) - White Outdoor 32" Lawn Tractor (1987) > Parts Diagrams (8) > Single Speed Transaxle Left Hand

  • Title
714-0129

1

#4 Hi-Pro Key 3/32 x 5/8" Dia

Part# 714-0129 (Superseded to 914-0129)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.23

716-0115

2

Snap Ring .625" Shaft

Part# 716-0115 (Superseded to 916-0115)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.61

710-0854

3

Hex Bolt 1/4-20 x 1.75" Lg.

Part# 710-0854 (Superseded to 710-1026)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

710-0378

4

Hex Bolt 5/16-18 x 2.5"

Part# 710-0378

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

717-0764

5

Upper Housing

Part# 717-0764 (Superseded to 717-0540)

OEM Warranty Repair Part for White Outdoor

Not available

710-0889

6

Hex Fl-Bolt 1/4-20 x .88" Lg.

Part# 710-0889

OEM Warranty Repair Part for White Outdoor

Not available

712-0287

7

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

717-0634

8

Input Shaft

Part# 717-0634 (Superseded to 717-0634A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $78.00

721-0178

9

Square Seal 5/8" I.D.

Part# 721-0178 (Superseded to 921-0178)

OEM Warranty Repair Part for White Outdoor

Not available

736-0335

10

Thrust Washer 5/8" I.D. x 1.25" O.D.

Part# 736-0335 (Superseded to 936-0335)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

717-0633

11

Pinion Input 14T

Part# 717-0633 (Superseded to 917-0633)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.89

716-0108

12

Retaining Ring 7/16" Ext.

Part# 716-0108 (Superseded to 916-0108)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.36

717-0768

13

Drive Shaft

Part# 717-0768

OEM Warranty Repair Part for White Outdoor

Not available

741-0336

14

Flange Brg. 518" I.D. x 3/4" Lg.

Part# 741-0336 (Superseded to 941-0336)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.55

15

Fl-Wash.

Part#

Not available

736-0349

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .020" Thk.

Part# 736-0349 (Superseded to 936-0349)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0336

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .030" Thk.

Part# 736-0336 (Superseded to 936-0336)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0337

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .040" Thk.

Part# 736-0337 (Superseded to 936-0337)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

717-0757

16

Bevel Gear 42T

Part# 717-0757

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $65.21

717-0667

17

Clutch Collar

Part# 717-0667 (Superseded to 917-0667)

OEM Warranty Repair Part for White Outdoor

Not available

717-1020

18

Miter Gear 15T (H.D.)

Part# 717-1020

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.86

716-0142

19

Snap Ring

Part# 716-0142 (Superseded to 753-0527)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.11

717-0690

20

Thrust Bearing 1/2" I.D. x 1.0' O.D.

Part# 717-0690 (Superseded to 753-0527)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.11

710-0862

21

Pan Head Scr. 1/4-20 x .50" Lg. w/Patch

Part# 710-0862 (Superseded to 710-0862A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.00

717-0766

22

Axle R.H. Ass'y.-Kit

Part# 717-0766 (Superseded to 917-0766)

OEM Warranty Repair Part for White Outdoor

Not available

741-0340

23

Sleeve Bearing 3/4" I.D. x 1.0" Lg.

Part# 741-0340 (Superseded to 741-05060)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.69

721-0179

24

Oil Seal 3/4" I.D.

Part# 721-0179 (Superseded to 921-0179)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.66

741-0339

25

Flange Bearing 3/4" I.D. x 15/16" Lg.

Part# 741-0339 (Superseded to 941-0339)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.69

736-0188

26

Fl-Wash. .760" I.D. x 1.49" O.D.

Part# 736-0188

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

717-0673

27

Cross Shaft

Part# 717-0673 (Superseded to 753-0527)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.11

717-0777

28

Differential Housing Ass'y.

Part# 717-0777 (Superseded to 753-0546)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $40.71

29

Part of Ref. 28

Part#

Not available

736-0188

33

Fl-Wash. .760" I.D. x 1.49" O.D.

Part# 736-0188

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

717-0761

34

Lower Housing

Part# 717-0761 (Superseded to 753-0714)

OEM Warranty Repair Part for White Outdoor

Not available

750-0555

35

Spacer .53" O.D. x 3/8" Lg.

Part# 750-0555

OEM Warranty Repair Part for White Outdoor

Not available

736-0329

36

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-0886

37

Hex Bolt 1/4-20 x 1.50" Lg. (Grade 5)

Part# 710-0886 (Superseded to 910-0886)

OEM Warranty Repair Part for White Outdoor

Not available

712-0335

38

Castle Nut 5/16-24 Thd.

Part# 712-0335 (Superseded to 912-0273)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

736-0159

39

Fl-Wash. .344" I.D. x .875" O.D.

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.76

717-0772

40

Actuating Arm

Part# 717-0772 (Superseded to 717-0772B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.21

717-0679

41

Brake Yoke

Part# 717-0679

OEM Warranty Repair Part for White Outdoor

Not available

717-0682

42

Puck Plate

Part# 717-0682 (Superseded to 917-0682)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.40

717-0678

43

Brake Puck

Part# 717-0678 (Superseded to 917-0678)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.04

717-0765

44

Axle L.H. Ass'y.-Kit

Part# 717-0765 (Superseded to 917-0765)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.27

717-0677

45

Brake Disc

Part# 717-0677

OEM Warranty Repair Part for White Outdoor

Not available

741-0337

46

Flange Bearing 5/8" I.D. x 15/16" Lg.

Part# 741-0337 (Superseded to 941-0337)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.03

714-0161

47

Woodruff Key 3/16 x 5/8 HT

Part# 714-0161 (Superseded to 914-0161)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

717-0754

48

Shift Fork Ass'y.

Part# 717-0754 (Superseded to 917-0754)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $84.63

741-0862

49

Ball Detent .250" Dia.

Part# 741-0862

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

732-0863

50

Spring Detent

Part# 732-0863 (Superseded to 932-0863)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

714-0169

51

#9 Hi-Pro Key 3/16" x 3/4" Dia. HT

Part# 714-0169 (Superseded to 914-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.23

741-0335

52

Needle Brg. 5/8" I.D. x 1/2" Lg.

Part# 741-0335 (Superseded to 941-0335)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.39

710-0855

53

Hex Bolt 1/4-20 x 1.00" Lg.

Part# 710-0855 (Superseded to 710-0788)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.60

736-0336

54

Fl-Wash. 5/8" I.D. x .030

Part# 736-0336 (Superseded to 936-0336)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0337

54A

Fl-Wash. 5/8" I.D. x .040

Part# 736-0337 (Superseded to 936-0337)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

741-0343

55

Actuating Pin 5/16" Dia.

Part# 741-0343 (Superseded to 941-0343)

OEM Warranty Repair Part for White Outdoor

Not available

710-0966

56

Hex Bolt 1/4-20 x 2.50" Lg. (Grade 5)

Part# 710-0966

OEM Warranty Repair Part for White Outdoor

Not available

717-0767

57

Differential Gear 72T Ass'y. w/Bearing

Part# 717-0767 (Superseded to 917-0767)

OEM Warranty Repair Part for White Outdoor

Not available

717-0681

58

Sq. Hd. Bolt 5/16-24 Thd.

Part# 717-0681 (Superseded to 717-0796)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.90

1544-013

59

Cotter Pin 3/32" Dia. x .50" Lg.

Part# 1544-013 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

737-0148

Grease-Shell

Part# 737-0148 (Superseded to 737-0300A)

Note: (10 oz.)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $27.16
