LT 110 DR - Electrolux/AYP Lawn Tractor, Part 1 POWER, MECHANICAL CONTROLS Parts Diagram

Lawn Tractor (Part 1)

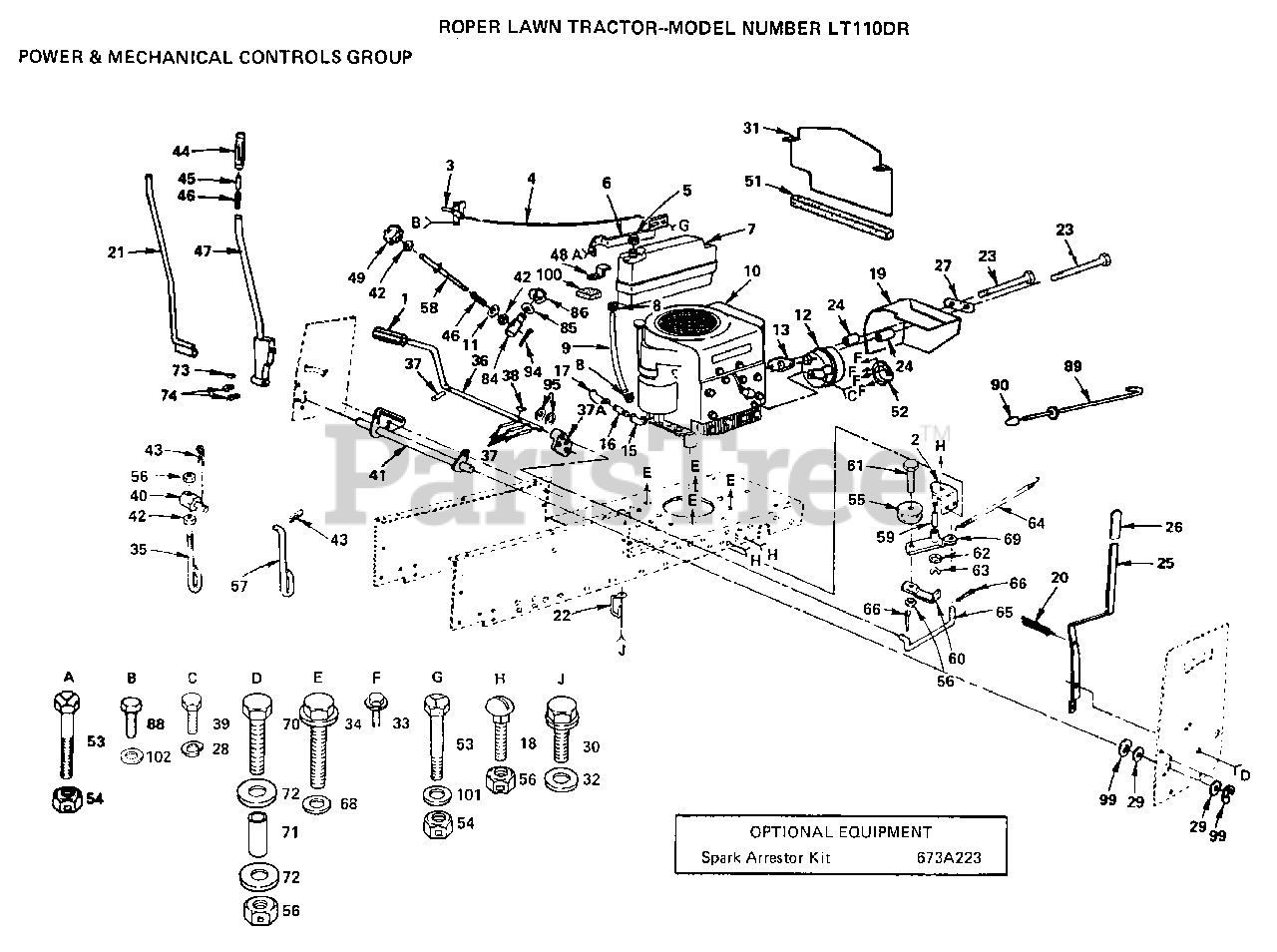

POWER, MECHANICAL CONTROLS Parts Diagram

  • Title

1

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

2

Electrolux/AYP 105724X

SUB= 123102X

$

$

Not available

3

Electrolux/AYP 61159

KNOB

$

$

Not available

4

Electrolux/AYP 101336K

SUB= 132753

$

$

Not available

5

Electrolux/AYP 8504J

SUB= 9188504J

$

$

Not available

6

Electrolux/AYP 104800X

SUPPORT-TANK LT

$

$

Not available

7

Electrolux/AYP 3615J

SUB= 121280X

$

$

Not available

8

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

9

Electrolux/AYP 7833R

HOSE T
(Superseded to 532007833)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 253707

ENGINE-B&S

$

$

Not available

11

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, only 2 left!

0

12

Electrolux/AYP 101273M

MUFFLER LTV
(Superseded to 583638801)

$72.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 1407J

SUB= 272293

$

$

Not available

15

Electrolux/AYP 13240300

STREET ELBOW LT
(Superseded to 813240300)

$7.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 13280328

PIPE NIPPLE
(Superseded to 813280328)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 18

0

18

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

19

Electrolux/AYP 104910X

BAFFLE ASSY LT
(Superseded to 583644701)

$

$

Not available

20

Electrolux/AYP 102727X

"SPRING.EXT.8.5"""
(Superseded to 532102727)

$

$

Not available

21

Electrolux/AYP 104598X

ROD ASSY-LEVER LT

$

$

Not available

22

Electrolux/AYP 104777X

SUB= 140312

$

$

Not available

23

Electrolux/AYP 74780572

BOLT YT
(Superseded to 874780580)

$4.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 101496X

SPACER LT
(Superseded to 583639901)

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 106983X

HANDLE YT

$

$

Not available

26

Electrolux/AYP 4617J

SUB= 532131861
(Superseded to 532131861)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 104909X

CLIP-MUFFLER LT

$

$

Not available

28

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

29

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$6.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 104913X

"VERTICAL LT, BAFL"

$2.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 17390806

NLA

$

$

Not available

34

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 20+

0

35

Electrolux/AYP 105855X

LINK LIFT LT
(Superseded to 583646801)

$27.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 105720X

SUB= 109037X

$

$

Not available

37

Murray 1572H

SUB= 2882J

$

$

Not available

37A

Electrolux/AYP 106918X

ARM BRAKE LT
(Superseded to 583653301)

$

$

Not available

38

Murray 2228M

SUB= 2228M1

$

$

Not available

39

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 106204X

SUB= 132793
(Superseded to 532106204)

$

$

Not available

41

Electrolux/AYP 106979X

SUB= 109990X

$

$

Not available

42

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

43

Murray 4939M

SUB= 85902

$

$

Not available

44

Electrolux/AYP 106019X

SUB= 109413X

$

$

Not available

45

Electrolux/AYP 105723X

SUB= 125925X

$

$

Not available

46

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

In Stock, only 1 left!

0

47

Electrolux/AYP 104597X

LEVER ASSY LT

$

$

Not available

48

Electrolux/AYP 104799X

BRACE-TANK LT

$

$

Not available

49

Electrolux/AYP 100734K

SUB= 138057

$

$

Not available

51

Electrolux/AYP 104915X

SUB= 105037X

$

$

Not available

52

Electrolux/AYP 101326L

DEFLECTOR.222573
(Superseded to 532101326)

$

$

Not available

53

Electrolux/AYP 74780512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

54

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 106298X

SUB= 139245

$

$

Not available

56

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 105856X

SUB= 110095X

$

$

Not available

58

Electrolux/AYP 100735K

ROD ADJUST LT

$

$

Not available

59

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 106499X

SUB= 123205X

$

$

Not available

61

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 207J

WASHER T
(Superseded to 532000207)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 13

0

64

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$10.99

$

In Stock, Qty 20+

0

65

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

69

Electrolux/AYP 105705X

SUB= 125829X

$

$

Not available

70

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 108056X

BUSHING YT

$

$

Not available

72

Electrolux/AYP 19121612

WASHER LT

$

$

Not available

73

Electrolux/AYP 8330H

KEY STD

$

$

Not available

74

Electrolux/AYP 23180606

SCREW

$

$

Not available

84

Electrolux/AYP 101272K

TRUNION LT

$

$

Not available

85

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

86

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

89

Electrolux/AYP 105844X

SUB= 125637X

$

$

Not available

90

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$4.99

$

In Stock, only 2 left!

0

94

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

95

Electrolux/AYP 19252016

SUB= 121749X

$

$

Not available

99

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$3.99

$

In Stock, Qty 20+

0

100

Electrolux/AYP 6431J

PAD-SPACER T
(Superseded to 532106082)

$

$

Not available

101

Electrolux/AYP 19111416

WASHER
(Superseded to 819111416)

$

$

Not available

102

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0
