LT 11000 (89032) - Snapper Lawn Tractor, 11hp Drive Disc, Rear Axle Components Parts Diagram

Lawn Tractor, 11hp

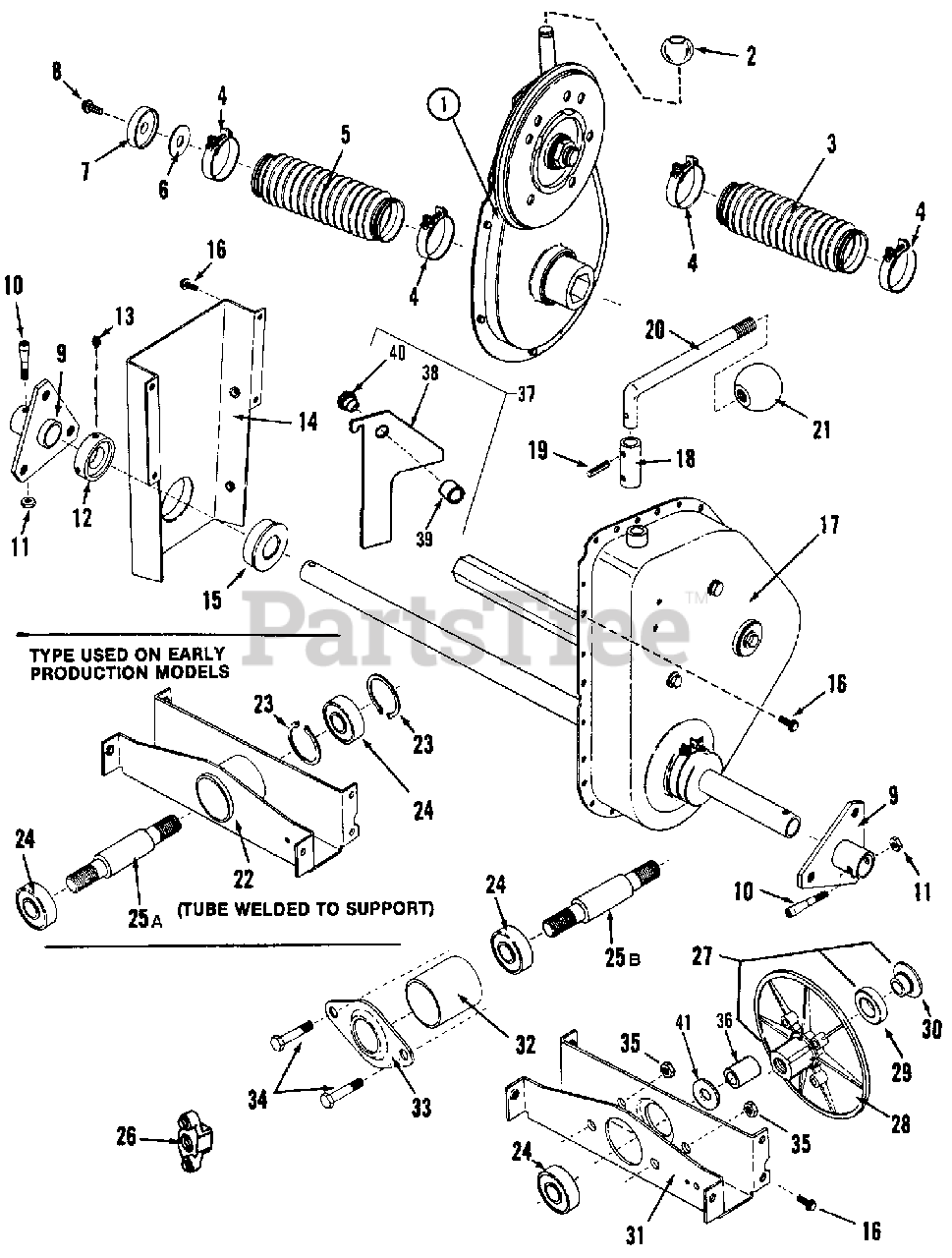

Drive Disc, Rear Axle Components Parts Diagram

  • Title

1

PRIMARY CASE

Note: (See "Primary Chain Case" group for parts breakdown)

$

$

Not available

2

Snapper 7014396

BUSHING, Primary Clutch
(Superseded to 7014396YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7016348

BOOT, Left Side Oil seal

Note: Was 18660

$

$

Not available

4

Snapper 7011037

CLAMP, Boot
(Superseded to 7012332YP)

$6.99

$

In Stock, only 3 left!

0

5

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

Note: Was 11011

$10.99

$

In Stock, Qty 20+

0

6

Snapper 7032255

WASHER, Thrust

$

$

Not available

7

Snapper 7014326

SPACER, Hex Tube

$

$

Not available

8

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

9

Snapper 7040433

HUB, Rear Wheel
(Superseded to 7040433YP)

$37.99

$

Usually ships in 2-12 days

0

10

Snapper 7011013

BOLT, Tapered
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 17

0

11

Snapper 7092062

NUT, 5/16-24 Hex Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7014401

LOCK-COLLAR
(Superseded to 7014401YP)

$26.99

$

In Stock, only 1 left!

0

13

Snapper 7090201

SETSCREW, 5/16-18 x 5/16"
(Superseded to 7090201SM)

$

$

Not available

14

Snapper 7057328

ASSEMBLY, Axle Support

Note: (includes item 15)

$

$

Not available

15

Snapper 7018822

BEARING, Ball
(Superseded to 7018822YP)

Note: Was 14400

$74.99

$

In Stock, only 1 left!

0

16

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

17

Snapper 7059830

ASSEMBLY, Transmission

Note: (See "Transmission Assembly Parts" for parts breakdown)

$

$

Currently unavailable

18

Snapper 7021903

COUPLING, Shift Lever
(Superseded to 7021903YP)

$35.99

$

Usually ships in 2-12 days

0

19

Snapper 7090844

ROLL-PIN, 3/16 x 3/4"
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7032308

LEVER, HI-LO Shifter
(Superseded to 7032308YP)

$23.99

$

Usually ships in 2-12 days

0

21

Snapper 7014501

KNOB, Shifter Ball
(Superseded to 7014501YP)

$17.99

$

In Stock, only 2 left!

0

22

Snapper 7049709

SUPPORT, Bearing (NLA)(Use item #'s 25B - 34)

Note: (Early version requires 2 item 23)

$

$

Currently unavailable

23

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

Note: (Use with item 22)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7013313

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

25A

Snapper 7021909

SPINDLE, Drive Disc (5.040")

$

$

Currently unavailable

25B

Snapper 7021956

SPINDLE, Drive Disc 1985 (6.040")

$

$

Not available

26

Snapper 7018584

HUB, Flex Coupling
(Superseded to 7018584YP)

Note: (See "Frame, Engine & Drive Parts")

$68.99

$

Usually ships in 2-12 days

0

27

Snapper 7051418

ASSEMBLY, Drive Disc
(Superseded to 7051418YP)

Note: (includes items 28 thru 30)

$195.99

$

Usually ships in 2-12 days

0

28

Snapper 7018567

DISC, Drive
(Superseded to 7018567YP)

$125.99

$

Usually ships in 2-12 days

0

29

Snapper 7014514

BEARING, Ball
(Superseded to 7014514YP)

$50.99

$

Usually ships in 2-12 days

0

30

Snapper 7014447

BUTTON, Center

$

$

Not available

31

Snapper 7036085

SUPPORT, Bearing

Note: (Latest version requires items 32,33,34,35)

$

$

Not available

32

Snapper 7021943

TUBE
(Superseded to 7021943YP)

Note: (Use with item 31)

$62.99

$

Usually ships in 2-12 days

0

33

Snapper 7032396

RETAINER
(Superseded to 7032396YP)

Note: (Use with item 31)

$29.99

$

Usually ships in 2-12 days

0

34

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head
(Superseded to 703870)

Note: Was 90553

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 7091575

NUT, 5/16-18 Hex Center Lock Grade B or 5
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 10

0

36

Snapper 7021955

SPACER, Drive Disc

$

$

Not available

37

Snapper 7060663

KIT, Drive Disc Adjustment Gauge

Note: (Includes items 38, 39, 40 and Instruction number 14983)

$

$

Not available

38

Snapper 7038177

GAUGE PLATE, Drive Disc Adjustment

$

$

Currently unavailable

39

Snapper 7021954

SHAFT EXTENSION

$

$

Currently unavailable

40

Snapper 7014982

PLUG, Plastic 5/8-18

$

$

Not available

41

Snapper 7010121

SHIM WASHER,
(Superseded to 7010121YP)

Note: (if necessary)

$4.49

$

In Stock, Qty 5

0
