LT 11001 (83132) - Snapper Lawn Tractor, 11hp Seat, Step Panels & Rear Fender Parts Diagram

Lawn Tractor, 11hp

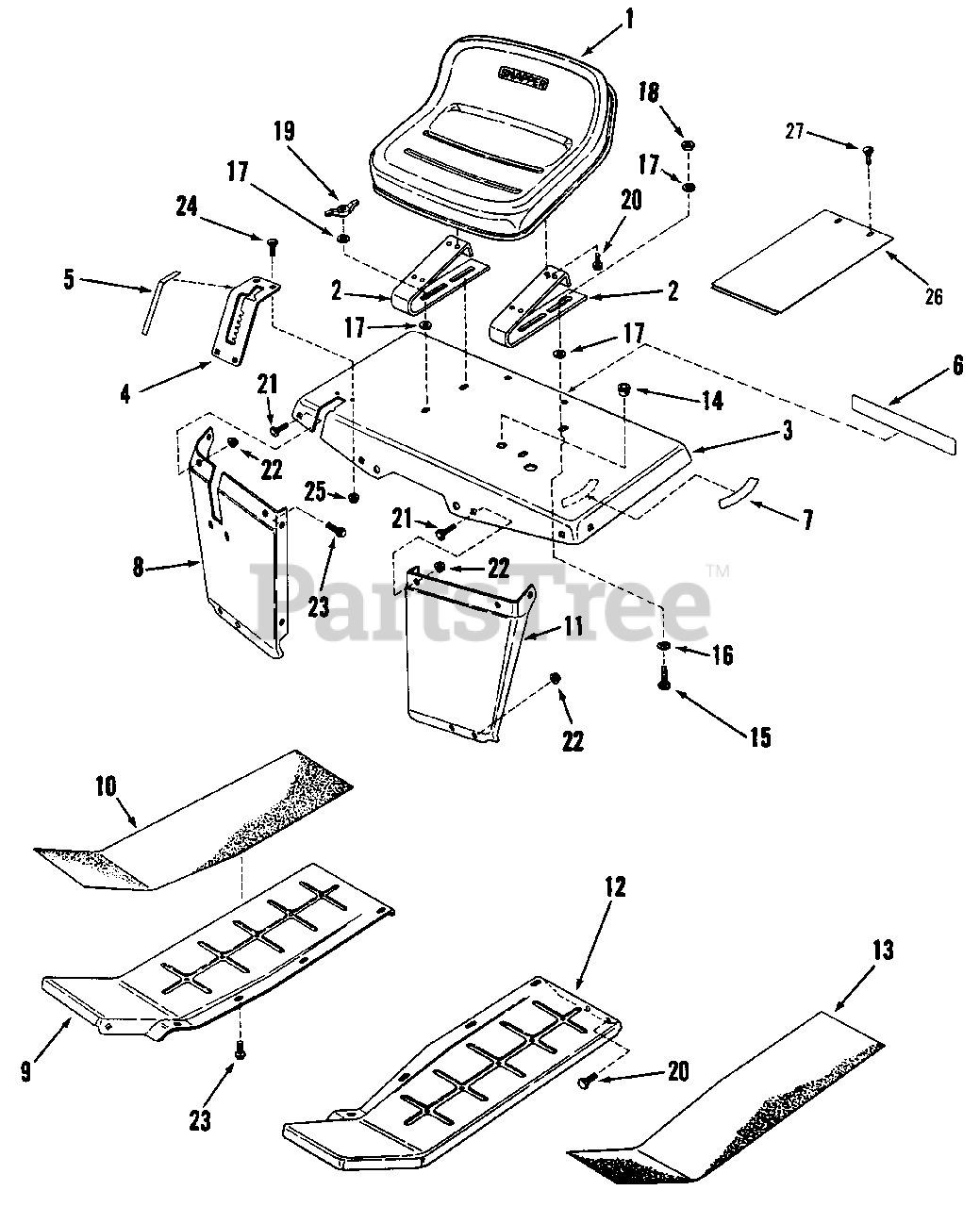

Seat, Step Panels & Rear Fender Parts Diagram

  • Title

1

Snapper 7019964

SEAT, Operator's

$

$

Not available

2

Snapper 7038086

SPRING, Seat

$

$

Currently unavailable

3

Snapper 7039930

FENDER, Rear

Note: (2" from shift handle to wire hole)

$

$

Currently unavailable

3

Snapper 7035071

FENDER, Rear w/access hole

Note: (1" from shift handle to wire hole)

$

$

Currently unavailable

4

Snapper 7038089

DETENT, Shift
(Superseded to 7038089YP)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 7014506

DECAL, Speed Shift

$

$

Not available

6

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 18593

$13.99

$

In Stock, only 4 left!

0

7

Snapper 7014505

DECAL, HI-LOW RANGE (Shift)

$

$

Not available

8

Snapper 7039932

EXTENSION, Right Side Fender

$

$

Currently unavailable

9

Snapper 7035016

PANEL, Right Side Step

$

$

Not available

10

Snapper 7022413

TREAD, Right Side (Non-Skid)

Note: Was 18602

$

$

Not available

11

Snapper 7039931

EXTENSION, Left Side Fender

$

$

Currently unavailable

12

Snapper 7035015

PANEL, Left Side Step

$

$

Not available

13

Snapper 7022414

TREAD, Left Side (Non-Skid)

Note: Was 18603

$

$

Not available

14

Snapper 7014518

RELIEF, Strain

$

$

Not available

15

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 16

0

16

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

18

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade B or 5
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 10

0

19

Snapper 7014468

WING-NUT, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

20

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock, Grade 5
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

21

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

23

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tap (14)
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

24

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, only 3 left!

0

25

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, only 2 left!

0

26

Snapper 7038395

COVER, Access

Note: Was 38186

$

$

Currently unavailable

27

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0
