LT-112 (135-688-190) - White Outdoor 36" Lawn Tractor (1985) 36" Rear Discharge Mowing Deck Assembly Parts Diagram

36" Lawn Tractor

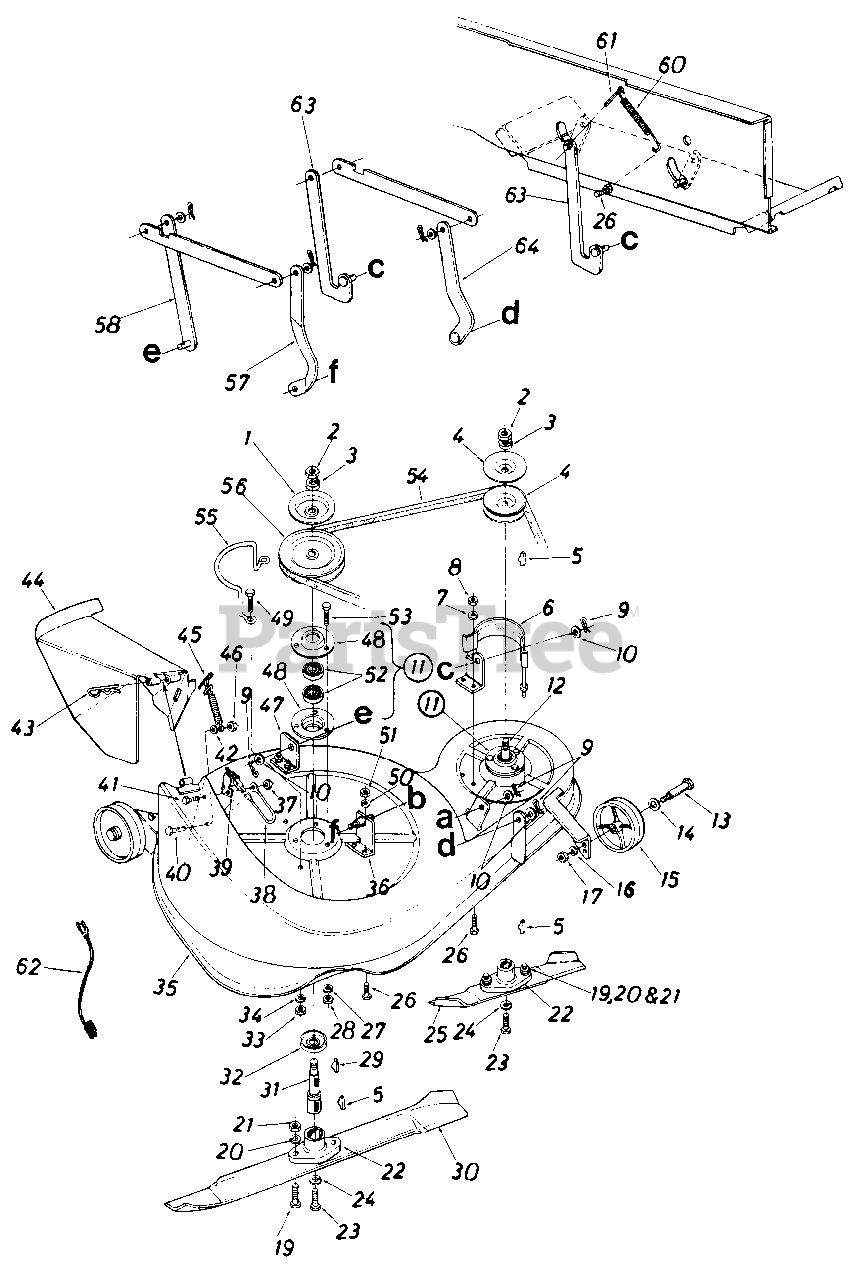

36" Rear Discharge Mowing Deck Assembly Parts Diagram

  • Title

1

White Outdoor 09322

Brake Disc

$

$

Not available

2

White Outdoor 712-0318

Hex Jam Nut 5/16-18 Thd.*

$3.49

$

In Stock, Qty 11

0

3

White Outdoor 736-0317

Bell-Wash. .630" I.D. x 1.25" O.D.

$8.49

$

In Stock, Qty 20+

0

4

White Outdoor 756-0413

Pulley Ass'y. 3.5" O.D. x 5/8

$

$

Not available

5

White Outdoor 714-0365

#6 Hi-Pro Key 5132" x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

6

15967

Belt Guard Ass'y. L.H.

$

$

Not available

7

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

9

White Outdoor 714-0101

Internal Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

10

White Outdoor 736-0192

Fl-Wash 531" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 16

0

11

717-0808

Blade Spind le Ass'y.

$

$

Not available

12

738-0559

Blade Spindle

$

$

Not available

13

White Outdoor 738-0414

Shld. Bolt .498" Dia. x 1.635

$

$

Not available

14

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 734-0973

Deck Wheel 5.0" x 1.38"
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

16

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 710-0117

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 8

0

20

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

22

White Outdoor 748-0189

Blade Adapter

$

$

Not available

23

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$7.49

$

In Stock, Qty 11

0

24

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, only 3 left!

0

25

White Outdoor 742-0206

13" Blade

$

$

Not available

26

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

29

White Outdoor 714-0365

#6 Hi-Pro Key 5132" x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

30

White Outdoor 742-0267

24" Blade

$

$

Not available

31

738-0559

Blade Spindle

$

$

Not available

32

White Outdoor 13703

Bearing Shield

$

$

Not available

33

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

34

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

15951

36" Deck Ass'y.

$

$

Not available

36

15961

Deck Hanger Brkt. R.H. Front

$

$

Not available

37

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

38

White Outdoor 725-0765

Ground Wire

$

$

Not available

39

White Outdoor 725-1001

Safety Switch

$

$

Not available

40

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*

$4.99

$

Usually ships in 3-6 days

0

41

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .50" O.D.

$4.99

$

In Stock, Qty 20+

0

43

White Outdoor 714-0155

Internal Cotter Pin
(Superseded to 714-0174)

$

$

Not available

44

White Outdoor 15990

Chute Deflector Ass'y.

$

$

Not available

45

White Outdoor 723-0296

Spring Latch Ass'y.

$

$

Not available

46

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

47

15966

Deck Hanger Brkt. R.H. Rear

$

$

Not available

48

White Outdoor 08253

Brg. Housing 1.85" I.D.
(Superseded to 08253B)

$20.99

$

In Stock, only 4 left!

0

49

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

53

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 754-0277

"V"-Belt 1/2" x 71" Lg.
(Superseded to 954-0277)

Note: (Full A Sec.)

$

$

Not available

55

White Outdoor 747-0466

Belt Guard

$

$

Not available

56

White Outdoor 756-0414

Pulley 6.0" O.D. x 5/8"

$

$

Not available

57

15958

Link Deck Hanger Front R.H.

$

$

Not available

58

White Outdoor 14804

Link Deck Hanger Ass'y. Rear R.H.

$

$

Not available

60

White Outdoor 732-0157

Ext. Spring

$15.99

$

Usually ships in 3-6 days

0

61

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

62

725-1000

Wire Lead

$

$

Not available

63

White Outdoor 15959

Link Deck Hanger Ass'y. Rear L.H.

$

$

Not available

64

15998

Link Deck Hanger Ass'y. Front L.H.

$

$

Not available

15950

36" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Not available
