LT-112 (135-688-190) - White Outdoor 36" Lawn Tractor (1985) Speed Selector Assembly Parts Diagram

36" Lawn Tractor

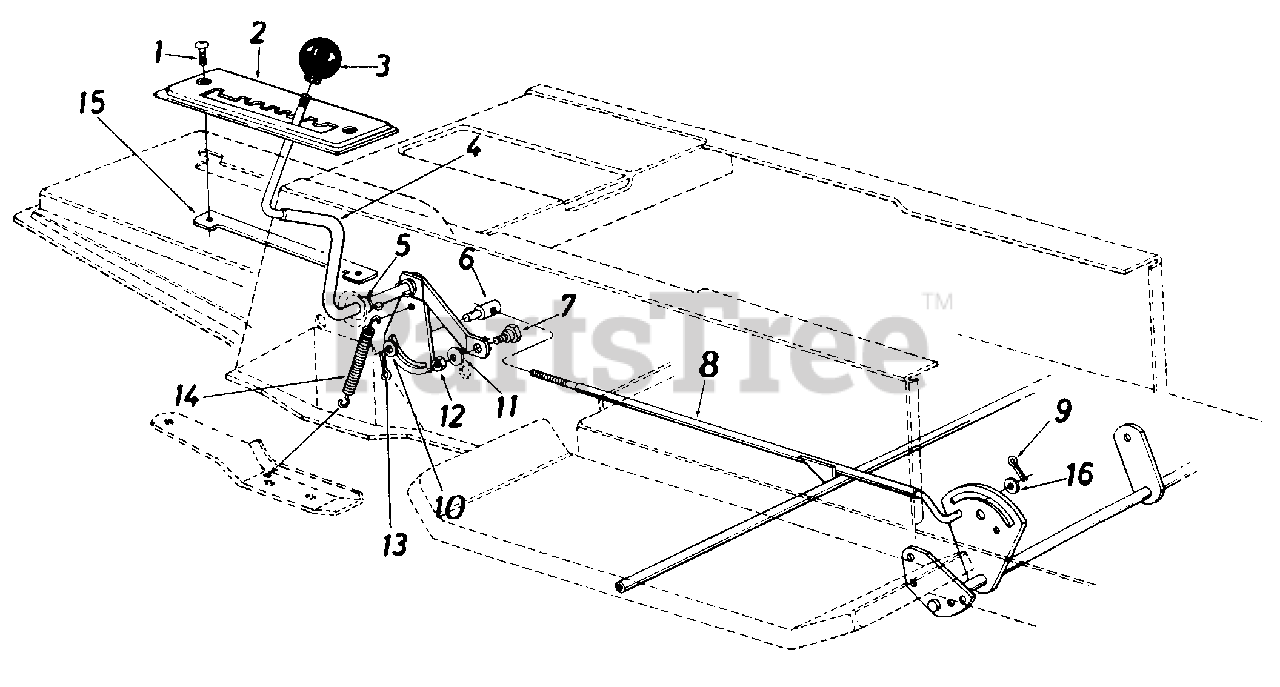

Speed Selector Assembly Parts Diagram

  • Title

1

White Outdoor 710-0924

Truss Mach. Scr. 1/4-20 x .75"Lg.

$4.99

$

In Stock, Qty 20+

0

2

White Outdoor 16194

Speed Selector Plate

Note: (688 & 704)

Variations

16194-0637

White Outdoor 16194-0637

PLATE-7 SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 16195

Speed Selector Plate

Note: (690)

$

$

Not available

3

White Outdoor 720-0175

Gear Shift Knob
(Superseded to 931-0009A)

$15.99

$

In Stock, only 3 left!

0

4

White Outdoor 16192

Speed Selector Cam Ass'y.
(Superseded to 16192A)

$

$

Not available

5

White Outdoor 736-0192

Flat Washer .53" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 16

0

6

White Outdoor 711-0198

Ferrule 3/8-24 x .37" Dia.
(Superseded to 911-0198)

$14.99

$

In Stock, only 2 left!

0

7

White Outdoor 738-0155

Shoulder Bolt .435" Dia. x .160
(Superseded to 938-0155)

$7.49

$

Usually ships in 3-6 days

0

8

White Outdoor 16355

Speed Control Rod Ass'y

$

$

Not available

9

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.*

$4.99

$

In Stock, Qty 12

0

10

White Outdoor 736-0117

Fl-Wash. .39" I.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

11

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 714-0104

Hairpin Cotter 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 732-0303

Spring
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 5

0

15

White Outdoor 16196

Clamping Plate

$

$

Not available

16

White Outdoor 736-0226

Fl-Wash. .47" I.D. x .88" O.D. x .063
(Superseded to 936-0226)

$4.49

$

In Stock, only 2 left!

0
