LT-112 (136-688-190) - White Outdoor 36" Lawn Tractor (1986) Lift Shaft And Steering Assembly Parts Diagram

36" Lawn Tractor

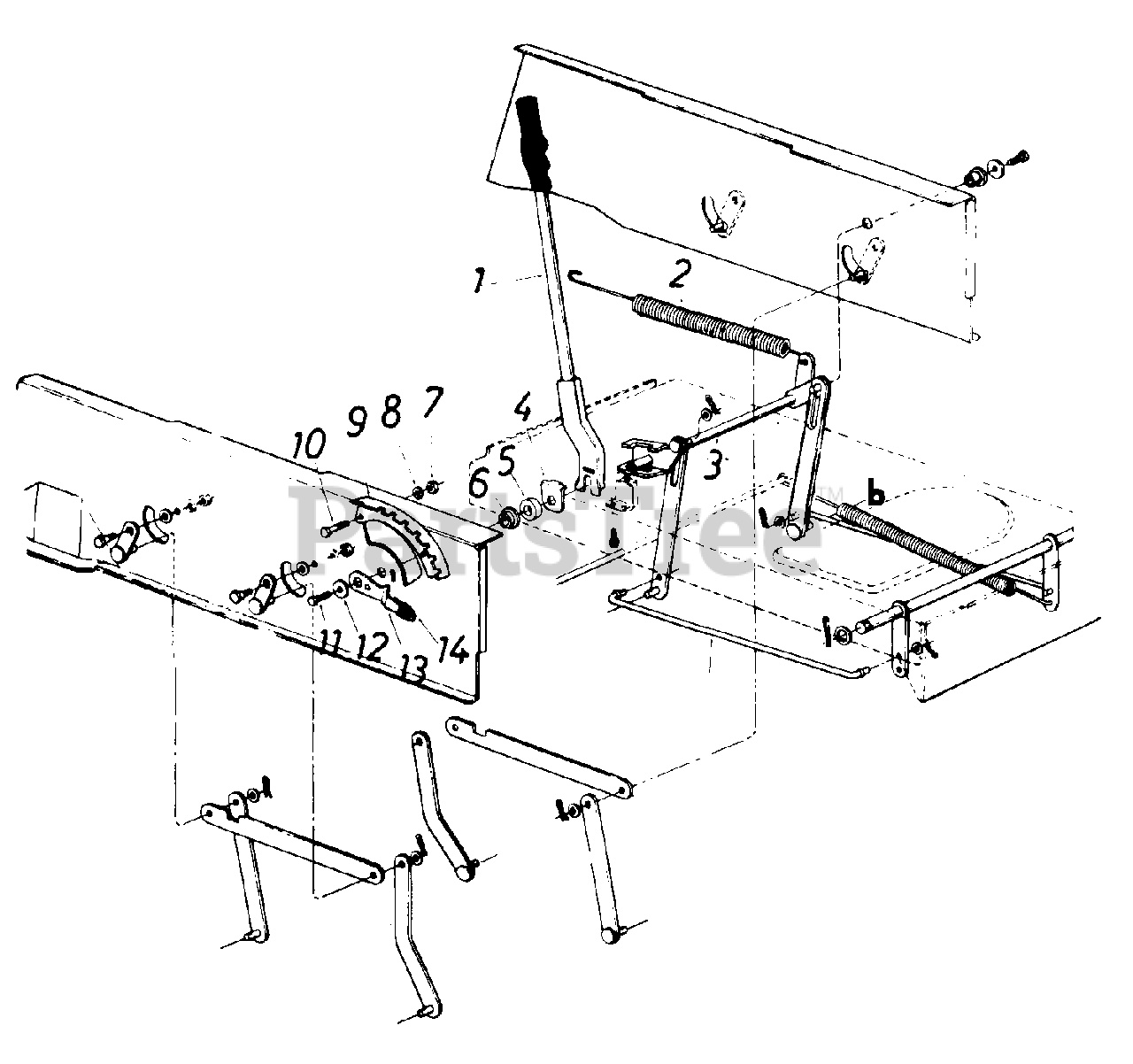

Lift Shaft And Steering Assembly Parts Diagram

  • Title

1

14654

Lift Handle Ass'y.

$

$

Not available

2

White Outdoor 732-0307

Extension Spring .99" O.D. x 11" Lg.
(Superseded to 932-0307A)

$

$

Not available

3

White Outdoor 14641

Lift Shaft Ass'y.

Variations

White Outdoor 14641-0637

No Longer Available SHAFT-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

4

14654

Retainer Wash.-Lift Handle

$

$

Not available

5

White Outdoor 735-0216

Rubber Wash. 1.50" O.D. x .63" I.D.

$

$

Not available

6

White Outdoor 736-0341

Flange Wash. .628" I.D. x 1.25" O.D.
(Superseded to 736-0341B)

$

$

Not available

7

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

8

White Outdoor 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

9

14633

Index Bracket

$

$

Not available

10

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0604

Hex Wash. Hd. Self-Tap Scr. 5/16-18x.62" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 736-0231

Fl.-Wash. .344" I.D. x 1.25" Lg.

$4.49

$

In Stock, only 4 left!

0

13

White Outdoor 736-0412

Deck Lift-Down Stop

$

$

Not available

14

White Outdoor 08540

Knob

$

$

Not available
