LT 112 (954000191-A) - Husqvarna Lawn Tractor (1990-11) Brake/Rear Mower Lift Assembly Parts Diagram

Lawn Tractor

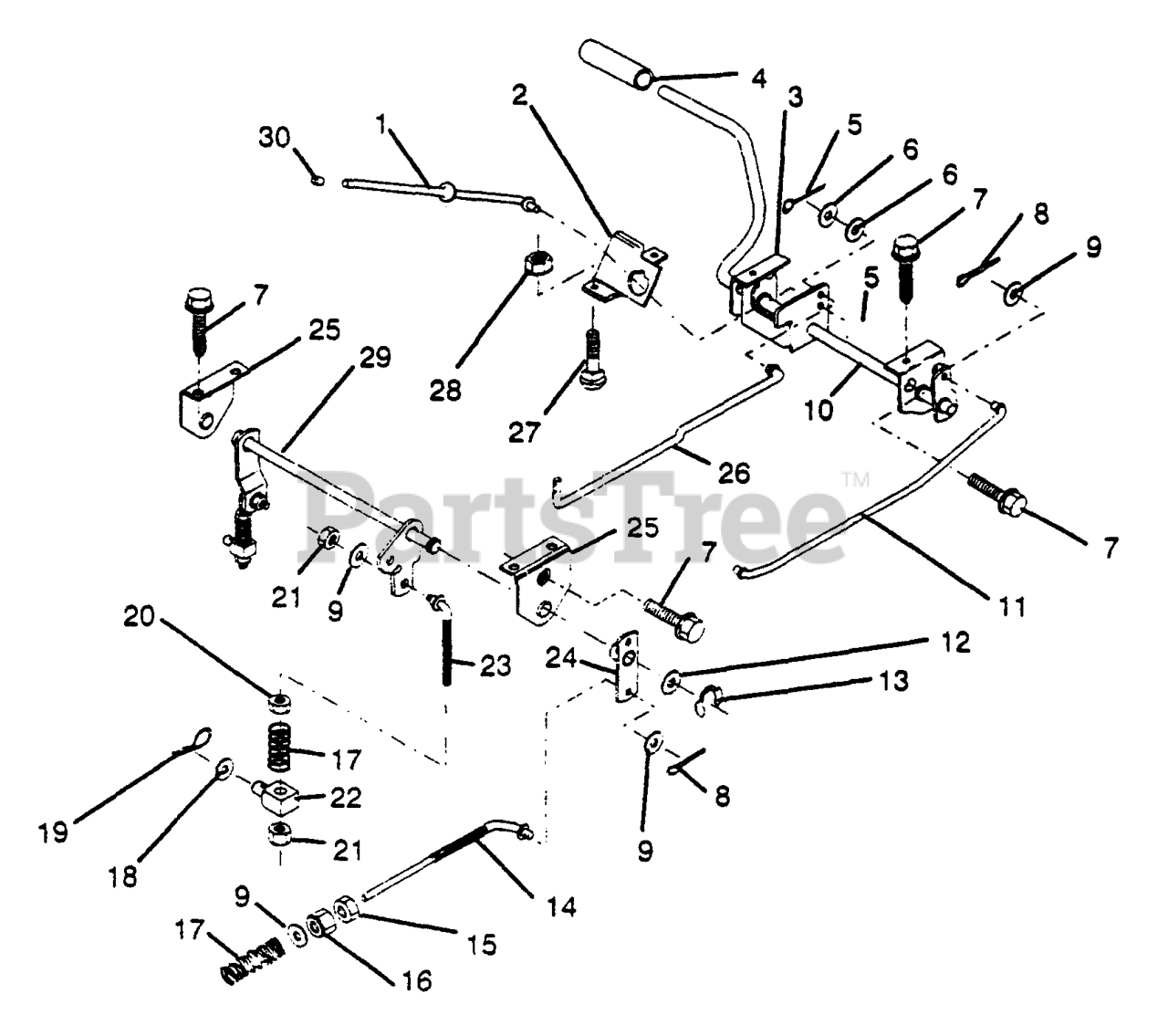

Brake/Rear Mower Lift Assembly Parts Diagram

  • Title

1

Husqvarna 532123436

ROD,PARK BRAKE

$

$

Not available

2

Husqvarna 532123437

BRKT,PARK BRAKE

$

$

Not available

3

Husqvarna 532122504

BRKT,CLU PEDAL LH

$

$

Not available

4

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

5

Husqvarna 876020312

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 819131016

WASHER

$3.49

$

In Stock, only 4 left!

0

7

Husqvarna 817490508

Screw, Hex Washer Hd. TF 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

8

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 532124145

ASS'Y CLUTCH BRAK
(Superseded to 532139933)

$

$

Not available

11

Husqvarna 532123543

ROD,FRT BRAKE

$

$

Not available

12

Husqvarna 819251816

WASHER T

$

$

Not available

13

Husqvarna 812000034

Ring, Clip

$

$

Not available

14

Husqvarna 532126759

ROD,BRAKE REAR
(Superseded to 532131461)

$

$

Not available

15

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

16

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

17

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$5.99

$

In Stock, Qty 19

0

18

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 532004921

COTTER PIN

$5.99

$

In Stock, only 2 left!

0

20

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

21

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 532106204

TRUNION, LIFT LT
(Superseded to 532132793)

$

$

Not available

23

Husqvarna 532123672

LINK LIFT

$

$

Not available

24

Husqvarna 532123641

BRAKE PIVOT ARM

$

$

Not available

25

Husqvarna 532121978

BRKT,LIFT SHAFT

$

$

Not available

26

Husqvarna 532123394

ROD,CLUTCH

$

$

Not available

27

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$6.99

$

In Stock, Qty 6

0

28

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

29

Husqvarna 532123547

REAR MOWER LIFT

$

$

Not available

30

Husqvarna 532071673

PLUNGER CAP

$5.99

$

In Stock, only 2 left!

0
