LT 112 (954000191-A) - Husqvarna Lawn Tractor (1990-11) Dash Parts Diagram

Lawn Tractor

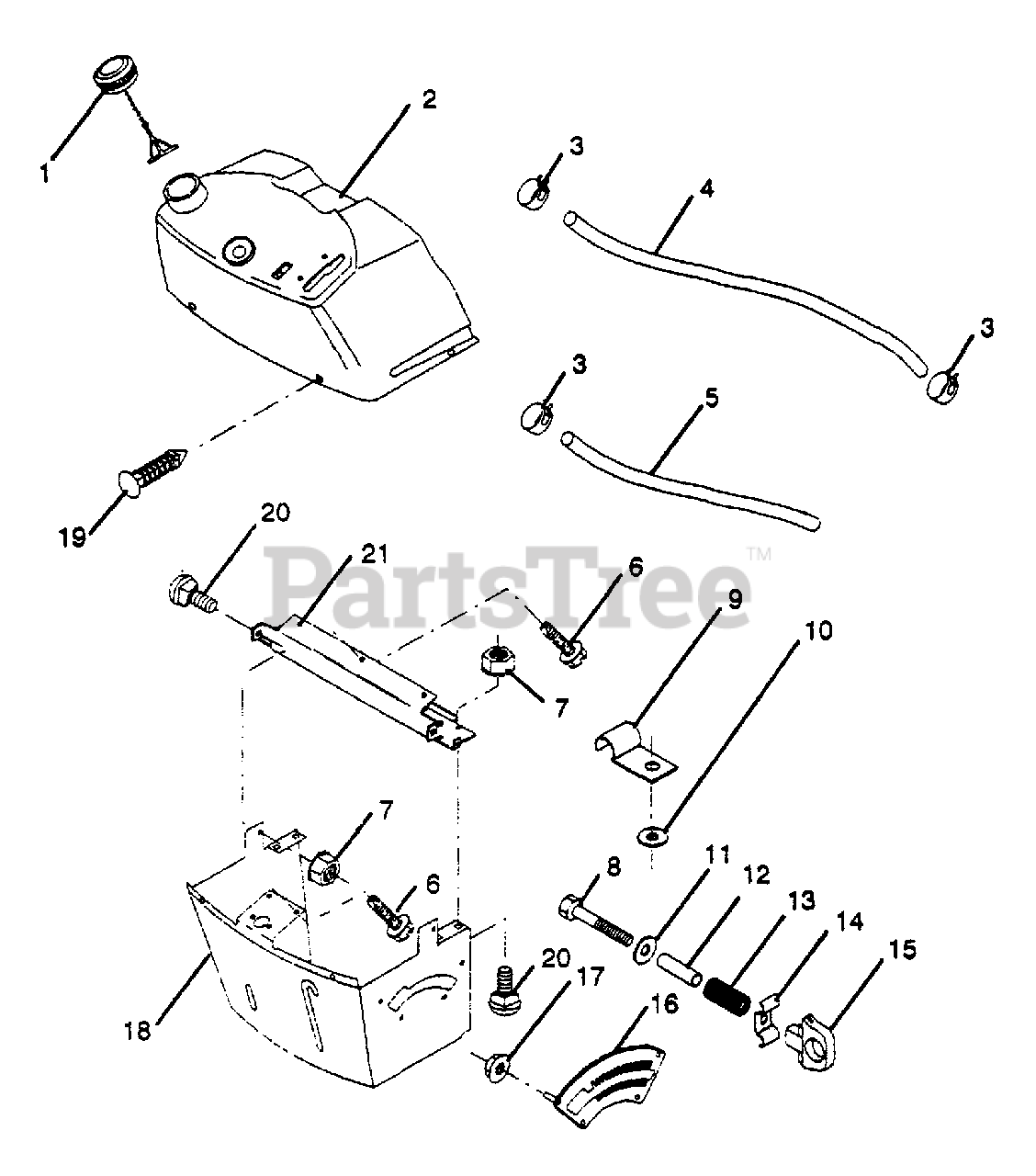

Dash Parts Diagram

  • Title

1

Husqvarna 532127399

Cap, Fuel
(Superseded to 532142187)

$

$

Not available

2

Husqvarna 532127390

Assembly, Dash & Fuel Tank
(Superseded to 532138395)

$

$

Not available

3

Husqvarna 532123487

Clamp, Hose

$7.49

$

In Stock, Qty 16

0

4

Husqvarna 532008548

Line, Fuel

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 532008544

Line, Fuel
(Superseded to 532000295)

$

$

Not available

6

Husqvarna 817111312

Screw, Hex Hd. Washer

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 873510400

Nut, Hex Keps 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 874760432

Bolt, Fin. Hex 1/4-20 x 2

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532124996

Clip, Fuel line
(Superseded to 532002751)

$

$

Not available

10

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

11

Husqvarna 819111116

Washer 11/32 x 11 /16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532123494

Spacer, Split

$

$

Not available

13

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532123493

Clip, Height Adjustment

$

$

Not available

15

Husqvarna 532126115

Knob, Height Stop

$

$

Not available

16

Husqvarna 532122023

Adjustment, Quadrant Height

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532124346

Nut, Self Thread 3/16-18

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 532121789

Support, Dash

$

$

Not available

19

Husqvarna 532122017

Snap, Plastic

$2.99

$

Usually ships in 3-10 days

0

20

Husqvarna 872110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532122016

Brace, Cross

$

$

Not available
