LT 112 (954000191-A) - Husqvarna Lawn Tractor (1990-11) Engine/Throttle Parts Diagram

Lawn Tractor

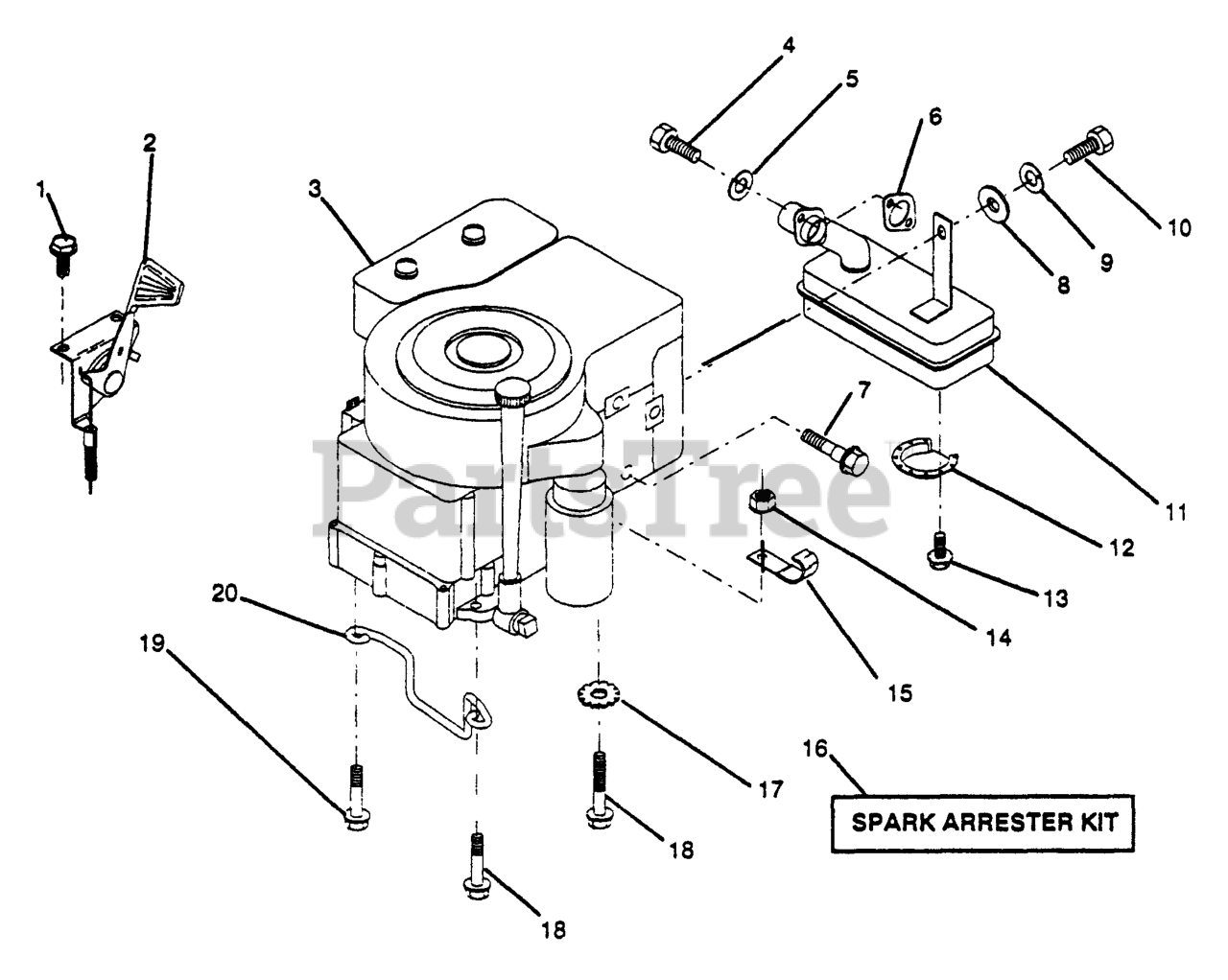

Engine/Throttle Parts Diagram

  • Title

1

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, only 3 left!

0

2

Husqvarna 532122014

CONTROL
(Superseded to 532132752)

$

$

Not available

3

Husqvarna 532124136

Engine, Briggs and Stratton

Note: Model No. 281707; Type No. 0412-01

$

$

Not available

4

Husqvarna 871070512

SCREW
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532125593

GASKET ENGINE
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532121094

BOLT T

$

$

Not available

8

Husqvarna 819101216

WASHER
(Superseded to 734115441)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 874780412

BOLT
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532123676

MUFFLER
(Superseded to 532137437)

$

$

Not available

12

Husqvarna 532101326

DEFL MUFFLER LTV

$

$

Not available

13

Husqvarna 817030808

SCREW
(Superseded to 532161464)

$

$

Not available

14

Husqvarna 873510600

NUT

$

$

Not available

15

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

16

Husqvarna 532121851

SPARK ARREST

Note: (Optional equipment)

$

$

Not available

17

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 817490632

Screw, Hex Wsh Hd Thdrol 3/8-16 x 2

$

$

Not available

19

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

20

Husqvarna 532126636

KEEPER,DR BELT GR

$

$

Not available

Husqvarna 532120601

DECAL T

Note: (Engine)

$

$

Not available
