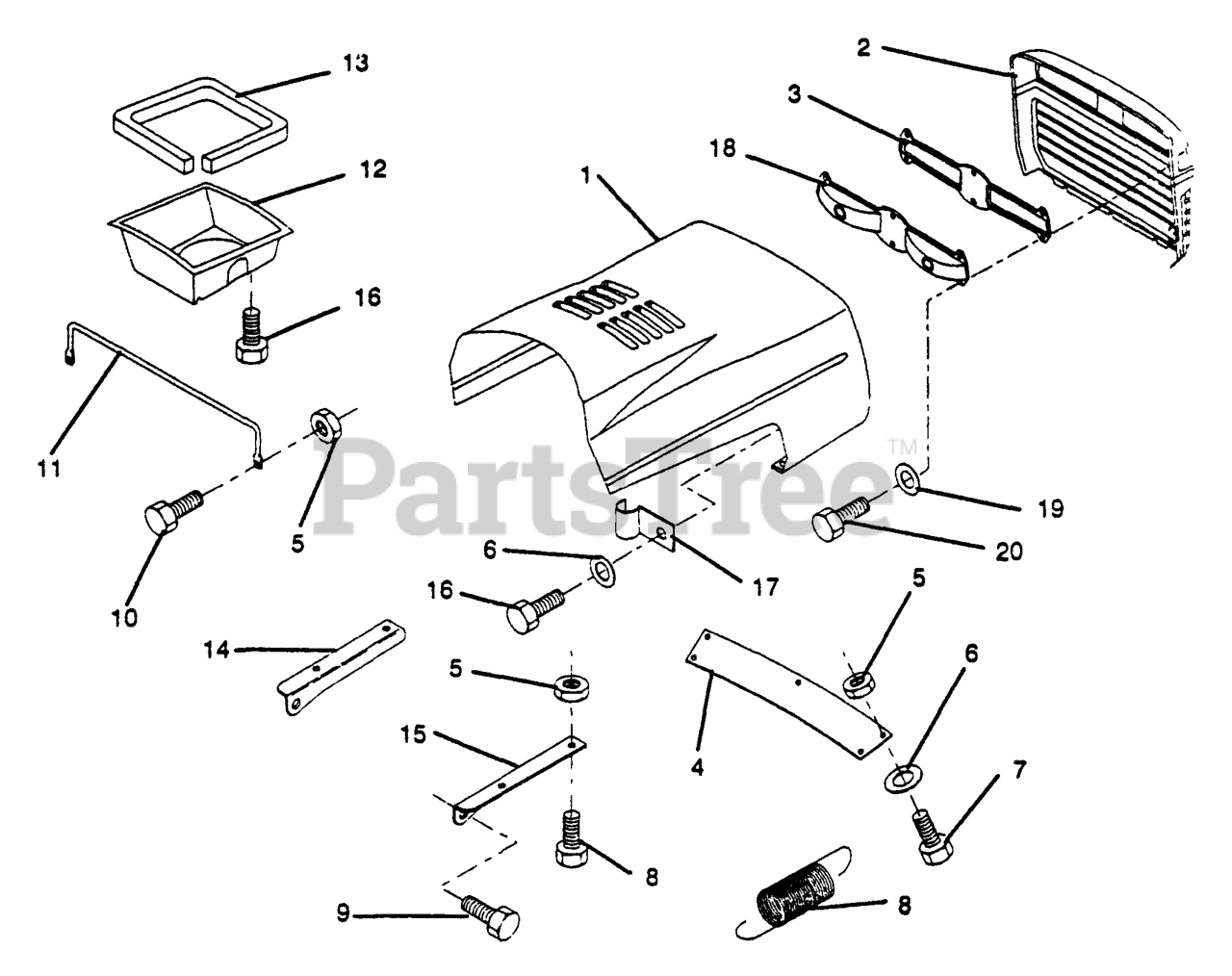

LT 112 (954000191-A) - Husqvarna Lawn Tractor (1990-11) Hood Parts Diagram

Lawn Tractor

Hood Parts Diagram

  • Title

1

Husqvarna 532124968

HOOD
(Superseded to 532140463)

$

$

Not available

2

Husqvarna 532125088

GRILL

$

$

Not available

3

Husqvarna 532127888

LENS

$

$

Not available

4

Husqvarna 532124969

GRILL STRAP

$

$

Not available

5

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 819091016

WASHER
(Superseded to 596582301)

$3.49

$

In Stock, Qty 12

0

7

Husqvarna 874780410

BOLT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532124657

EXT SPRING

$

$

Not available

9

Husqvarna 532126675

BOLT, SHOULDER
(Superseded to 532139888)

$4.99

$

In Stock, Qty 16

0

10

Husqvarna 874780412

BOLT
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532123693

BRACE,HOOD

$

$

Not available

12

Husqvarna 532123840

DUCT,AIR

$

$

Not available

13

Husqvarna 532120537

FOAM STRIP LT

$

$

Not available

14

Husqvarna 532122548

BRKT HOOD LH

$

$

Not available

15

Husqvarna 532122549

BRKT HOOD RH

$

$

Not available

16

Husqvarna 817411310

SCREW

$

$

Not available

17

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

18

Husqvarna 532127177

LIGHT BOX

$

$

Not available

19

Husqvarna 19091016

Washer
(Superseded to 819091016)

$

$

Not available

20

Husqvarna 532124346

NUT.PUSH.3/16

$9.49

$

Usually ships in 3-10 days

0

Husqvarna 532127409

HOOD DECAL

Note: (Hood L.H.)

$

$

Not available

Husqvarna 532127410

HOOD DECAL

Note: (Hood R.H.)

$

$

Not available

Husqvarna 532127480

DECAL SIDE PANEL

Note: (Side Panel)

$

$

Not available

Husqvarna 532127420

GRILL DECAL

Note: (Grill Logo)

$

$

Not available
