LT 112 (954000191-A) - Husqvarna Lawn Tractor (1990-11) Transaxle Parts Diagram

Lawn Tractor

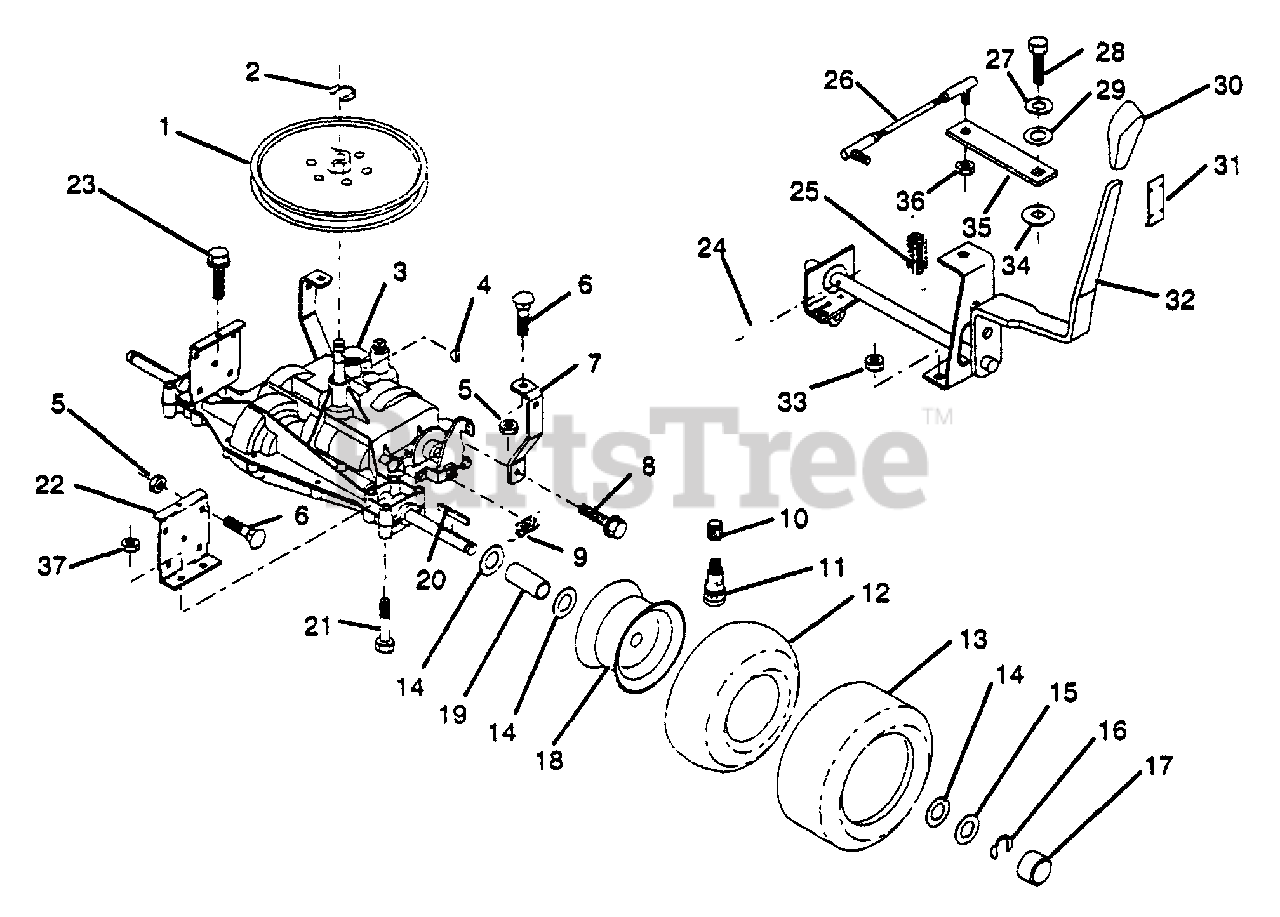

Transaxle Parts Diagram

  • Title

1

Husqvarna 532123385

Pulley

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 13

0

3

Husqvarna 532123655

Transaxle, Foote Dana, 6 Speed

Note: Model No. 4360-18

$

$

Not available

4

Husqvarna 532125096

Key, Woodruff #9

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532123378

Strap, Torque

$

$

Not available

8

Husqvarna 817490508

Screw, Hex Thdrol. 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532110422

Spring, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

10

Husqvarna 532059192

Cap, Valve

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532065139

Stem, Valve

$10.99

$

In Stock, Qty 20+

0

12

Husqvarna 532008134

Tube

$67.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532123411

Tire, Rear

$109.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 812000001

E-Ring

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 532104757

Cap, Axle

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532124973

Rim

$

$

Not available

19

Husqvarna 532123409

Spacer

$

$

Not available

20

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 874760644

Bolt, Fin, Hex 3/8-16 UNC x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532123377

Bracket, Transaxle

$

$

Not available

23

Husqvarna 817490512

Screw, 5/16-18 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 876020416

Pin, Cotter 1/8 X 1

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532123393

Spring, Extension
(Superseded to 532128085)

$

$

Not available

26

Husqvarna 532123632

Link, Shift

$

$

Not available

27

Husqvarna 810040400

Washer, Lock Hvy. Helical Spring 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

28

Husqvarna 871040412

Bolt, Fin, Hex 1/4-28 UNF x 3/4 Gr.8

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532122011

Knob, Shift Control

$

$

Not available

31

Husqvarna 532123692

Retainer, Knob

$

$

Not available

32

Husqvarna 532125976

Assembly, Shift Handle

$

$

Not available

33

Husqvarna 873510500

Nut, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

In Stock, only 1 left!

0

35

Husqvarna 532123539

Arm, Shift

$

$

Not available

36

Husqvarna 873810500

Nut, Hex Nylon 5/16-24
(Superseded to 873610500)

$

$

Not available

37

Husqvarna 873680600

Nut, Crownlock 3/8 -16 UNC

$3.99

$

Usually ships in 3-10 days

0
