LT 112 (954000392) - Husqvarna Lawn Tractor (1992-06) Seat Parts Diagram

Lawn Tractor

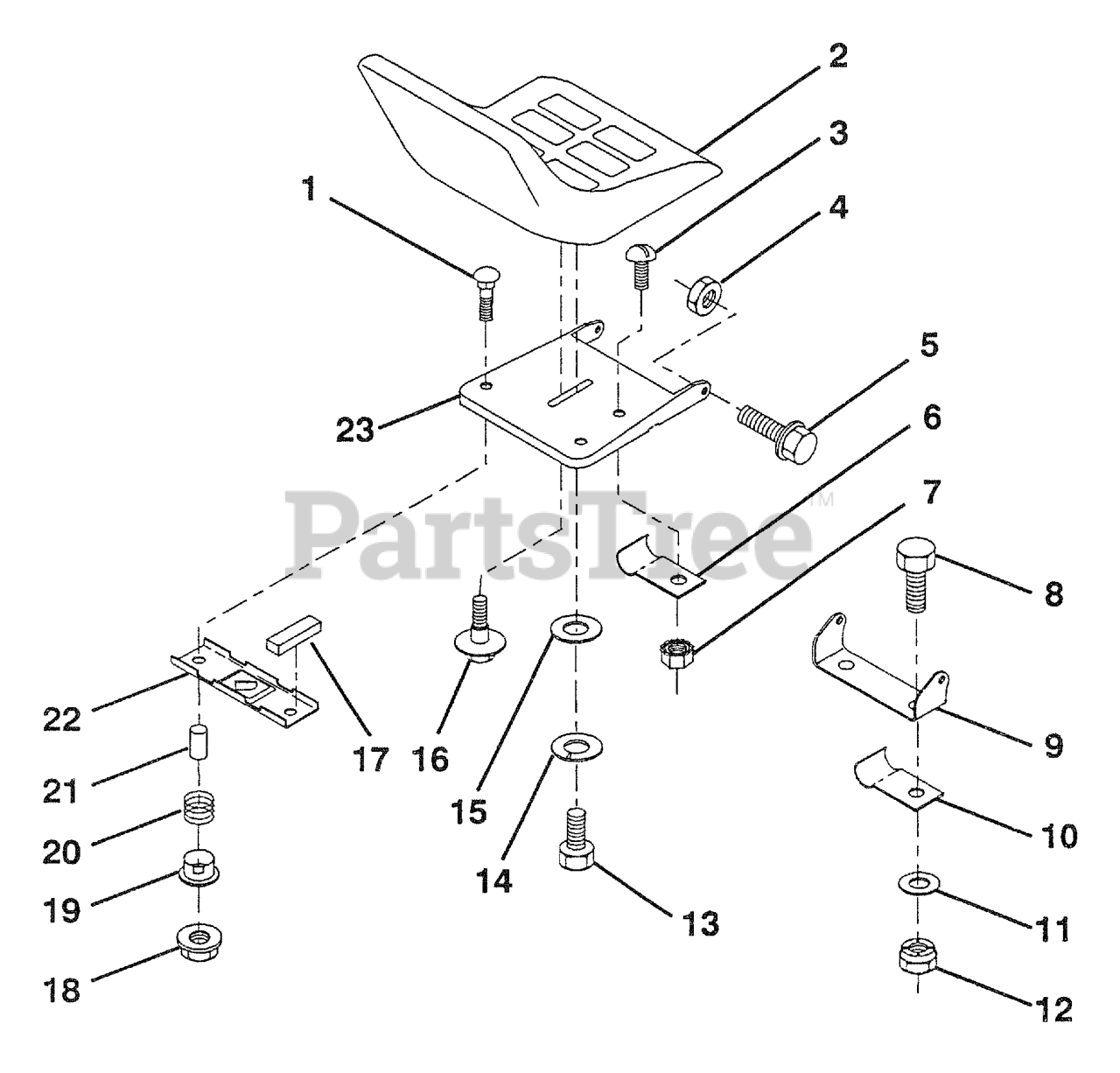

Seat Parts Diagram

  • Title

1

Husqvarna 872050411

Bolt, Carriage 1/4-20 x 1-3/8

$

$

Not available

2

Husqvarna 532130875

SEAT
(Superseded to 532401042)

$205.99

$

In Stock, only 2 left!

0

3

Husqvarna 874641008

SCREW **

$

$

Not available

4

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

5

Husqvarna 532105529

BOLT, SHOULDER LT
(Superseded to 532139888)

$4.99

$

In Stock, Qty 16

0

6

Husqvarna 532124967

CLIP T

$

$

Not available

7

Husqvarna 873951000

Nut, Keps #10-32 UNF

$

$

Not available

8

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 12

0

9

Husqvarna 532126656

BRKT,SEAT PIVOT

$

$

Not available

10

Husqvarna 532126471

CLIP,INSULATOR

$

$

Not available

11

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 874780814

BOLT
(Superseded to 871110814)

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040800

LOCKWASHER

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 819171912

WASHER

$4.99

$

In Stock, Qty 9

0

16

Husqvarna 532127018

BOLT,SHOULD

$5.99

$

In Stock, only 1 left!

0

17

Husqvarna 532129251

Strip, Foam

$

$

Currently unavailable

18

Husqvarna 532123976

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532121248

BUSHING

$

$

Not available

20

Husqvarna 532121250

SPRING

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532121249

SPACER SPLIT

$5.99

$

In Stock, only 2 left!

0

22

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$11.99

$

In Stock, only 1 left!

0

23

Husqvarna 532131451

SEAT PAN
(Superseded to 532195530)

$

$

Not available
