LT-12 (133K676F190) - White Outdoor 38" Lawn Tractor (1993)

38" Lawn Tractor

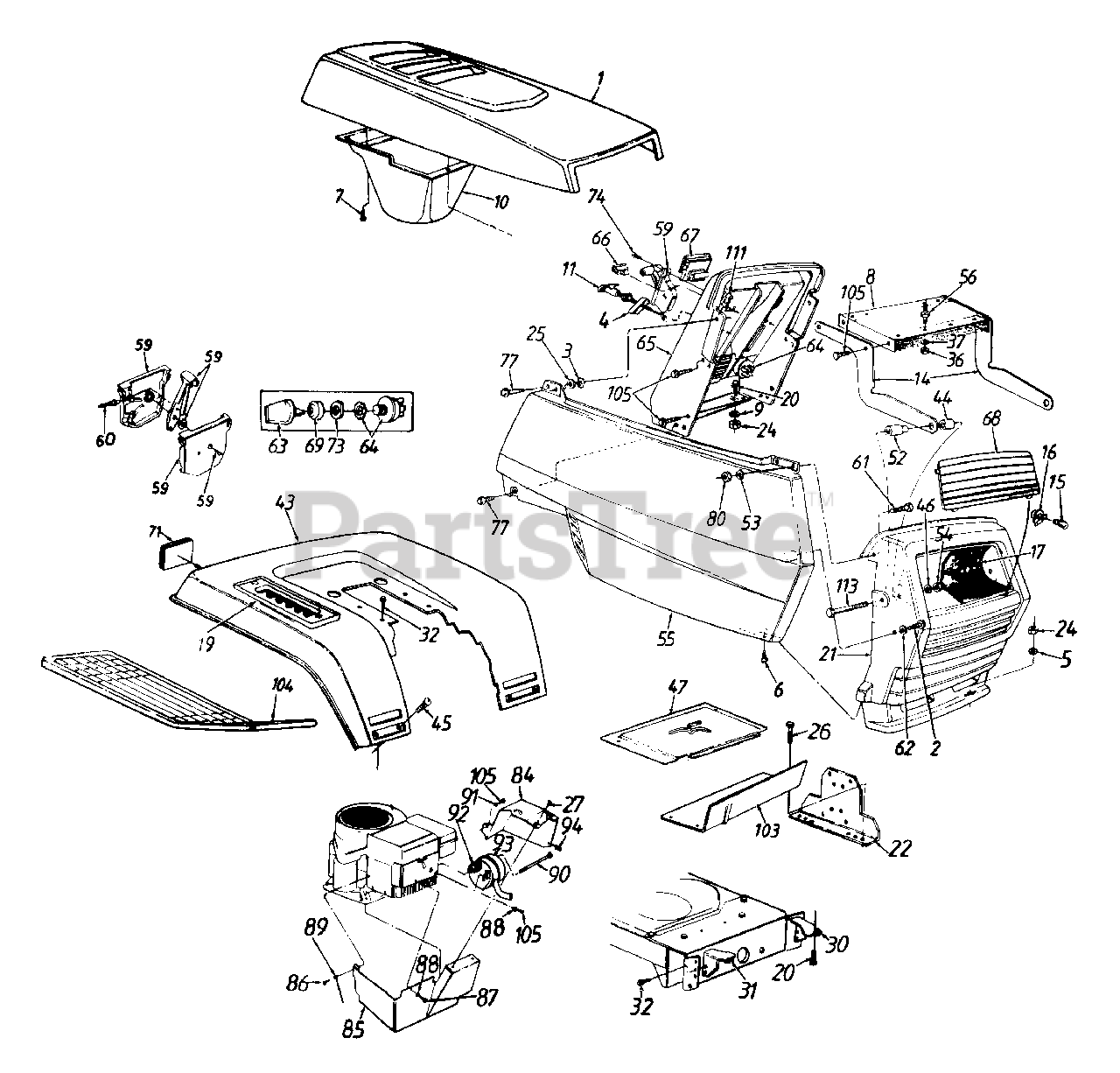

LT-12 (133K676F190) - White Outdoor 38" Lawn Tractor (1993) > Parts Diagrams (10) > Hood And Rear Fender Assembly

  • Title
731-1429

1

Hood

Part# 731-1429 (Superseded to 931-1429)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Not available

710-0896

2

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

Part# 710-0896

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

726-0233

3

Bolt Retainer 1/4" I.D.

Part# 726-0233

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.88

17782

4

Retainer Clip

Part# 17782

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.74

736-3078

5

Fl-Wash. .34" I.D. x 1"

Part# 736-3078

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

710-0351

6

Truss Mach. B-Tap Scr. #10 x .5" Lg.

Part# 710-0351

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-0200

7

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

Part# 710-0200

OEM Warranty Repair Part for White Outdoor

Not available

16903A

8

Hood Plate

Part# 16903A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE-HOOD

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

9

UNKNOWN

Part#

Not available

731-1073

10

Air Duct

Part# 731-1073

OEM Warranty Repair Part for White Outdoor

Not available

746-3021

11

Choke Control 29" Lg.

Part# 746-3021

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.13

16902

14

Hood Hinge

Part# 16902

OEM Warranty Repair Part for White Outdoor

Not available

725-0963

15

Lamp

Part# 725-0963 (Superseded to 925-0963)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.94

725-1649

16

Twist Lock - Lamp Socket

Part# 725-1649 (Superseded to 925-1649)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.57

777-8516

17

Reflector - Headlight

Part# 777-8516

Not available

17469

19

7-Speed Selector Plate

Part# 17469

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE-SELECTOR-7 SPEED

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

20

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

731-1430

21

Grille

Part# 731-1430 (Superseded to 931-1430B)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Not available

17300D

22

Dash Support Bracket

Part# 17300D

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

712-0237

?23

Hex L-Nut 5/16-24 Thd.

Part# 712-0237 (Superseded to 912-0237)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 8 to 14 business days

Your price: $3.23

712-0267

24

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0176

25

Fl-Wash. 1/4" I.D. x .93" O.D.

Part# 736-0176 (Superseded to 936-0176)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

710-0603

26

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

Part# 710-0603

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

710-0429

27

Hex B-Tap Scr. #10 x .38" Lg.

Part# 710-0429 (Superseded to 910-0429)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.37

705-0167

30

Grille Mount Brk't. - L.H.

Part# 705-0167

OEM Warranty Repair Part for White Outdoor

Not available

705-0166

31

Grille Mount Brkt. - R.H.

Part# 705-0166

OEM Warranty Repair Part for White Outdoor

Not available

710-0726

32

Hex Wash. Hd. AB-Tap Ser, 5/16 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

736-0242

?33

Bell-Wash. .345" I.D. x .88"

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-0287

36

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0270

37

Bell-Wash. .265" I.D. x .75"

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

17324B

43

Rear Fender

Part# 17324B

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

BRILLIANT GREEN (0480)

No Longer Available FENDER-RR

Part# BRILLIANT GREEN (0480)

OEM Warranty Repair Part for White Outdoor

Not available

CHARCOAL GRAY (0483)

No Longer Available FENDER-RR

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

OLD CUB YELLOW (0498)

No Longer Available FENDER-RR

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

CUB BEIGE (0499)

No Longer Available FENDER-RR

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

No Longer Available FENDER-RR

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available FENDER-RR

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

Fender

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

No Longer Available FENDER-RR

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

No Longer Available FENDER-RR

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

MIDNIGHT BLUE (0667)

No Longer Available FENDER-RR

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN YELLOW (0674)

No Longer Available FENDER-RR

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for White Outdoor

Not available

CUB BLUE (0685)

No Longer Available FENDER-RR

Part# CUB BLUE (0685)

OEM Warranty Repair Part for White Outdoor

Not available

SIMPLICITY ORANGE (0686)

No Longer Available FENDER-RR

Part# SIMPLICITY ORANGE (0686)

OEM Warranty Repair Part for White Outdoor

Not available

750-0755

44

Spacer .33" I.D. x .625" O.D.

Part# 750-0755

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.86

710-0167

45

Carriage Bolt 1/4-20 x .50" Lg.

Part# 710-0167

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.50

736-0278

46

Fl-Wash. .328" I.D. x .68" O.D.

Part# 736-0278

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.69

47

UNKNOWN

Part#

Not available

750-0754

52

Shld. Spacer .33" I.D.

Part# 750-0754

OEM Warranty Repair Part for White Outdoor

Not available

736-0142

53

Fl-Wash. .281" I.D. x .5" O.D.

Part# 736-0142 (Superseded to 936-0142)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

712-0158

54

Hex Cent. L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.10

731-1432

55

Side Cover - R.H.

Part# 731-1432

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Not available

731-1431

Side Cover - L.H.

Part# 731-1431

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Not available

710-1034

56

Double Ended Stud 1/4-20 Thd.

Part# 710-1034

OEM Warranty Repair Part for White Outdoor

Not available

831-0823A

59

Throttle Control Box Ass'y.

Part# 831-0823A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.59

746-0501

60

Throttle Control Wire 18.5" Lg.

Part# 746-0501

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.24

710-0258

61

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

736-0173

62

Fl-Wash. .281" I.D. x .73" O.D.

Part# 736-0173

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

725-1341B

63

Ignition Key

Part# 725-1341B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.84

725-0267

64

Ignition Switch

Part# 725-0267 (Superseded to 925-0267B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.44

731-0961A

65

Dash Panel

Part# 731-0961A

OEM Warranty Repair Part for White Outdoor

Not available

725-0634

66

Light Switch

Part# 725-0634 (Superseded to 925-0634)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.81

725-0925

67

Ammeter

Part# 725-0925 (Superseded to 925-0925)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.19

731-1038

68

Lens

Part# 731-1038 (Superseded to 931-1038A)

OEM Warranty Repair Part for White Outdoor

Not available

725-1347

69

Ignition Switch Cap

Part# 725-1347

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

730-3000

71

Reflector

Part# 730-3000 (Superseded to 930-3000)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.24

725-1346

73

Ignition Switch Nut

Part# 725-1346 (Superseded to 925-1346)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.31

710-0779A

74

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

Part# 710-0779A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

710-0642

77

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

Part# 710-0642

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

712-0291

80

Hex L-Nut 1/4-20 Thd.

Part# 712-0291 (Superseded to 912-0291)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

683-0042

84

Muffler Heat Shield - L.H.

Part# 683-0042 (Superseded to 683-0042A)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Not available

16936

85

Muffler Heat Shield - R.H.

Part# 16936

OEM Warranty Repair Part for White Outdoor

Not available

710-0323

86

Pan Hd. Mach. Scr. 5/16-18 x .75" Lg.

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

710-0294

87

Hex Bolt 1/4-20 x 3/8" Lg.

Part# 710-0294

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.26

736-0175

88

Spr. Wash. .265" I.D.

Part# 736-0175 (Superseded to 936-0175)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

725-0980

89

Ground Wire

Part# 725-0980

OEM Warranty Repair Part for White Outdoor

Not available

738-0636

90

Shld. Bolt 7/16" Dia. x 3-5/8" Lg.

Part# 738-0636 (Superseded to 938-0636)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.45

736-0329

91

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

721-0208

92

Gasket

Part# 721-0208 (Superseded to BS-692236)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.75

751-0465

93

Muffler

Part# 751-0465 (Superseded to 951-0465A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $108.57

712-0147

94

Speed Nut #10-24 Thd.

Part# 712-0147

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

17633A

103

Gasoline Tank Support

Part# 17633A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

104

UNKNOWN

Part#

Not available

710-0599

105

Hex Tap Scr. 1/4-20 x .5" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

712-0185

111

Speed Nut 1/4-20 Thd.

Part# 712-0185

OEM Warranty Repair Part for White Outdoor

Not available

710-0176

113

Hex Bolt 5/16-18 x 2.75"

Part# 710-0176

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

777-6549

Plastic Logo on Hood Side Labels

Part# 777-6549

OEM Warranty Repair Part for White Outdoor

Not available

777-0186

Plastic Logo - Grille

Part# 777-0186

Not available

777-8214

White Label - Fender

Part# 777-8214

Not available

777-4777

Reflective Label - Seat Back

Part# 777-4777

OEM Warranty Repair Part for White Outdoor

Not available

777-8209A

LT-12 Side Panel Labels

Part# 777-8209A

Not available
