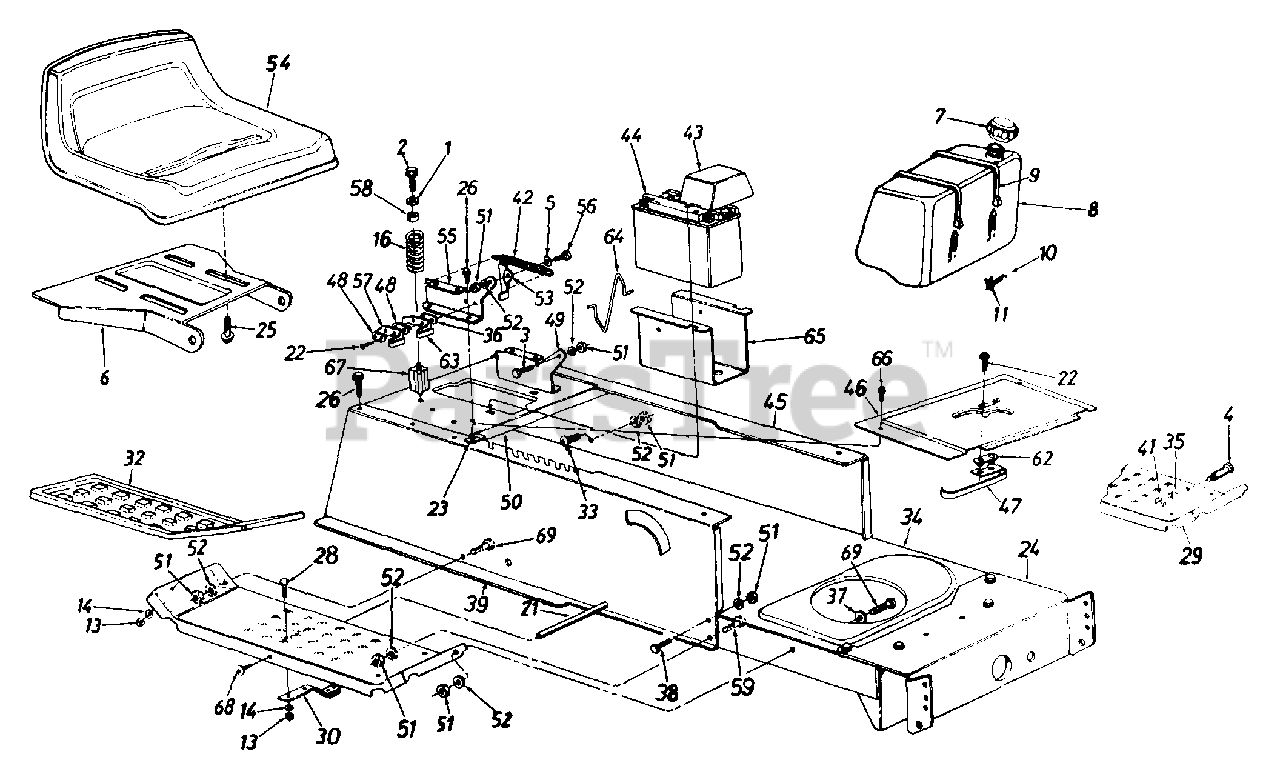

LT-12 (133K676F190) - White Outdoor 38" Lawn Tractor (1993) > Parts Diagrams (10) > Seat And Lower Frame Assembly

  • Title
736-0159

1

Fl-Wash. .344" I.D. x .875"

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-1208

2

Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg.

Part# 710-1208

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.50

738-0155

3

Shld. Bolt .437" Dia. x .162"

Part# 738-0155 (Superseded to 938-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.45

738-0145

4

Shld. Bolt .50" Dia. x .84"

Part# 738-0145 (Superseded to 938-0145)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.45

736-0141

5

Spr.-Wash. .445" I.D. x .75

Part# 736-0141 (Superseded to 936-0141)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

783-0039

6

Seat Pivot Bracket

Part# 783-0039

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SEAT PIVOT BRACKET BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $54.10

MTD/TROY-BILT RED (0638)

SEAT PIVOT BRACKET BLACK

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $54.10

OYSTER GRAY (0662)

SEAT PIVOT BRACKET BLACK

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $54.10

MIDNIGHT BLUE (0667)

SEAT PIVOT BRACKET BLACK

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $54.10

751-3071

7

Fuel Cap

Part# 751-3071 (Superseded to 751-0603A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.15

751-0553

8

Fuel Tank

Part# 751-0553 (Superseded to 751-0555B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $63.76

726-0209

9

Tie Strap

Part# 726-0209 (Superseded to 726-0230)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.74

751-0535-15

10

Fuel Line

Part# 751-0535-15 (Superseded to 751-10349-16)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.05

726-0205

11

Hose Clamp

Part# 726-0205

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.73

712-0287

13

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0329

14

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

732-0672

16

Compression Spring

Part# 732-0672 (Superseded to 732-0735A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.08

738-0526

21

Running Board Rod

Part# 738-0526

OEM Warranty Repair Part for White Outdoor

Not available

710-0227

22

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

Part# 710-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

726-0139

23

Speed Nut #10Z

Part# 726-0139

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

17621

24

Front Pivot Brkt.

Part# 17621 (Superseded to 783-0041B)

OEM Warranty Repair Part for White Outdoor

Not available

710-0623

25

Hex Tap Scr. 3/8-16 x .75"

Part# 710-0623

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.88

710-0726

26

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-0134

28

Carriage Bolt 1/4-20 x .62"

Part# 710-0134

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

17770

29

Running Board (R.H. & L.H.)

Part# 17770 (Superseded to 17770H)

OEM Warranty Repair Part for White Outdoor

Not available

761-0168A

30

Blade Brake Ass'y.

Part# 761-0168A (Superseded to 961-0168D)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.24

731-0911

32

Rubber Foot Pad - L.H.

Part# 731-0911

OEM Warranty Repair Part for White Outdoor

Not available

731-0912

Rubber Foot Pad - R.H.

Part# 731-0912

OEM Warranty Repair Part for White Outdoor

Not available

710-0323

33

Truss Mach. Scr. 5/16-18 x .75" Lg.

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

17619B

34

Lower Frame

Part# 17619B

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

35

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

726-0278

36

lnsulator Boss Plate

Part# 726-0278

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.42

736-0264

37

Fl-Wash. .25" I.D. x .625" O.D.

Part# 736-0264 (Superseded to 936-0264)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.44

710-0118

38

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

17622C

39

Upper Frame - R.H.

Part# 17622C

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

SILVER FLAKE (0629)

FRAME-UPPER RH SID

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $76.89

POWDER BLACK (0637)

FRAME-UPPER RH SID

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $76.89

MTD/TROY-BILT RED (0638)

FRAME-UPPER RH SID

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $76.89

712-0798

41

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

732-0581B

42

Extension Spring 5.31" Lg.

Part# 732-0581B (Superseded to 932-0581B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.31

731-1200

43

Battery Cover

Part# 731-1200

OEM Warranty Repair Part for White Outdoor

Not available

725-1633

44

12-V Battery

Part# 725-1633 (Superseded to 753-0607)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $128.58

17623

45

Upper Frame - L.H.

Part# 17623 (Superseded to 783-0043)

OEM Warranty Repair Part for White Outdoor

Not available

17286A

46

Shift Cover

Part# 17286A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

COVER-SHIFT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.92

725-1643

47

Reverse Safety Switch

Part# 725-1643

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.65

726-0279

48

Insulator Plate

Part# 726-0279

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.39

17951

49

Seat Pivot Brkt. Support - L.H.

Part# 17951

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SEAT SUPPORT BRACKET-LH BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.37

17953

50

Hitch Plate

Part# 17953

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available PLATE-HITCH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

51

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0119

52

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

17239A

53

Seat Lift Brkt.

Part# 17239A (Superseded to 17239C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.00

757-0338

54

Seat 10-5/8" High

Part# 757-0338 (Superseded to 957-0360A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $232.60

17950

55

Seat Pivot Brkt. Support - R.H.

Part# 17950

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SEAT SUPPORT BRACKET-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.11

738-0296

56

Shld. Bolt .437" Dia. x .268"

Part# 738-0296 (Superseded to 938-0296)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.88

725-1303

57

Spring Switch

Part# 725-1303 (Superseded to 925-1303)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.13

722-0160

58

Bushing

Part# 722-0160

OEM Warranty Repair Part for White Outdoor

Not available

710-0650

59

Hex Wash. TT-Tap Scr. 5/16-18 x 7/8" Lg.

Part# 710-0650

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.73

726-0320

62

Insulator Nut Plate

Part# 726-0320 (Superseded to 926-0320)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

725-1439

63

Safety Switch (Seat)

Part# 725-1439

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.32

732-0674

64

Battery Tray Clip

Part# 732-0674

OEM Warranty Repair Part for White Outdoor

Not available

17952

65

Battery Tray

Part# 17952 (Superseded to 17952A-0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0351

66

Truss Mach. B-Tap Scr. #10 x .5" Lg.

Part# 710-0351

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

748-0347

67

Spring Spacer

Part# 748-0347 (Superseded to 748-0347A)

OEM Warranty Repair Part for White Outdoor

Not available

710-1221

68

Pan Hd. Cutting Scr. 5/16-18 x .75" Lg.

Part# 710-1221

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

69

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76
