LT-12 (133K676F190) - White Outdoor 38" Lawn Tractor (1993)

38" Lawn Tractor

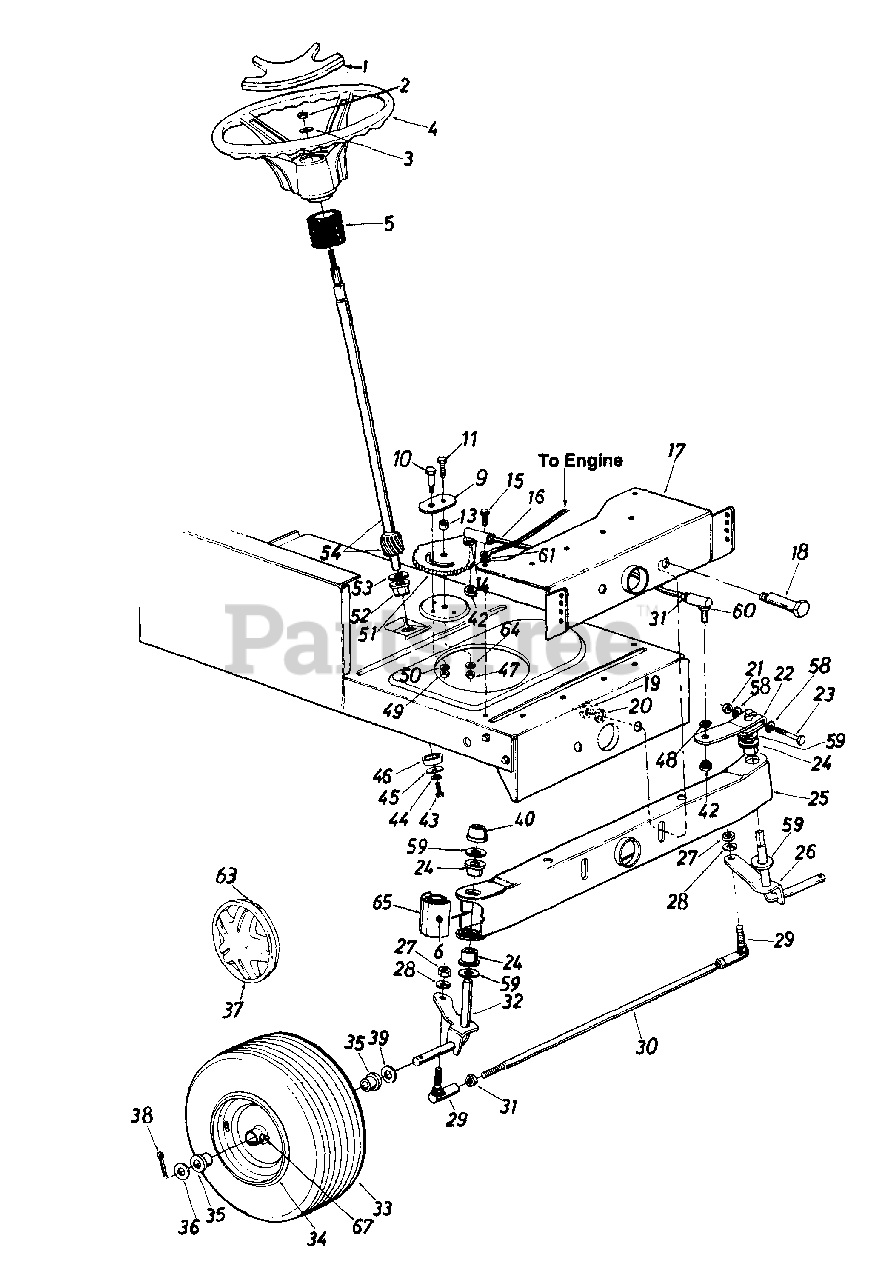

LT-12 (133K676F190) - White Outdoor 38" Lawn Tractor (1993) > Parts Diagrams (10) > Steering And Wheel Assembly

  • Title
731-1344

1

Steering Wheel Cap

Part# 731-1344

OEM Warranty Repair Part for White Outdoor

Not available

712-0411

2

Hex L-Nut 5/16-24 Thd.

Part# 712-0411 (Superseded to 912-0411)

OEM Warranty Repair Part for White Outdoor

Not available

736-0242

3

Belleville Wash. .345" I.D.

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

631-0005

4

Steering Wheel

Part# 631-0005 (Superseded to 931-0005)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $76.08

731-0954

5

Steering Bellow - 9"

Part# 731-0954 (Superseded to 931-0954)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.98

737-0280

6

Grease Fitting

Part# 737-0280 (Superseded to 937-0280)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.07

17198A

9

Retainer Plate

Part# 17198A (Superseded to 783-04644P)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.49

738-0141

10

Shoulder Bolt .437" Dia. x .35" Lg. - 5/16-18 Thd.

Part# 738-0141 (Superseded to 938-0141)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.00

710-0152

11

Hex Bolt 3/8-24 x 1.0" Lg. (Grade 5)

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

750-0535

13

Spacer .380" I.D. x .625" O.D. x .227

Part# 750-0535 (Superseded to 950-0535)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0217

14

L-Wash. 3/8" I.D. (H.D.)

Part# 736-0217 (Superseded to 936-0217)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.83

710-0726

15

Hex Wash. Hd. Self-Tap Scr.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

711-0788

16

Steering Drag Link

Part# 711-0788 (Superseded to 753-0655)

OEM Warranty Repair Part for White Outdoor

Not available

17621

17

Front Pivot Brkt.

Part# 17621 (Superseded to 783-0041B)

OEM Warranty Repair Part for White Outdoor

Not available

738-0527

18

Shoulder Bolt .498" Dia. x 2.04" Lg. - 3/8-16 Thd.

Part# 738-0527 (Superseded to 938-0527)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.79

712-0798

19

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0169

20

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

712-0411

21

Hex L-Nut 5/16-24 Thd.

Part# 712-0411 (Superseded to 912-0411)

OEM Warranty Repair Part for White Outdoor

Not available

16481A

22

Steering Arm Front Axle

Part# 16481A (Superseded to 983-0055-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $31.03

710-0772

23

Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5)

Part# 710-0772

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

741-0487A

24

Hex Flg. Brg. .632 I.D.

Part# 741-0487A (Superseded to 741-0487C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.04

683-0002

25

Pivot Bar Ass'y.

Part# 683-0002

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PIVOT BAR KIT W/FLANGE BEARING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $83.11

CUB BLUE (0685)

PIVOT BAR KIT W/FLANGE BEARING

Part# CUB BLUE (0685)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $83.11

SIMPLICITY ORANGE (0686)

PIVOT BAR KIT W/FLANGE BEARING

Part# SIMPLICITY ORANGE (0686)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $83.11

PINE GREEN (0687)

PIVOT BAR KIT W/FLANGE BEARING

Part# PINE GREEN (0687)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $83.11

SPRING GREEN (0688)

PIVOT BAR KIT W/FLANGE BEARING

Part# SPRING GREEN (0688)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $83.11

POLO GREEN (0689)

PIVOT BAR KIT W/FLANGE BEARING

Part# POLO GREEN (0689)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $83.11

BLACK JACK (0691)

PIVOT BAR KIT W/FLANGE BEARING

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $83.11

AGWAY BLUE (0692)

PIVOT BAR KIT W/FLANGE BEARING

Part# AGWAY BLUE (0692)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $83.11

17585

26

Front Axle Ass'y. - L.H.

Part# 17585

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $45.82

712-0241

27

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

736-0169

28

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

723-3018

29

Ball Joint 3/8-24 Thd.

Part# 723-3018 (Superseded to 923-3018)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.38

747-0753

30

Tie Rod

Part# 747-0753

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.13

712-0711

31

Hex Jam Nut 3/8-24 Thd.

Part# 712-0711

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

17584

32

Front Axle Ass'y. - R.H.

Part# 17584 (Superseded to 97584A-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $49.77

634-0059

33

Wheel Ass'y. Comp.

Part# 634-0059

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle Gray (0911)

No Longer Available WHEEL ASSY W/TIRE

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for White Outdoor

Not available

Dico Gray (0912)

No Longer Available

Part# Dico Gray (0912)

OEM Warranty Repair Part for White Outdoor

Not available

Kenda Gray (0916)

No Longer Available

Part# Kenda Gray (0916)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Beige (0931)

No Longer Available WHEEL ASSY W/TIRE

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Yellow (0941)

No Longer Available WHEEL ASSY W/TIRE

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for White Outdoor

Not available

Dico Yellow (0942)

No Longer Available WHEELASM W/TIRE

Part# Dico Yellow (0942)

OEM Warranty Repair Part for White Outdoor

Not available

734-0864

Tire Only

Part# 734-0864

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle (0901)

TIRE 15 X 6

Part# Carlisle (0901)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $89.53

Dico (0902)

TIRE 15 X 6 DICO T

Part# Dico (0902)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $89.53

Cheng (0904)

TIRE

Part# Cheng (0904)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $89.53

Duro (0905)

TIRE 15 X 6

Part# Duro (0905)

OEM Warranty Repair Part for White Outdoor

Not available

Kenda (0906)

TIRE-15X6 KENDA

Part# Kenda (0906)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $89.53

734-0255

Air Valve

Part# 734-0255 (Superseded to 934-0255)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

634-0051A

34

Front Wheel Rim Only

Part# 634-0051A

OEM Warranty Repair Part for White Outdoor

Variations

CUB BEIGE (0499)

WHEEL RIM 6 X 4.5

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

WHEEL RIM 6 X 4.5

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

WHEEL RIM 6 X 4.5

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

741-0569

35

Bearing

Part# 741-0569 (Superseded to 941-0569)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.88

736-0285

36

Fl-Wash. .635" I.D. x 1.59" O.D.

Part# 736-0285

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

734-1783

37

Front Wheel Hub Cap

Part# 734-1783 (Superseded to 734-1783A)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Not available

714-0470

38

Cotter Pin 1/8" Dia. x 1.25"

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

736-0187

39

Fl-Wash. .640" I.D. x 1.24" O.D.

Part# 736-0187

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

726-0214

40

Push Cap 5/8" Dia. Rod

Part# 726-0214

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.74

712-0446

42

Hex Jam Nut 3/8-24 Thd.

Part# 712-0446 (Superseded to 912-0446)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

710-0538

43

Hex L-Bolt 5/16-18 x .62"

Part# 710-0538

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0119

44

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0343

45

Fl-Wash. .33" I.D. x 1.25" O.D.

Part# 736-0343

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

750-0532

46

Spacer (Plastic)

Part# 750-0532 (Superseded to 950-0532)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.03

712-0214

47

Hex Cent. L-Nut 3/8-24 Thd.

Part# 712-0214 (Superseded to 912-0214)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.40

736-0169

48

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

712-0158

49

Hex Cent. L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.10

736-0119

50

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

717-0622A

51

Steering Gear Segment

Part# 717-0622A (Superseded to 717-0622C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $36.57

741-0225

52

Hex . Fig. Brg. .634 I.D.

Part# 741-0225 (Superseded to 941-0225)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0187

53

Fl-Wash. (Hardened)

Part# 736-0187

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

738-0743

54

Steering Shaft

Part# 738-0743 (Superseded to 738-0743A)

OEM Warranty Repair Part for White Outdoor

Not available

736-0271

58

Wave-Wash. .32" I.D. x .62" O.D.

Part# 736-0271 (Superseded to 936-0271)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0187

59

Fl-Wash. (Hardened)

Part# 736-0187

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

723-3018

60

Drag Link Ball Joint 3/8-24 Thd.

Part# 723-3018 (Superseded to 923-3018)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.38

736-0607

61

Ext. L-Wash. 5/16" I.D.

Part# 736-0607

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

727-0425A

63

Spring Clip

Part# 727-0425A (Superseded to 927-0425A)

OEM Warranty Repair Part for White Outdoor

Not available

736-0356

64

Bell-Wash. .39" I.D. x 1.38" O.D.

Part# 736-0356 (Superseded to 936-0356)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.66

731-1291

65

Pivot Bar End Cap

Part# 731-1291 (Superseded to 931-1291A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.82

737-0280

67

Grease Fitting

Part# 737-0280 (Superseded to 937-0280)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.07
