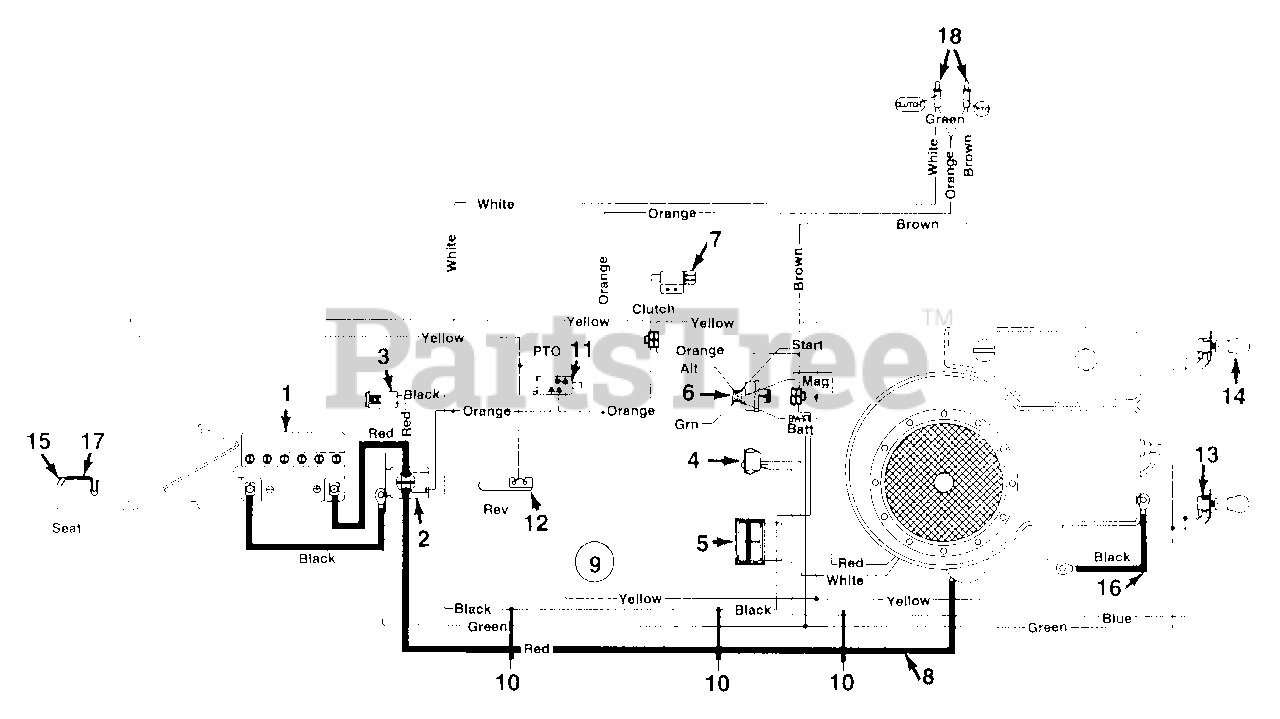

LT-12 (133K676F190) - White Outdoor 38" Lawn Tractor (1993) > Parts Diagrams (10) > Wiring Schematic

  • Title
725-1633

1

Battery

Part# 725-1633 (Superseded to 753-0607)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $128.58

725-1426

2

Solenoid

Part# 725-1426 (Superseded to 925-1426A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.35

725-1625

3

Fuse 7.5 Amps

Part# 725-1625

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.44

725-0634

4

Light Switch

Part# 725-0634 (Superseded to 925-0634)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.81

725-0925

5

Ammeter

Part# 725-0925 (Superseded to 925-0925)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.19

725-0267

6

Ignition Switch

Part# 725-0267 (Superseded to 925-0267B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.44

725-3169A

7

Safety Switch

Part# 725-3169A (Superseded to 925-04039)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.68

725-1081

8

Electric Wire 30" Lg.

Part# 725-1081 (Superseded to 629-0740)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.53

629-0069

9

Wire Harness

Part# 629-0069

OEM Warranty Repair Part for White Outdoor

Not available

726-0197

10

Cable Tie

Part# 726-0197

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.39

725-0803C

11

Safety Switch (Deck)

Part# 725-0803C (Superseded to 725-0803B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.11

725-1643

12

Safety Switch (Reverse)

Part# 725-1643

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.65

725-1649

13

Socket

Part# 725-1649 (Superseded to 925-1649)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.57

725-0963

14

Bulb (Headlight)

Part# 725-0963 (Superseded to 925-0963)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.94

725-1303

15

Safety Switch (Seat)

Part# 725-1303 (Superseded to 925-1303)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.13

725-0980

16

Ground Wire 7.5" Lg.

Part# 725-0980

OEM Warranty Repair Part for White Outdoor

Not available

725-1439

17

Safety Switch (Seat)

Part# 725-1439

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.32

725-1365

18

Bulb

Part# 725-1365 (Superseded to 925-1365)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.01
