LT-12 (138-656-190) - White Outdoor 38" Lawn Tractor (1988) 38" Deep Mowing Deck Assembly Parts Diagram

38" Lawn Tractor

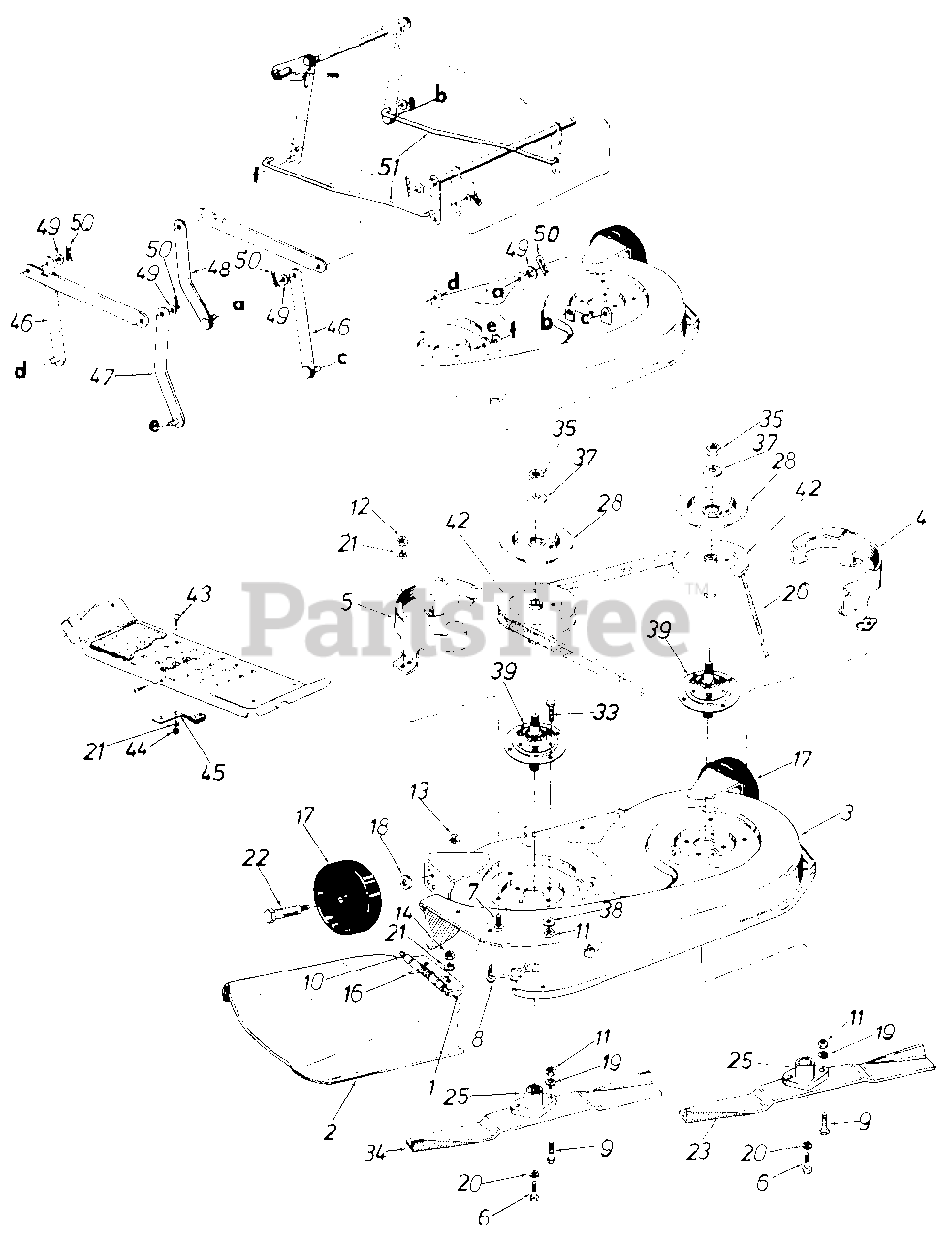

38" Deep Mowing Deck Assembly Parts Diagram

  • Title

1

White Outdoor 16521

Chute Bracket

$

$

Not available

2

White Outdoor 16566

Chute Deflector
(Superseded to 753-0567)

$127.99

$

Usually ships in 3-6 days

0

3

White Outdoor 16575

38" Deep Deck Ass'y.
(Superseded to 753-04376)

$

$

Not available

White Outdoor 801-6576

38" Deep Deck Ass'y. Comp.
(Superseded to 753-0694)

Note: (For Service Only)

$

$

Not available

4

White Outdoor 16607

Belt Guard Deck-L.H.

Variations

White Outdoor 16607-0637

GUARD-BELT-LH - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 16608

Belt Guard Deck-R.H.

$

$

Not available

6

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00"
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

7

White Outdoor 710-0195

Hex Bolt 1/4-28 x .62"
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

8

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .751"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$3.99

$

In Stock, Qty 12

0

10

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.49

$

In Stock, only 3 left!

0

11

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

12

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 5

0

14

White Outdoor 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$5.99

$

Usually ships in 3-6 days

0

16

White Outdoor 732-0542

Torsion Spring
(Superseded to 932-0542)

$

$

Not available

17

White Outdoor 734-0973

Deck Wheel-5"

$12.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-0217

L-Wash. 318" I.D.-H.D.

$3.99

$

In Stock, Qty 13

0

21

White Outdoor 736-0329

L-Wash. 1/4" l.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

22

White Outdoor 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$8.49

$

In Stock, Qty 20+

0

23

White Outdoor 742-0472

High-Lift Blade-L.H.
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 7

0

25

White Outdoor 748-0300

Blade Adapter

$12.99

$

In Stock, Qty 17

0

26

White Outdoor 754-0329

5L V-Belt
(Superseded to 954-0329A)

$52.99

$

In Stock, Qty 20+

0

28

White Outdoor 09322

Brake Disc

$

$

Not available

33

White Outdoor 710-1013

Rib Neck Bolt 5/16-24 x 1.05" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

White Outdoor 742-0473

High-Lift Blade-R.H.
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 7

0

35

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

37

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

38

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 717-0906

Blade Spindle Ass'y. Comp.
(Superseded to 753-05319)

Note: (Incl. Ref. 33)

$128.99

$

In Stock, Qty 16

0

42

White Outdoor 756-0486

5" Dia. Pulley

$50.99

$

In Stock, only 4 left!

0

43

White Outdoor 710-0134

Carr. Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

45

White Outdoor 761-0168

Blade Brake Ass y.
(Superseded to 961-0168D)

$31.99

$

In Stock, Qty 5

0

46

White Outdoor 14804

Link Deck Hanger Ass'y.

$

$

Not available

47

White Outdoor 14800

Link Deck Hanger Ass'y.
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

48

White Outdoor 15925

Link Deck Hanger Ass'y.-L H.

Variations

White Outdoor 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

49

White Outdoor 736-0160

Fl-Wash. .53" I.D. x .93" O.D.

$3.99

$

In Stock, only 2 left!

0

50

White Outdoor 714-0101

Inter. Cotter Pin .50" Dia.

$4.49

$

In Stock, only 4 left!

0

51

White Outdoor 711-0790

Stabilizer Rod
(Superseded to 711-0790A)

$

$

Not available
