LT-12 (138-656-190) - White Outdoor 38" Lawn Tractor (1989) Electrical System LT-12 Only Parts Diagram

38" Lawn Tractor

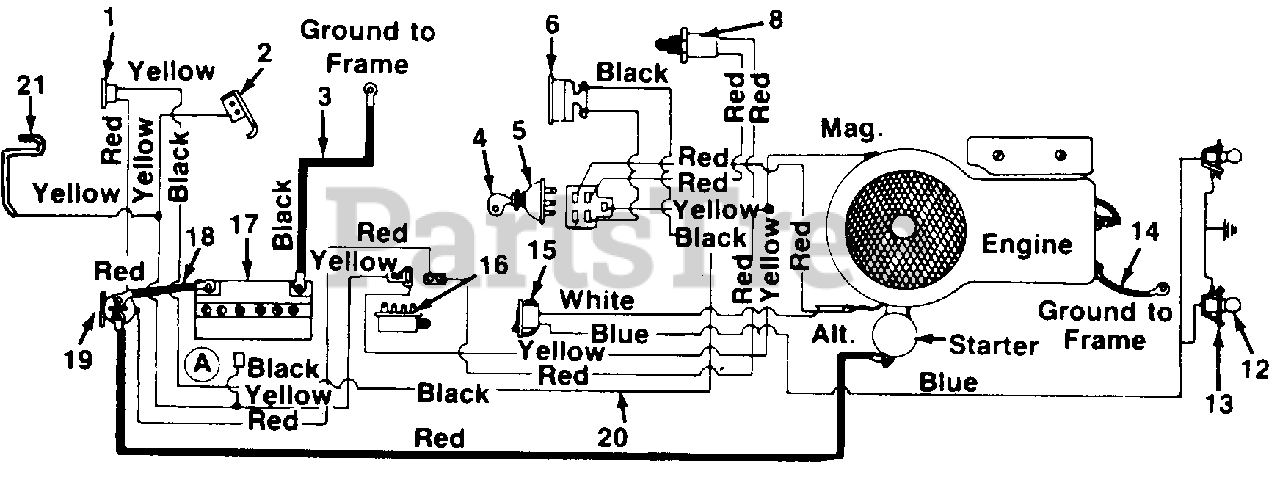

Electrical System LT-12 Only Parts Diagram

  • Title

1

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

2

White Outdoor 725-0759

Spring-Switch-Reverse
(Superseded to 753-0579)

$

$

Not available

3

White Outdoor 725-0977

Ground Wire 11.5" Lg.

$

$

Not available

4

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

5

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 17

0

6

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

8

White Outdoor 725-0577

Safety Switch

$

$

Not available

12

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-1058

Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

14

White Outdoor 725-0976A

Ground Wire 7.25" Lg.

$

$

Not available

15

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

16

White Outdoor 725-0803B

Safety Switch

$31.99

$

In Stock, Qty 8

0

17

White Outdoor 725-0514A

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

18

White Outdoor 725-1351

Electric Wire 8.0" Lg.

$

$

Not available

19

White Outdoor 725-0771

Solenoid
(Superseded to 925-0771)

$32.99

$

In Stock, Qty 5

0

20

White Outdoor 725-1308A

Wire Harness
(Superseded to 925-1308A)

Note: (B&S)

$

$

Not available

21

White Outdoor 725-1303

Spring Switch
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0
