LT 12 (954130044) - Jonsered Lawn Tractor (2001-02)

Lawn Tractor

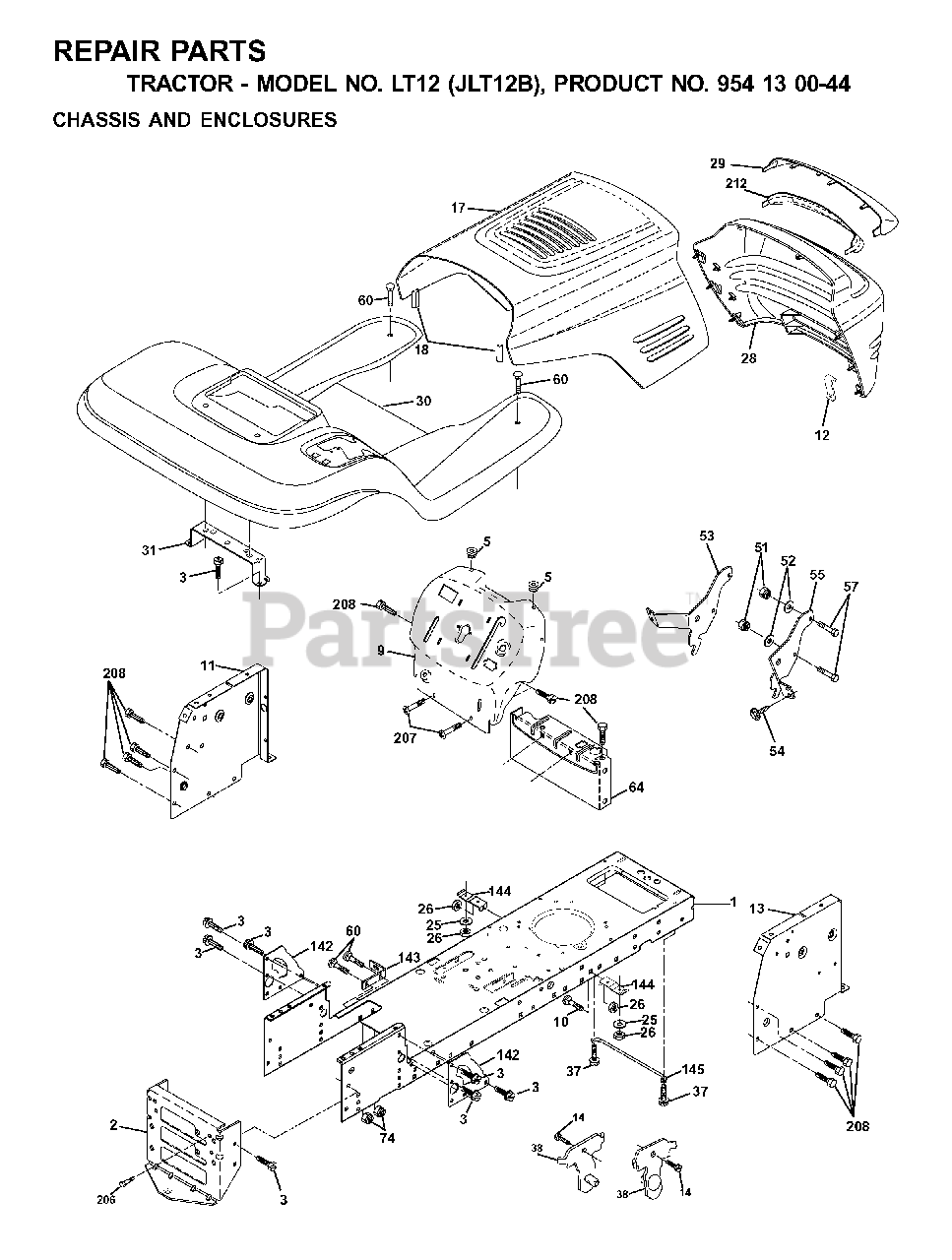

LT 12 (954130044) - Jonsered Lawn Tractor (2001-02) > Parts Diagrams (10) > CHASSIS ENCLOSURES

  • Title
532174619

1

CHASSIS STAMPING

Part# 532174619

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 10 business days

Your price: $93.90

532176554

2

DRAWBAR, 12GA

Part# 532176554

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 8 business days

Your price: $26.82

817060612

3

SCREW 3/8-16X3/4

Part# 817060612

OEM Warranty Repair Part for Jonsered

Not available

532155272

5

BUMPER.RUBBER.HOOD

Part# 532155272

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

532172151

9

No Description Available

Part# 532172151

OEM Warranty Repair Part for Jonsered

Not available

872140608

10

BOLT D

Part# 872140608

OEM Warranty Repair Part for Jonsered

Not available

532155927

11

PANEL DASH LH

Part# 532155927 (Superseded to 532174996)

OEM Warranty Repair Part for Jonsered

Not available

532145660

12

CLIP

Part# 532145660

OEM Warranty Repair Part for Jonsered

Not available

532173025

13

PANEL DASH RH

Part# 532173025

OEM Warranty Repair Part for Jonsered

Not available

817490608

14

SCREW LT

Part# 817490608

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

532150760

17

No Description Available

Part# 532150760

OEM Warranty Repair Part for Jonsered

Not available

532126938

18

BUMPER HOOD T

Part# 532126938

OEM Warranty Repair Part for Jonsered

Not available

819131312

25

WASHER

Part# 819131312

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $5.81

873800600

26

NUT

Part# 873800600

OEM Warranty Repair Part for Jonsered

Not available

532169509

28

No Description Available

Part# 532169509

OEM Warranty Repair Part for Jonsered

Not available

532166603

29

No Description Available

Part# 532166603

OEM Warranty Repair Part for Jonsered

Not available

532172157

30

No Description Available

Part# 532172157

OEM Warranty Repair Part for Jonsered

Not available

532139976

31

BRACKET

Part# 532139976

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 8 business days

Your price: $8.93

817490508

37

SCREW LT

Part# 817490508

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

532169834

38

BRACKET

Part# 532169834 (Superseded to 532175710)

OEM Warranty Repair Part for Jonsered

Not available

873800400

51

LOCKNUT

Part# 873800400

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

819091416

52

WASHER

Part# 819091416

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

532145201

53

No Description Available

Part# 532145201

OEM Warranty Repair Part for Jonsered

Not available

532161464

54

SCREW

Part# 532161464

OEM Warranty Repair Part for Jonsered

Not available

532145202

55

BRACKET

Part# 532145202

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

874780412

57

BOLT

Part# 874780412

OEM Warranty Repair Part for Jonsered

Not available

872140606

60

BOLT

Part# 872140606

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

532154798

64

DASH LOWER

Part# 532154798

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 5 to 11 business days

Your price: $25.70

873680600

74

LOCKNUT

Part# 873680600

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

532165867

142

PLATE

Part# 532165867 (Superseded to 532175702)

OEM Warranty Repair Part for Jonsered

Not available

532154966

143

BRACKET, SWAY BAR

Part# 532154966 (Superseded to 532186689)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

532154207

144

BRACKET FOOTREST

Part# 532154207 (Superseded to 532175582)

OEM Warranty Repair Part for Jonsered

Not available

532156524

145

ROD PIVOT CHASSIS/HOOD

Part# 532156524 (Superseded to 532409167)

OEM Warranty Repair Part for Jonsered

Not available

532170165

206

SHOULDER BOLT 5/16-18TT

Part# 532170165

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

817670508

207

SCREW, 5/16-18 X 1/2

Part# 817670508

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

817670608

208

SCREW 3/8-16X1/2

Part# 817670608

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

532165919

212

No Description Available

Part# 532165919

OEM Warranty Repair Part for Jonsered

Not available

532005479

--

PLUG BUTTON T

Part# 532005479

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34
