LT 12 (954130044) - Jonsered Lawn Tractor (2001-02)

Lawn Tractor

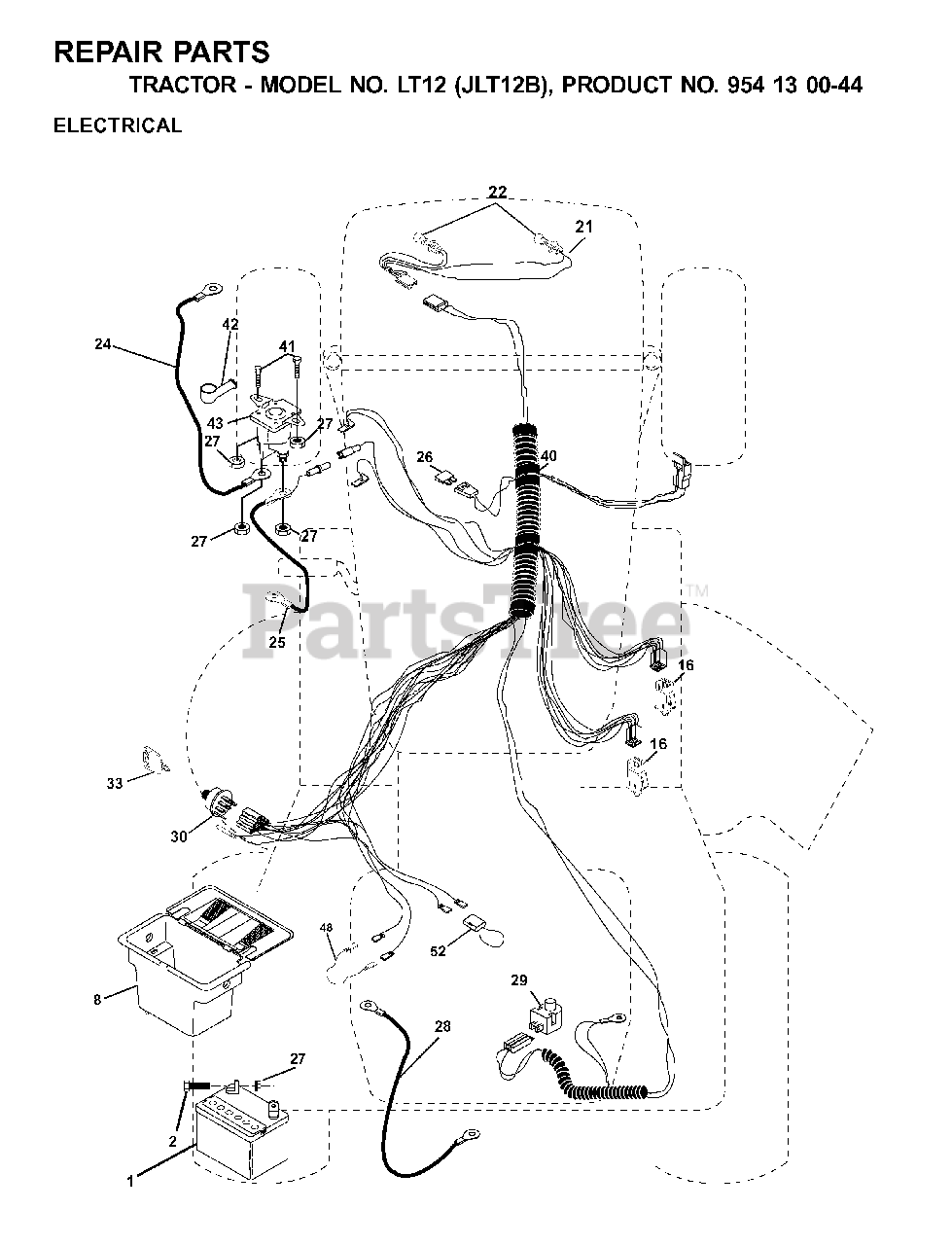

LT 12 (954130044) - Jonsered Lawn Tractor (2001-02) > Parts Diagrams (10) > ELECTRICAL

  • Title
532144925

1

BATTERY 12 VOLT 25 AMP

Part# 532144925 (Superseded to 532123899)

OEM Warranty Repair Part for Jonsered

Not available

874760412

2

BOLT LT

Part# 874760412

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

532156417

8

CASE BATTERY MECH HINGE

Part# 532156417 (Superseded to 532404349)

OEM Warranty Repair Part for Jonsered

Not available

532153664

16

SWITCH INTERLOCK

Part# 532153664 (Superseded to 532176138)

OEM Warranty Repair Part for Jonsered

Not available

532166182

21

HARNESS ASM, LIGHT W/4152J

Part# 532166182

OEM Warranty Repair Part for Jonsered

Not available

532004152

22

LIGHTBULB

Part# 532004152

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $3.34

532124780

24

BATTERY CABLE GT

Part# 532124780 (Superseded to 532004799)

OEM Warranty Repair Part for Jonsered

Not available

532146147

25

CABLE BATTERY

Part# 532146147

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $22.35

532175158

26

FUSE 20AMP

Part# 532175158

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $4.46

873510400

27

NUT

Part# 873510400

OEM Warranty Repair Part for Jonsered

Not available

532124773

28

CABLE T

Part# 532124773 (Superseded to 532420700)

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

532121305

29

SWITCH SEAT

Part# 532121305

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

532175566

30

IGNITION SWITCH

Part# 532175566

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $14.13

532140401

33

KEY MLD GEN DELTA

Part# 532140401

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.13

532170217

40

HARNESS, IGN. LTH120

Part# 532170217 (Superseded to 532178437)

OEM Warranty Repair Part for Jonsered

Not available

871110408

41

No Description Available

Part# 871110408

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 1 business day

Your price: $2.23

532131563

42

TERMINAL COVER

Part# 532131563 (Superseded to 532154336)

OEM Warranty Repair Part for Jonsered

Not available

532175141

43

REPL BY 532 1461-54

Part# 532175141 (Superseded to 532146154)

OEM Warranty Repair Part for Jonsered

Not available

532140844

48

ADAPTER

Part# 532140844

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

532141940

52

WIRE PROTECTION LOOP

Part# 532141940

OEM Warranty Repair Part for Jonsered

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46
