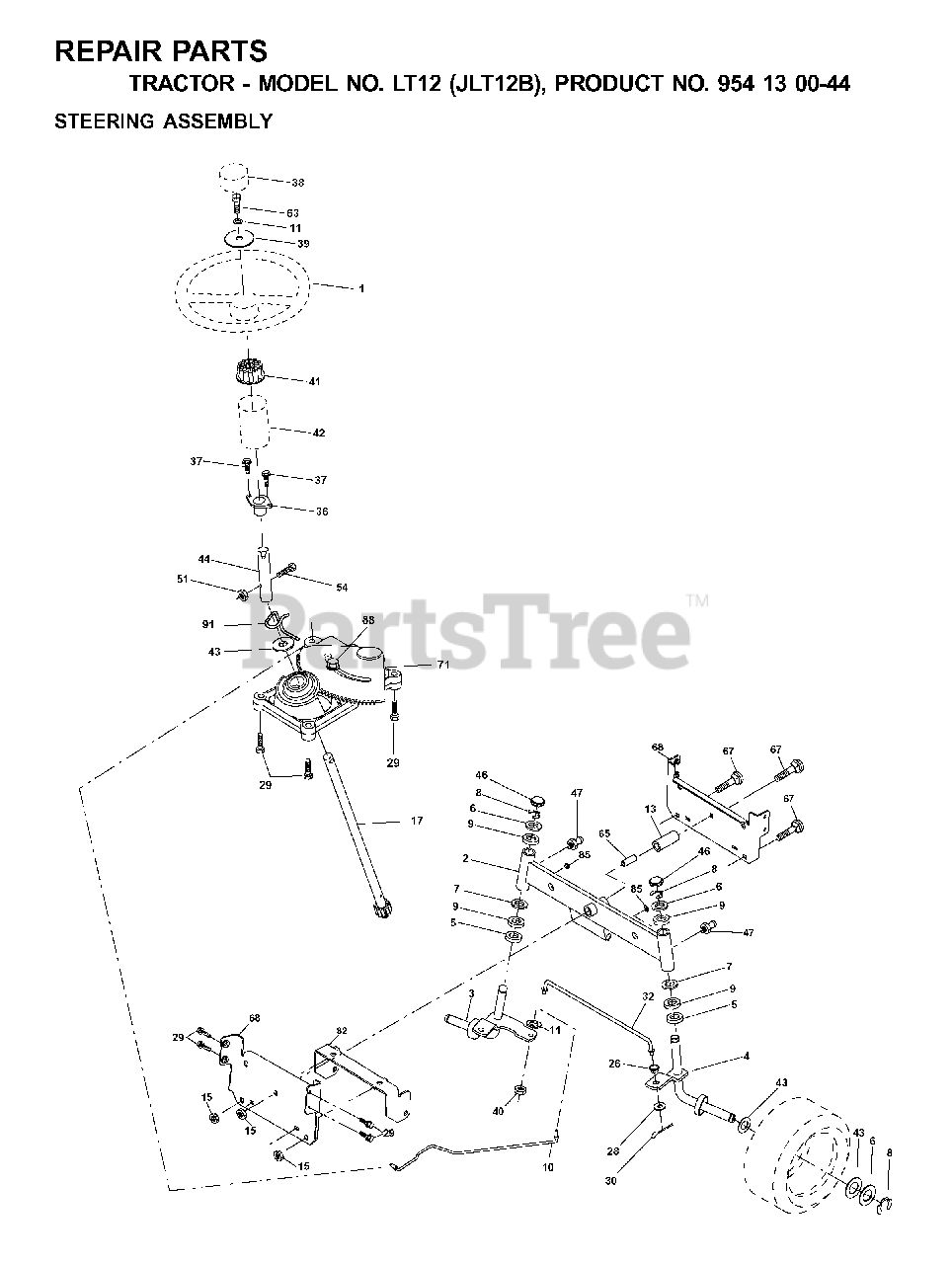

LT 12 (954130044) - Jonsered Lawn Tractor (2001-02) STEERING Parts Diagram

Lawn Tractor

STEERING Parts Diagram

  • Title

1

Jonsered 532177182

No Description Available

$

$

Not available

2

Jonsered 532154427

AXLE ASSY
(Superseded to 532175131)

$46.99

$

Usually ships in 3-10 days

0

3

Jonsered 532169840

SPINDLE.ASM.LH.15"TIRES
(Superseded to 596873901)

$18.99

$

In Stock, Qty 5

0

4

Jonsered 532169839

SPINDLE.ASM.RH.15"TIRES
(Superseded to 596873801)

$17.99

$

In Stock, Qty 12

0

5

Jonsered 532124931

No Description Available
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

6

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

7

Jonsered 819272016

WASHER

$6.49

$

In Stock, only 4 left!

0

8

Jonsered 812000029

RING CLIP

$3.99

$

In Stock, Qty 20+

0

9

Jonsered 532124937

BRNG T
(Superseded to 532003366)

$3.49

$

In Stock, Qty 20+

0

10

Jonsered 532175121

DRAGLINK.15".TIRES.2001

$67.99

$

In Stock, Qty 20+

0

11

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

13

Jonsered 532136518

TUBE, PIVOT AXLE

$9.99

$

In Stock, only 4 left!

0

15

Jonsered 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532177876

SHAFT ASM
(Superseded to 532192520)

$

$

Not available

26

Jonsered 532126847

BUSHING.DRAGLINK

$4.99

$

In Stock, Qty 15

0

28

Jonsered 819131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, Qty 5

0

29

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 10

0

30

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 2 left!

0

32

Jonsered 532130465

TIE ROD
(Superseded to 532192757)

$34.99

$

In Stock, Qty 8

0

36

Jonsered 532155099

BUSHING, STEERING
(Superseded to 532155106)

$9.99

$

In Stock, Qty 20+

0

37

Jonsered 532152927

SCREW

$7.49

$

In Stock, Qty 20+

0

38

Jonsered 532177183

No Description Available

$

$

Not available

39

Jonsered 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available

40

Jonsered 532124701

GRIPCO NUT
(Superseded to 532007810)

$3.99

$

Usually ships in 3-10 days

0

41

Jonsered 532100711

ADAPTER LT
(Superseded to 532186737)

$7.99

$

In Stock, Qty 20+

0

42

Jonsered 532169633

BOOT.STEERING.SHAFT.BLACK

$8.99

$

In Stock, only 1 left!

0

43

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

44

Jonsered 532153720

EXT SHAFT STEERING
(Superseded to 532153721)

$

$

Not available

46

Jonsered 532121232

CAP.SPINDLE

$3.99

$

In Stock, Qty 20+

0

47

Jonsered 532124836

ZERK M
(Superseded to 532006855)

$7.49

$

In Stock, only 3 left!

0

51

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

54

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

63

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

65

Jonsered 532160367

SPACER BRACE AXLE
(Superseded to 532414736)

$6.49

$

In Stock, Qty 11

0

67

Jonsered 872110618

BOLT CARRIAGE

$6.49

$

In Stock, only 1 left!

0

68

Jonsered 532169827

BRACE.AXLE.15"TIRES

$21.99

$

Usually ships in 3-10 days

0

71

Jonsered 532175146

STEERING ASM

$182.99

$

In Stock, only 3 left!

0

82

Jonsered 532169835

BRACKET
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

85

Jonsered 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

88

Jonsered 532175118

BOLT, SHOULDER 7/16-20

$6.49

$

Usually ships in 3-10 days

0

91

Jonsered 532175553

CLIP.STEERING

$13.99

$

In Stock, only 2 left!

0
