LT-120 (136-708-190) - White Outdoor 38" Lawn Tractor (1986) 34" & 38" Mowing Deck Assembly Parts Diagram

38" Lawn Tractor

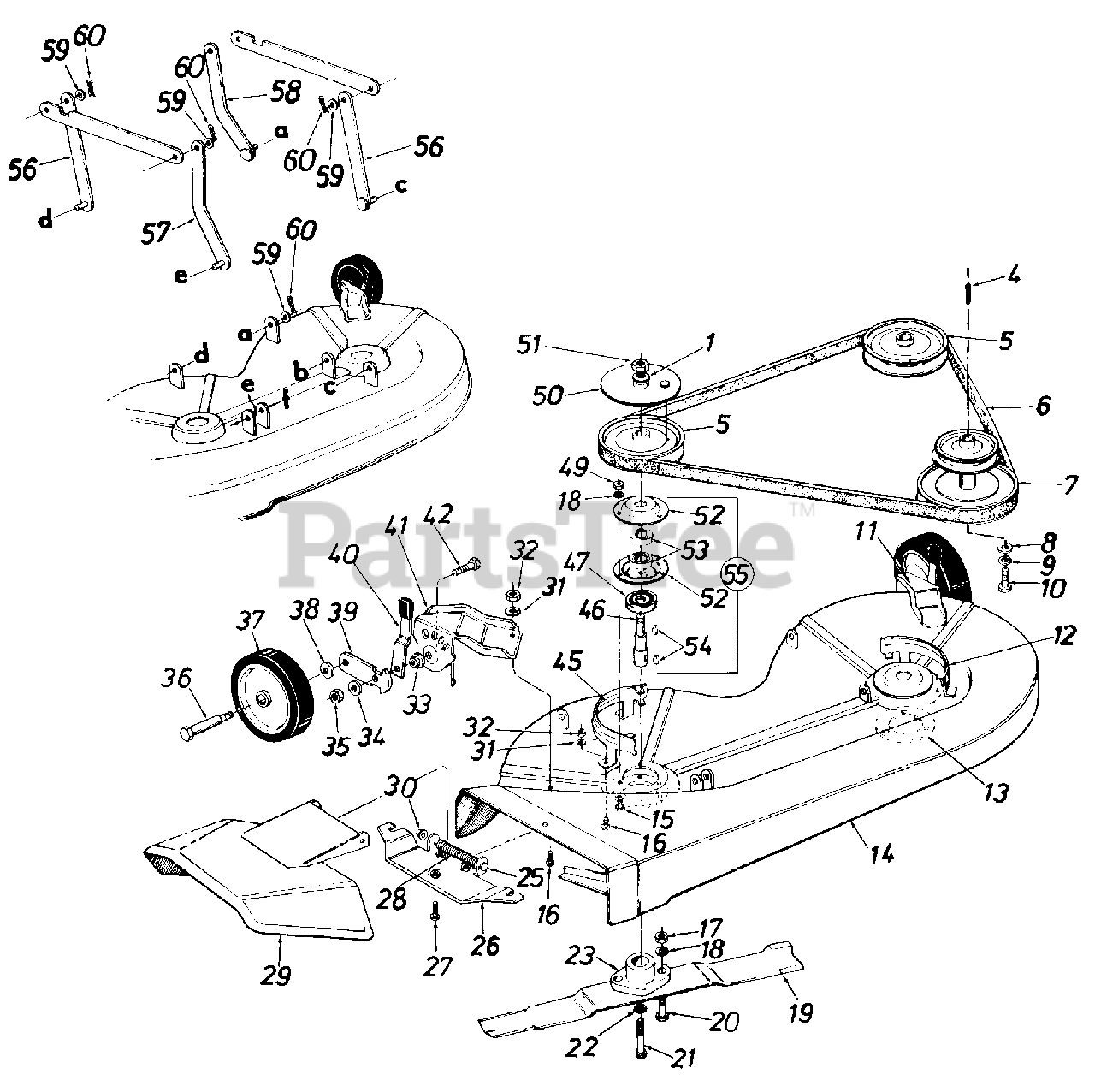

34" & 38" Mowing Deck Assembly Parts Diagram

  • Title

1

736-0153

L-Wash. 5/8" I.D.

$

$

Not available

4

White Outdoor 714-0114

Sq. Key 1/4" x 1/4" x 2.0" Lg.
(Superseded to 914-0114)

$4.49

$

In Stock, only 2 left!

0

5

White Outdoor 756-0251

Pulley 4.75" O.D.

$63.99

$

Usually ships in 3-6 days

0

6

White Outdoor 754-0151

"V"-Belt 21/32 x 67" Lg.

Note: (34" Deck)

$

$

Not available

White Outdoor 754-0145

"V"-Belt 21/32 x 69" Lg.
(Superseded to 954-0145A)

Note: (38" Deck)

$51.99

$

Usually ships in 3-6 days

0

7

See Lawn Tractor Manual

$

$

Not available

8

White Outdoor 736-0322

Fl-Wash. 7/16" I.D. x 1.25 O.D. x .180

$9.99

$

In Stock, Qty 20+

0

9

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.99

$

In Stock, Qty 16

0

10

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.50" Lg.

$10.99

$

In Stock, only 2 left!

0

11

White Outdoor 09082

Wheel Brkt. L.H.

$

$

Not available

12

White Outdoor 12672

Belt Guard L.H.
(Superseded to 16607-0637)

$

$

Not available

13

White Outdoor 09164

Plate Deck Reinforcement
(Superseded to 09164A-0637)

$35.99

$

In Stock, only 2 left!

0

14

16459

34" Deck Ass'y.

$

$

Not available

16458

34" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Not available

14662

38" Deck Ass'y.

$

$

Not available

14777

38" Deck Ass'y. Comp.

Note: (Service Only)

$

$

Not available

15

White Outdoor 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.
(Superseded to 910-0322)

$

$

Not available

16

White Outdoor 710-0195

Hex Bolt 1/4-28 x .50" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

17

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

18

736-0115

L-Wash. 5/16" I.D.

$

$

Not available

19

17" Blade

Note: (34" Deck)

$

$

Not available

White Outdoor 742-0122

19" Blade
(Superseded to 942-0122B)

Note: (38" Deck)

$

$

Not available

20

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 7

0

21

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$7.49

$

In Stock, Qty 11

0

22

White Outdoor 736-0217

L-Wash. 3/8" I.D. (Heavy Duty)

$4.49

$

In Stock, only 3 left!

0

23

White Outdoor 10769

Blade Adapter Kit

$

$

Not available

25

White Outdoor 711-0571

Hinge Pin

$

$

Not available

26

White Outdoor 11396

Adapter Plate

$

$

Not available

27

White Outdoor 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 732-0261

Torsion Spring

$

$

Not available

29

11633

Chute Cover Ass'y. Comp.

$

$

Not available

30

White Outdoor 726-0106

Push Nut 1/4' Rod

$4.49

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

32

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$7.49

$

Usually ships in 3-6 days

0

33

White Outdoor 748-0279

Shld. Spacer

$

$

Not available

34

White Outdoor 736-0219

Bell-Wash. .400" I.D. x 1.13"
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

35

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

36

White Outdoor 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

37

White Outdoor 734-0973

Plastic Wheel 5.0" x 1.38"
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

38

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

39

White Outdoor 10937

Pivot Bar

$

$

Not available

40

White Outdoor 14082

Spring Lever Ass'y. w/ Knob

$

$

Not available

41

White Outdoor 09080

Wheel Brkt. R.H.

$

$

Not available

42

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 12673

Belt Guard R.H.

$

$

Not available

46

White Outdoor 711-0255

Blade Spindle
(Superseded to 911-0255)

$

$

Not available

47

White Outdoor 13703

Bearing Shield

$

$

Not available

49

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

50

White Outdoor 09322

Brake Disc

$

$

Not available

51

White Outdoor 712-0261

Hex Jam L-Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

52

White Outdoor 08253

Bearing Housing
(Superseded to 08253B)

$20.99

$

In Stock, only 4 left!

0

53

White Outdoor 741-0919

Ball Bearing .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

54

White Outdoor 714-0365

#6 Hi-Pro Key 5132" x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

55

White Outdoor 09321

Blade Spindle Ass'y.

$102.99

$

Usually ships in 3-6 days

0

56

White Outdoor 14804

Link Deck Hanger Ass'y.

$

$

Not available

57

White Outdoor 14800

Link Deck Hanger Ass'y.
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

58

White Outdoor 15925

Link Deck Hanger Ass'y. L.H.

Variations

White Outdoor 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

59

White Outdoor 736-0160

Fl-Wash. .53" I.D. x .93" O.D.

$4.49

$

Usually ships in 3-6 days

0

60

White Outdoor 714-0101

Inter. Cotter Pin .50" Dia.

$4.99

$

In Stock, only 2 left!

0

White Outdoor 761-0168

Blade Brake Assembly
(Superseded to 961-0168D)

Note: (34" Deck)

$33.99

$

In Stock, only 2 left!

0

White Outdoor 761-0169

Blade Brake Assembly
(Superseded to 961-0197)

Note: (38" Deck)

$

$

Not available
