LT-120 (138-666-190) - White Outdoor 38" Lawn Tractor (1988)

38" Lawn Tractor

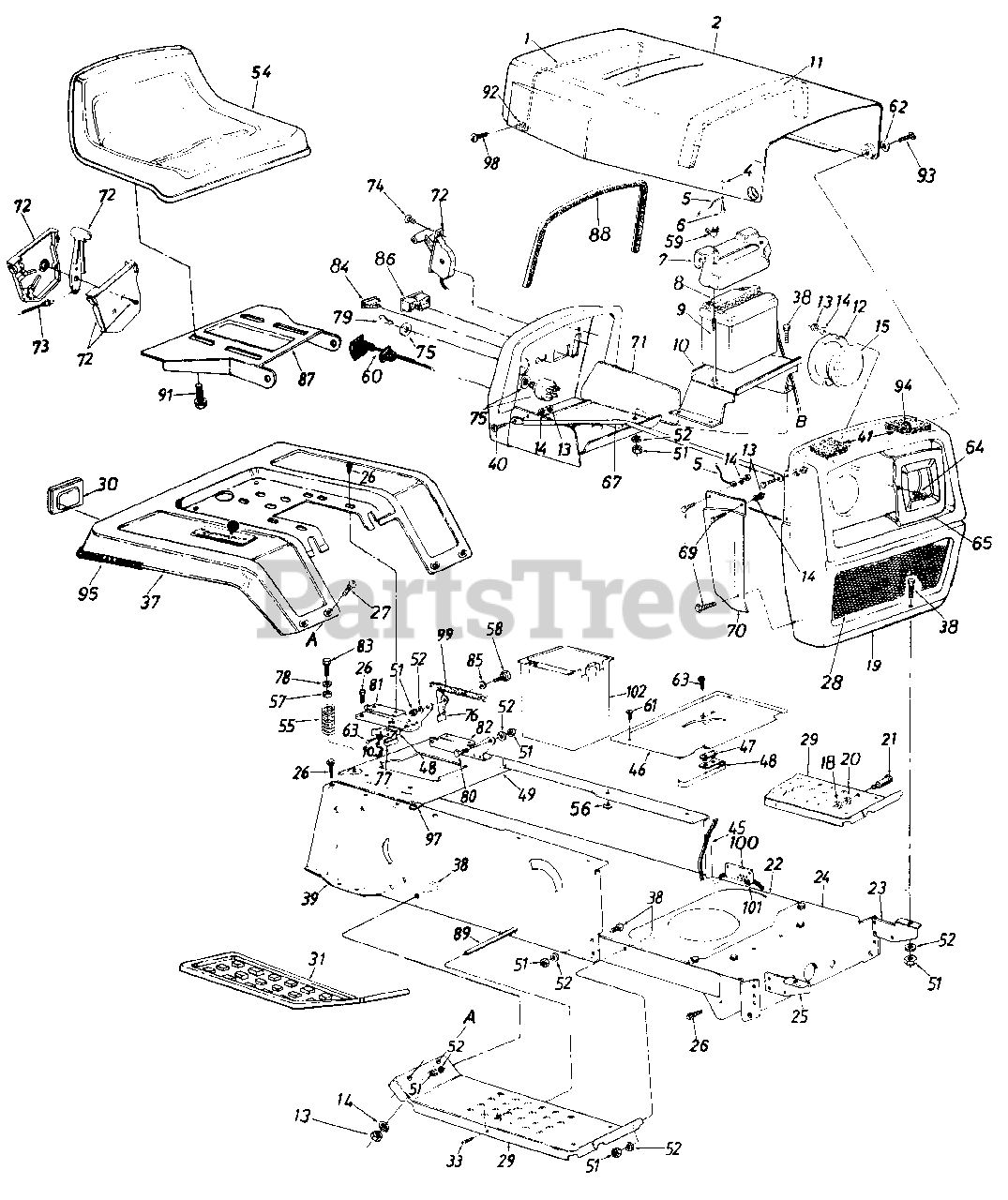

LT-120 (138-666-190) - White Outdoor 38" Lawn Tractor (1988) > Parts Diagrams (8) > Body Assembly

  • Title
732-0559

1

Hood Spring

Part# 732-0559

OEM Warranty Repair Part for White Outdoor

Not available

16646

2

Hood

Part# 16646

OEM Warranty Repair Part for White Outdoor

Variations

CUB BEIGE (0499)

No Longer Available HOOD

Part# CUB BEIGE (0499)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

No Longer Available HOOD

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available HOOD

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

736-0931

4

Fl-Wash..203" I.D.

Part# 736-0931

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.23

723-0302

5

Hood Stop 7" Lg.

Part# 723-0302

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.92

728-0123

6

Pop Rivet

Part# 728-0123 (Superseded to 928-0123)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.48

731-0707

7

Battery Cover

Part# 731-0707

OEM Warranty Repair Part for White Outdoor

Not available

725-0453

8

12 Volt Battery

Part# 725-0453 (Superseded to 925-0453G)

OEM Warranty Repair Part for White Outdoor

Not available

711-0222

9

Battery Hold Down Rod

Part# 711-0222 (Superseded to 911-0222A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.15

12747

10

Battery Bracket

Part# 12747

OEM Warranty Repair Part for White Outdoor

Not available

722-0138

11

PVC Foam-Strip

Part# 722-0138

OEM Warranty Repair Part for White Outdoor

Not available

09960

12

Headlight Retainer

Part# 09960

OEM Warranty Repair Part for White Outdoor

Not available

712-0287

13

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

14

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

725-0222

15

Headlight

Part# 725-0222 (Superseded to 925-0222)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $42.24

712-0798

18

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

14787

19

Grille Ass'y.

Part# 14787

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

20

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

738-0145

21

Shld. Bolt .50" Dia. x .84

Part# 738-0145 (Superseded to 938-0145)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

15930

22

Lower Frame

Part# 15930

OEM Warranty Repair Part for White Outdoor

Not available

16643

23

Grille Mount Brkt.

Part# 16643

OEM Warranty Repair Part for White Outdoor

Not available

14619

24

Front Pivot Brkt.

Part# 14619

Not available

16644

25

Grille Mount Brkt.

Part# 16644

OEM Warranty Repair Part for White Outdoor

Not available

710-0726

26

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.04

710-0167

27

Carriage Bolt 1/4-20 x .5" Lg.

Part# 710-0167

OEM Warranty Repair Part for White Outdoor

Not available

731-0881

28

Grille Insert

Part# 731-0881

OEM Warranty Repair Part for White Outdoor

Not available

14604

29

Running Board

Part# 14604

Note: (R.H. & L.H.)

Not available

730-0116

30

Reflector

Part# 730-0116

Not available

731-0909

31

Foot Pad-L.H.

Part# 731-0909 (Superseded to 735-04009)

OEM Warranty Repair Part for White Outdoor

Not available

731-0910

Foot Pad-R.H.

Part# 731-0910 (Superseded to 735-0689A)

OEM Warranty Repair Part for White Outdoor

Not available

710-0323

33

Truss Mach. Scr. 5/16-18 x .75" Lg.

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

17230

37

Fender

Part# 17230

Not available

710-0118

38

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

14602

39

R.H. Side Frame

Part# 14602 (Superseded to 14602G-0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0258

40

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

722-0157

41

Foam Strip

Part# 722-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.08

14603

45

L.H. Side Frame

Part# 14603

OEM Warranty Repair Part for White Outdoor

Not available

17286

46

Shift Cover

Part# 17286 (Superseded to 17286B-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.19

725-0759

47

Reverse Safety Switch

Part# 725-0759 (Superseded to 753-0579)

OEM Warranty Repair Part for White Outdoor

Not available

726-0222

48

Insulator Nut Plate

Part# 726-0222 (Superseded to 926-0320)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

17226

49

Hitch Plate

Part# 17226

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

51

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

52

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

757-0338

54

Seat Ass'y.

Part# 757-0338 (Superseded to 957-0360A)

OEM Warranty Repair Part for White Outdoor

Not available

732-0588

55

Compression Spring

Part# 732-0588

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.50

736-0607

56

Ext. L-Wash. 5/16" I.D.

Part# 736-0607

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

722-0160

57

Bushing

Part# 722-0160

OEM Warranty Repair Part for White Outdoor

Not available

738-0296

58

Shld. Bolt.437" Dia. x .268"

Part# 738-0296 (Superseded to 938-0296)

OEM Warranty Repair Part for White Outdoor

Not available

712-0113

59

Wing Nut 1/4-20 Thd.-Plastic

Part# 712-0113 (Superseded to 912-0113)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

746-0613

60

Choke Control 46" Lg.

Part# 746-0613 (Superseded to 946-0613A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.34

710-0351

61

Truss Mach. Tap Scr. #10 x .50" Lg.

Part# 710-0351

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

736-0413

62

Washer .39" l.D. x .62" O.D.

Part# 736-0413

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

710-0227

63

Hex Wash. Hd. AB-Tap Scr. #8 x .50

Part# 710-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0346

64

Oval C 0 Sunk Mach. Scr. 1/4-20 x 1.5" Lg.

Part# 710-0346

OEM Warranty Repair Part for White Outdoor

Not available

731-0465

65

Bezel

Part# 731-0465

OEM Warranty Repair Part for White Outdoor

Not available

749-0673

67

Grille Support Rod-L.H.

Part# 749-0673

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available ROD-GRILLE SUP-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

749-0674

Grille Support Rod-R.H.

Part# 749-0674

Not available

710-0255

69

Truss Hd. Scr. 1/4-20 x .75 Lg.

Part# 710-0255 (Superseded to 710-0924)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

14748

70

R.H.-Grille Side Panel

Part# 14748

Not available

14749

L.H.-Grille Side Panel

Part# 14749

Not available

17301

71

Dash Panel Ass'y.

Part# 17301

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

831-0823

72

Throttle Control Box Ass'y.

Part# 831-0823 (Superseded to 831-0823A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.29

746-0634

73

Throttle Control Wire-35"

Part# 746-0634 (Superseded to 946-0634)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.21

710-0779

74

Truss Mach. A8-Tap Scr. #10 x .5" Lg.

Part# 710-0779 (Superseded to 710-0779A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08

725-0267

75

Ignition Switch

Part# 725-0267 (Superseded to 925-0267B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.44

17239

76

Seat Lift Bracket

Part# 17239 (Superseded to 17239C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.58

725-1303

77

Spring Switch

Part# 725-1303 (Superseded to 925-1303)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.47

736-0159

78

Fl-Wash. .344" l.D.

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for White Outdoor

Not available

725-0201

79

Ignition Key

Part# 725-0201 (Superseded to 925-0201)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.91

738-0155

80

Shld. Bolt .437" Dia. x .162"

Part# 738-0155 (Superseded to 938-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

17244

81

Seat Pivot Brkt. Support-R.H.

Part# 17244

OEM Warranty Repair Part for White Outdoor

Not available

17243

82

Seat Pivot Brkt. Support-L.H.

Part# 17243

OEM Warranty Repair Part for White Outdoor

Not available

710-0602

83

Hex Hd. Tap Scr. 5/16-18 x l" Lg.

Part# 710-0602

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.21

725-0634

84

Light Switch

Part# 725-0634 (Superseded to 925-0634)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.77

736-0141

85

Spr-Wash. .445" I.D. x .75" O.D.

Part# 736-0141 (Superseded to 936-0141)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

725-0925

86

Ammeter

Part# 725-0925 (Superseded to 925-0925)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $21.86

15607

87

Seat Pivot Bracket

Part# 15607 (Superseded to 783-0039A)

OEM Warranty Repair Part for White Outdoor

Not available

731-0511

88

Molding Strip 27" Lg.

Part# 731-0511

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.84

738-0526

89

Running Board Rod

Part# 738-0526

OEM Warranty Repair Part for White Outdoor

Not available

710-0623

91

Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg.

Part# 710-0623

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

731-0895

92

Hood Spring Retainer

Part# 731-0895

OEM Warranty Repair Part for White Outdoor

Not available

738-0724

93

Shld. Bolt .375 Dia. x .125

Part# 738-0724 (Superseded to 938-0952A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.94

712-0380

94

L-Nut 1/4-28 Thd.

Part# 712-0380

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

731-0511

95

Trim Strip 31.0" Lg.

Part# 731-0511

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.84

726-0139

97

Speed Nut #10Z

Part# 726-0139

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.76

710-0697

98

Self-Tap Scr. .5" Lg.

Part# 710-0697

OEM Warranty Repair Part for White Outdoor

Not available

732-0581

99

Extension Spring 5.31 Lg.

Part# 732-0581 (Superseded to 932-0581B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.07

16371

100

Brake Cable Bracket

Part# 16371

Not available

726-0197

101

Cable Tie

Part# 726-0197

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

731-0873

102

Utility Box

Part# 731-0873

OEM Warranty Repair Part for White Outdoor

Not available

736-0426

103

Fiber Washer

Part# 736-0426

OEM Warranty Repair Part for White Outdoor

Not available
