LT-120 (138-666-190) - White Outdoor 38" Lawn Tractor (1988)

38" Lawn Tractor

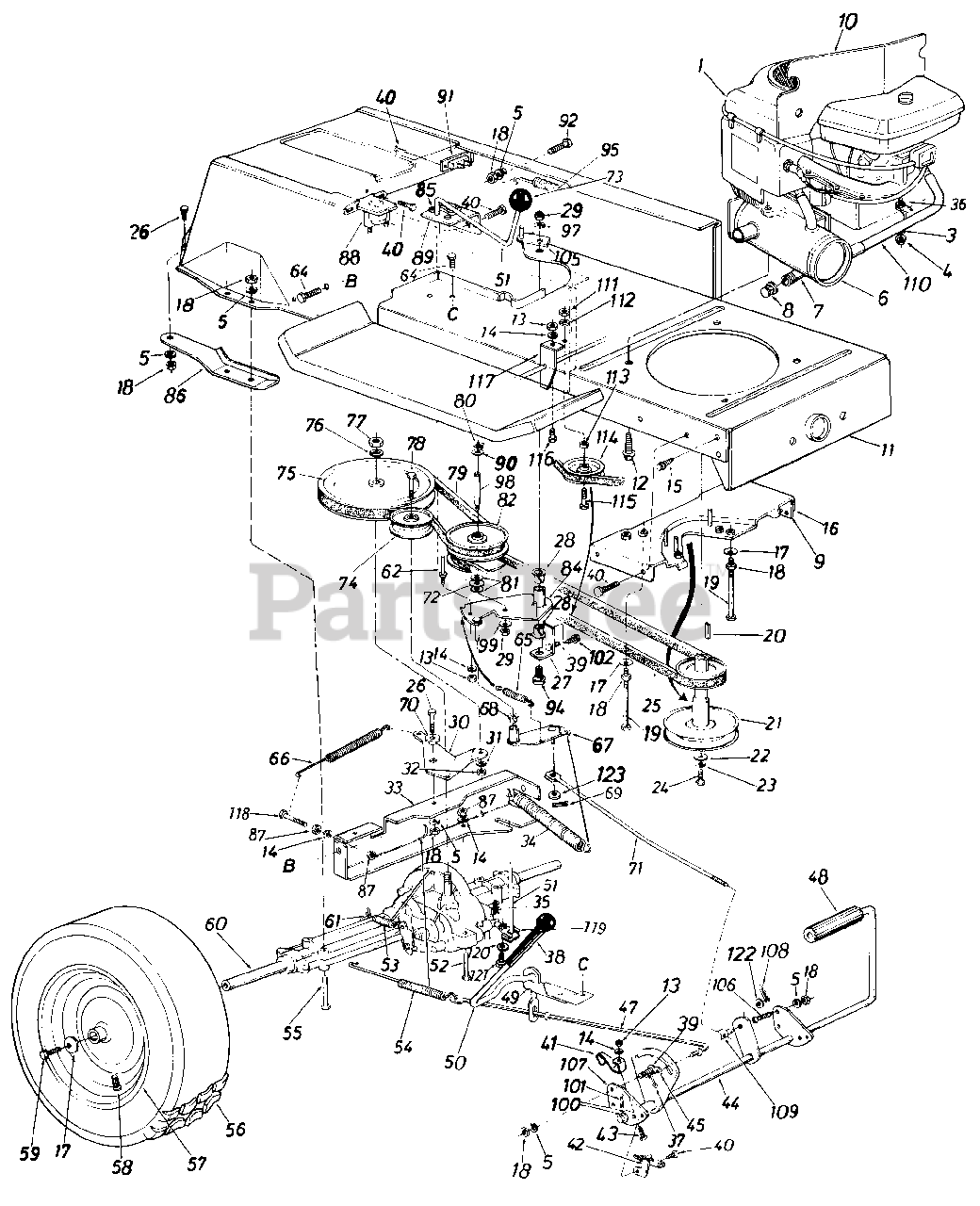

LT-120 (138-666-190) - White Outdoor 38" Lawn Tractor (1988) > Parts Diagrams (8) > Drive Assembly

  • Title

1

Engine

Part#

Not available

736-0170

3

Special L-Wash. 5/16" I.D.

Part# 736-0170 (Superseded to 936-0170)

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

4

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

5

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

751-0444

6

Exhaust Muffler

Part# 751-0444

OEM Warranty Repair Part for White Outdoor

Not available

737-0164

7

Pipe Nipple

Part# 737-0164 (Superseded to 937-0164)

OEM Warranty Repair Part for White Outdoor

Not available

737-0143

8

Cap Oil Drain

Part# 737-0143

OEM Warranty Repair Part for White Outdoor

Not available

16371

9

Brake Cable Brk't.

Part# 16371

Not available

16215

10

Heat Shield

Part# 16215

Not available

15930

11

Lower Frame Ass'y.

Part# 15930

OEM Warranty Repair Part for White Outdoor

Not available

710-0502

12

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.25" Lg.

Part# 710-0502 (Superseded to 710-0502A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.58

712-0287

13

Hex Nut 1/4-20 Thd.'

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

14

L-Wash. 1/4" I.D.'

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-0726

15

Hex Wash. Hd. AB-Tap Scr. 5/16" x.75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.04

16219

16

Belt Guard Brkt. Ass'y.

Part# 16219

Not available

736-0242

17

Bell-Wash. .845'1 I.D. x .88"

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

712-0267

18

Hex Nut 5/16-18 Thd.'

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

710-0190

19

Hex Bolt 5/16-18 x 4.00"'

Part# 710-0190

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.61

714-0114

20

Sq. Key 1/4" x 1/4" x 2.00"

Part# 714-0114 (Superseded to 914-0114)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.96

756-0424

21

Engine Pulley

Part# 756-0424 (Superseded to 753-0631)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $131.81

736-0322

22

Fl-Wash. 7/16" I.D. x 1.25"

Part# 736-0322

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.67

736-0171

23

L-Wash. 7/16" I.D.

Part# 736-0171 (Superseded to 936-0171)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.10

710-0757

24

Hex Bolt 7/16-20 x 1.50" Lg.

Part# 710-0757

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.01

754-0280

25

Variable-Speed Belt

Part# 754-0280 (Superseded to 954-0280A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $37.74

710-0118

26

Hex Bolt 5/16-18 x .75" Lg.'

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

16553

27

Bearing Shaft Bracket Ass'y.

Part# 16553

OEM Warranty Repair Part for White Outdoor

Not available

741-0295

28

Flanged Nyliner Brg. 5/8" I.D. x .88" Lg.

Part# 741-0295 (Superseded to 941-0591)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

712-0241

29

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

15891

30

Idler Bracket

Part# 15891 (Superseded to 15891C-0637)

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

31

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

712-0241

32

Hex Nut 3/8-24 Thd.'

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

15945

33

Transaxle Support Brkt.

Part# 15945 (Superseded to 15945E-0637)

OEM Warranty Repair Part for White Outdoor

Not available

732-0459

34

Ext. Spring .94" O.D. x 6.7

Part# 732-0459 (Superseded to 732-0459C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.87

714-0149

35

Inter. Cotter Pin

Part# 714-0149 (Superseded to 914-0149B)

OEM Warranty Repair Part for White Outdoor

Not available

736-0204

36

Fl-Wash. .34" I.D. x .62" O.D. x .033

Part# 736-0204

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08

714-0507

37

Cotter Pin 3/32" Dia. x .75"

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

720-0143

38

Grip-Black

Part# 720-0143

OEM Warranty Repair Part for White Outdoor

Not available

710-0323

39

Truss Mach. Scr. 5/16-18 x . 75" Lg .

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

710-0599

40

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

732-0582

41

Switch Actuator

Part# 732-0582

OEM Warranty Repair Part for White Outdoor

Not available

725-0577

42

Safety Switch

Part# 725-0577

OEM Warranty Repair Part for White Outdoor

Not available

710-0597

43

Hex Bolt 1/4-20 x 1.0" Lg.

Part# 710-0597

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

16235

44

Clutch & Brake Pedal Ass'y.

Part# 16235

Not available

736-0117

45

Fl-Wash.

Part# 736-0117 (Superseded to 936-0117)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.97

747-0519

47

Brake Rod 20.9" Lg.

Part# 747-0519

OEM Warranty Repair Part for White Outdoor

Not available

735-0196

48

Foot Pad

Part# 735-0196 (Superseded to 735-0239A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.63

15889

49

Brake Lever Bracket

Part# 15889

OEM Warranty Repair Part for White Outdoor

Not available

15888

50

Hill Holder Brake Handle

Part# 15888

Not available

16430

51

Shift Lever Ass'y.

Part# 16430 (Superseded to 17705)

OEM Warranty Repair Part for White Outdoor

Not available

710-0559

52

Hex Bolt 1/4-28 x 1.75" Lg.'

Part# 710-0559

OEM Warranty Repair Part for White Outdoor

Not available

732-0264

53

Ext. Spring .38" O.D. x 2.5

Part# 732-0264 (Superseded to 932-0264)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.50

732-0413

54

Ext. Spring .59 O.D. x 7.08"

Part# 732-0413 (Superseded to 932-0413)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.53

710-0176

55

Hex Bolt 5/16-18 x 2.

Part# 710-0176

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

734-0817

56

Wheel Ass'y. Comp.

Part# 734-0817

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle Gray (0911)

WHEEL ASSY W/TIRE

Part# Carlisle Gray (0911)

OEM Warranty Repair Part for White Outdoor

Not available

Dico Gray (0912)

No Longer Available WHEEL ASSY W/TIRE

Part# Dico Gray (0912)

OEM Warranty Repair Part for White Outdoor

Not available

Duro Gray (0915)

No Longer Available WHEEL ASSY W/TIRE

Part# Duro Gray (0915)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Beige (0931)

No Longer Available WHL ASSY 18 X 9 50

Part# Carlisle Beige (0931)

OEM Warranty Repair Part for White Outdoor

Not available

Dico Beige (0932)

No Longer Available WHEEL ASSY 18X9.5X

Part# Dico Beige (0932)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Yellow (0941)

No Longer Available WHL ASSY 18 X 9 50

Part# Carlisle Yellow (0941)

OEM Warranty Repair Part for White Outdoor

Not available

Carlisle Green (0981)

No Longer Available WHEEL ASSY W/TIRE

Part# Carlisle Green (0981)

OEM Warranty Repair Part for White Outdoor

Not available

734-0448

Tire Only

Part# 734-0448

OEM Warranty Repair Part for White Outdoor

Variations

Carlisle (0901)

No Longer Available TIRE 18 X 9 50

Part# Carlisle (0901)

OEM Warranty Repair Part for White Outdoor

Not available

Dico (0902)

TIRE-TUBELESS 18X9

Part# Dico (0902)

OEM Warranty Repair Part for White Outdoor

Not available

Duro (0905)

TIRE-TUBELESS 18X9

Part# Duro (0905)

OEM Warranty Repair Part for White Outdoor

Not available

734-0603

57

Wheel Rim Only

Part# 734-0603 (Superseded to 634-0070)

OEM Warranty Repair Part for White Outdoor

Not available

734-0255

58

Air Valve

Part# 734-0255 (Superseded to 934-0255)

Note: (Service Only)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

710-0627

59

Hex Bolt 5/16-24 x .75 Lg.

Part# 710-0627

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

717-1050

60

Transaxle Complete-R.H.

Part# 717-1050 (Superseded to 753-0539)

OEM Warranty Repair Part for White Outdoor

Not available

732-0454

61

Brake Return Spring Anchor

Part# 732-0454 (Superseded to 932-0722A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.18

711-0768

62

Belt Guard Pin 1/4-20 Thd.

Part# 711-0768 (Superseded to 911-1000)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.73

710-0604

64

Hex Wash. TT-Tap Scr. 5/16 x .62 Lg.

Part# 710-0604 (Superseded to 710-0604A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

732-0568

65

Ext. Spring

Part# 732-0568 (Superseded to 932-0568)

OEM Warranty Repair Part for White Outdoor

Not available

732-0384

66

Ext. Spring .62 O.D. x 6.12

Part# 732-0384 (Superseded to 932-0384)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.52

16554

67

Variable Speed Torque Brkt. Ass'y.

Part# 16554

Not available

741-0419

68

Flanged Bearing

Part# 741-0419

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.42

714-0507

69

Cotter Pin 3/32 Dia.

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

748-0234

70

Shoulder Spacer .500 Dia. x.27 Lg.

Part# 748-0234

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

747-0530

71

Speed Control Link

Part# 747-0530 (Superseded to 747-0530A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.89

741-0405

72

Truss Bearing .56 Dia. x 1 .25

Part# 741-0405 (Superseded to 941-0405)

OEM Warranty Repair Part for White Outdoor

Not available

720-0165

73

Ball Knob

Part# 720-0165 (Superseded to 920-0232)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

756-0437

74

Fl-ldler Pulley 3.25 x .75

Part# 756-0437 (Superseded to 756-0643A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.86

756-0374

75

1/2" "V"-Pulley 8.0 O.D. x.501" I.D.

Part# 756-0374

OEM Warranty Repair Part for White Outdoor

Not available

736-0921

76

L-Wash. 1/2" I.D.

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

712-0922

77

Hex Jam Nut 1/2-20 Thd.

Part# 712-0922 (Superseded to 712-3029)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

710-0539

78

Hex Bolt 3/8-24 x .75 Lg.

Part# 710-0539

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.18

754-0281

79

Variable Speed Belt

Part# 754-0281 (Superseded to 954-0281)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $33.78

716-0114

80

Snap Ring .56 Dia.

Part# 716-0114 (Superseded to 916-0114)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0355

81

Fl-Wash.

Part# 736-0355

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

717-0800

82

Variable Speed Pulley Ass'y. 5 O.D.

Part# 717-0800 (Superseded to 917-0800A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $172.84

16354

84

Variable Speed Brkt. Ass'y.

Part# 16354 (Superseded to 16354B-0637)

OEM Warranty Repair Part for White Outdoor

Not available

732-0525

85

Comp. Spring Clip

Part# 732-0525

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.16

14770

86

Transaxle Support Brkt.-R.H.

Part# 14770

OEM Warranty Repair Part for White Outdoor

Not available

14769

Transaxle Support Brkt.-L.H.

Part# 14769 (Superseded to 14769A)

Note: (Not Shown)

OEM Warranty Repair Part for White Outdoor

Not available

712-0138

87

Hex Nut 1/4-28 Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Not available

725-0771

88

Solenoid

Part# 725-0771 (Superseded to 925-0771)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.86

16429

89

Shift Lever Bracket

Part# 16429

OEM Warranty Repair Part for White Outdoor

Not available

736-0414

90

Teflon Washer

Part# 736-0414 (Superseded to 936-0414)

OEM Warranty Repair Part for White Outdoor

Not available

725-0459

91

Circuit Breaker

Part# 725-0459 (Superseded to 753-0685)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.76

710-0959

92

Hex Bolt 5/16-18 x 1.50"

Part# 710-0959

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.63

738-0755

94

Shld. Bolt 3/8-24 x 3.12 Lg.

Part# 738-0755 (Superseded to 938-0755)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.36

732-0307

95

Ext. Spring .99" O.D. x 11.0"

Part# 732-0307 (Superseded to 932-0307A)

OEM Warranty Repair Part for White Outdoor

Not available

736-0105

97

Bell-Wash. .38 I.D. x .88

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

738-0569

98

Shaft .56 Dia. x 3.875 Lg.

Part# 738-0569 (Superseded to 938-0569)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.57

736-0331

99

Bell-Wash. .39 I.D. x 1.12

Part# 736-0331

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.78

736-0256

100

Fl-Wash.

Part# 736-0256 (Superseded to 936-0256)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.02

714-0507

101

Cotter Pin 3/32" Dia. x .75"

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0604

102

Hex Wash. Hd. Scr. 5/16-18 x.62" Lg.

Part# 710-0604 (Superseded to 710-0604A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0231

Fl-Wash. .34" I.D. x 1.12" O.D.

Part# 736-0231 (Superseded to 936-0231)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

16067

105

Belt Guard

Part# 16067

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

106

Hex Bolt 5/16-18 x .75" Lg.

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

15835

107

Pedal Bracket

Part# 15835

OEM Warranty Repair Part for White Outdoor

Not available

714-0507

108

Cotter Pin 3/32 x .75"

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

711-0198

109

Ferrule

Part# 711-0198 (Superseded to 911-0198)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.66

751-0446

110

Inlet Tube Ass'y.

Part# 751-0446

Not available

712-0798

111

Hex Nut 3/8"-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0169

112

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-0280

113

Fl-Wash. .390" I.D. x 1.12"

Part# 736-0280 (Superseded to 736-04005)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.32

756-0217

114

Fl-ldler w/Flanges 2.750

Part# 756-0217 (Superseded to 956-0217)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.92

710-0427

115

Hex Bolt 3/8-16 x 2.00" Lg.

Part# 710-0427 (Superseded to 710-3144)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-0258

116

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

16181

117

Spring Hanger Bracket

Part# 16181

Not available

710-0428

118

Hex Bolt 1/4-28 x 1.25" Lg.

Part# 710-0428

OEM Warranty Repair Part for White Outdoor

Not available

16437

119

Shift Lever Link Ass'y.

Part# 16437

OEM Warranty Repair Part for White Outdoor

Not available

736-0270

120

Bell-Wash. .265 I.D. x .75 O.D.

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

710-0195

121

Hex Bolt 1/4-28 x .62" Lg.

Part# 710-0195 (Superseded to 910-0195)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

736-0140

122

Fl-Wash. .385" I.D. x .62" O.D.

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for White Outdoor

Not available

736-0275

123

Fl-Wash. .34" I.D. x .68" O.D.

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for White Outdoor

Not available
