LT 120 (954140047-B) - Husqvarna Lawn Tractor (1998-01) Chassis And Enclosures Parts Diagram

Lawn Tractor

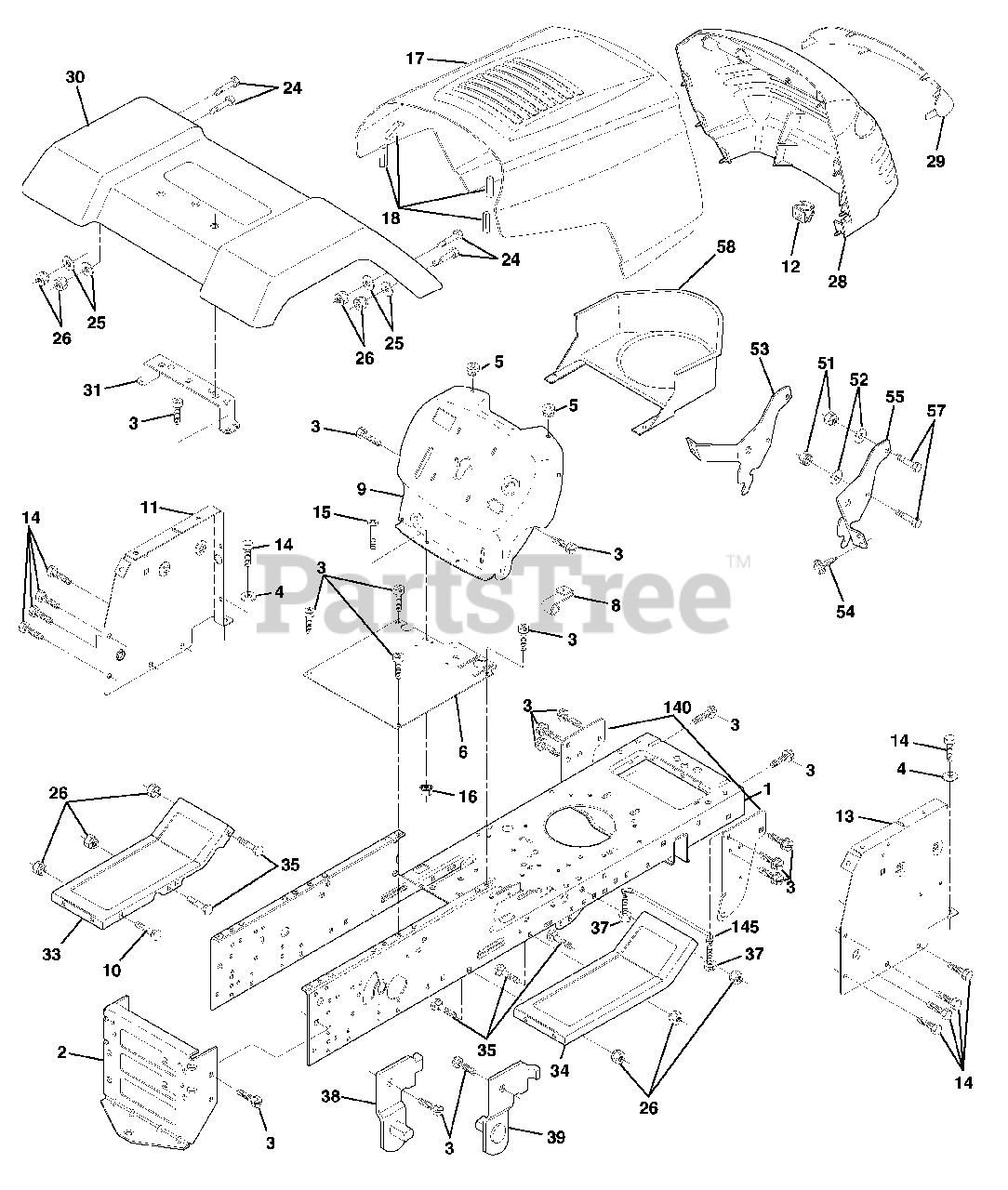

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532160393

Chassis Lt Stamping 98

$

$

Not available

2

Husqvarna 532140356

Drawbar, Stretch
(Superseded to 532145009)

$

$

Not available

3

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 819131216

Washer 13/32 X 3/4 X 16 Ga.

$

$

Not available

5

Husqvarna 532155272

Bumper, Hood/Dash

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 532162235

Saddle Silkscreen Flt Sdl

$

$

Not available

8

Husqvarna 532155138

Clip Retainer Slide-On

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532162717

Dash Slkscr

$

$

Currently unavailable

10

Husqvarna 872140608

Bolt, Carriage 3/8-16 x 1
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

11

Husqvarna 532155927

Panel Dash LH
(Superseded to 532174996)

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532145660

Clip Tinnerman Grille P.L

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 532157262

Panel Slkscr Dash RH
(Superseded to 532172107)

$

$

Not available

14

Husqvarna 817490608

Screw Thdrol 3/8-16x1/2 Ty-tt

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 874180512

Screw Mach TRHD 5/16-18uncx3/4

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873510500

Nut Keps 5/16-18 Unc
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532162237

Hood Pnt Stl Prvt Lbl
(Superseded to 532159639)

$61.99

$

In Stock, only 2 left!

0

18

Husqvarna 532126938

Bumper Hood

$

$

Not available

24

Husqvarna 874780616

Bolt Fin Hex 3/8-16unc X 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 873800600

Nut Lock Hex w/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532157373

Grille P.L Ms 428
(Superseded to 532179101)

$

$

Not available

29

Husqvarna 532140273

Lens Grille Private Label

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532163534

Fender Pnt LT W/o Shift(red)

$

$

Currently unavailable

31

Husqvarna 532136619

Bracket Fender Repl 109873x

$

$

Not available

33

Husqvarna 532162241

Footrest Pnt LH Perf

$2.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532162242

Footrest Pnt RH Perf

$2.49

$

Usually ships in 3-10 days

0

35

Husqvarna 872110606

Bolt Rdhd Sht Sqnk 3/8-16 X3/4

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532139886

Bracket Asm Pvt LH MWR Rear

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532139887

Bracket Asm Pvt RH MWR Rear

$8.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873800400

Nut Lock W/Insert 1/4-20unc
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

Washer 9/32 x 7/8x16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532144697

Bracket Grille Lh

$

$

Not available

54

Husqvarna 532161464

Screw

$

$

Not available

55

Husqvarna 532144696

Bracket Grille Rh

$

$

Not available

57

Husqvarna 874780412

Bolt Fin Hex 1/4-20 unc x .75
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

Duct Air Engine PL/LT

$

$

Not available

140

Husqvarna 532158418

Bracket Suspension Front

$

$

Not available

145

Husqvarna 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

Husqvarna 532005479

Plug Button Blk 359 Dia Choke

$4.99

$

Usually ships in 3-10 days

0
