LT 120 (954140047-B) - Husqvarna Lawn Tractor (1998-01) Chassis And Enclosures Parts Diagram

Lawn Tractor

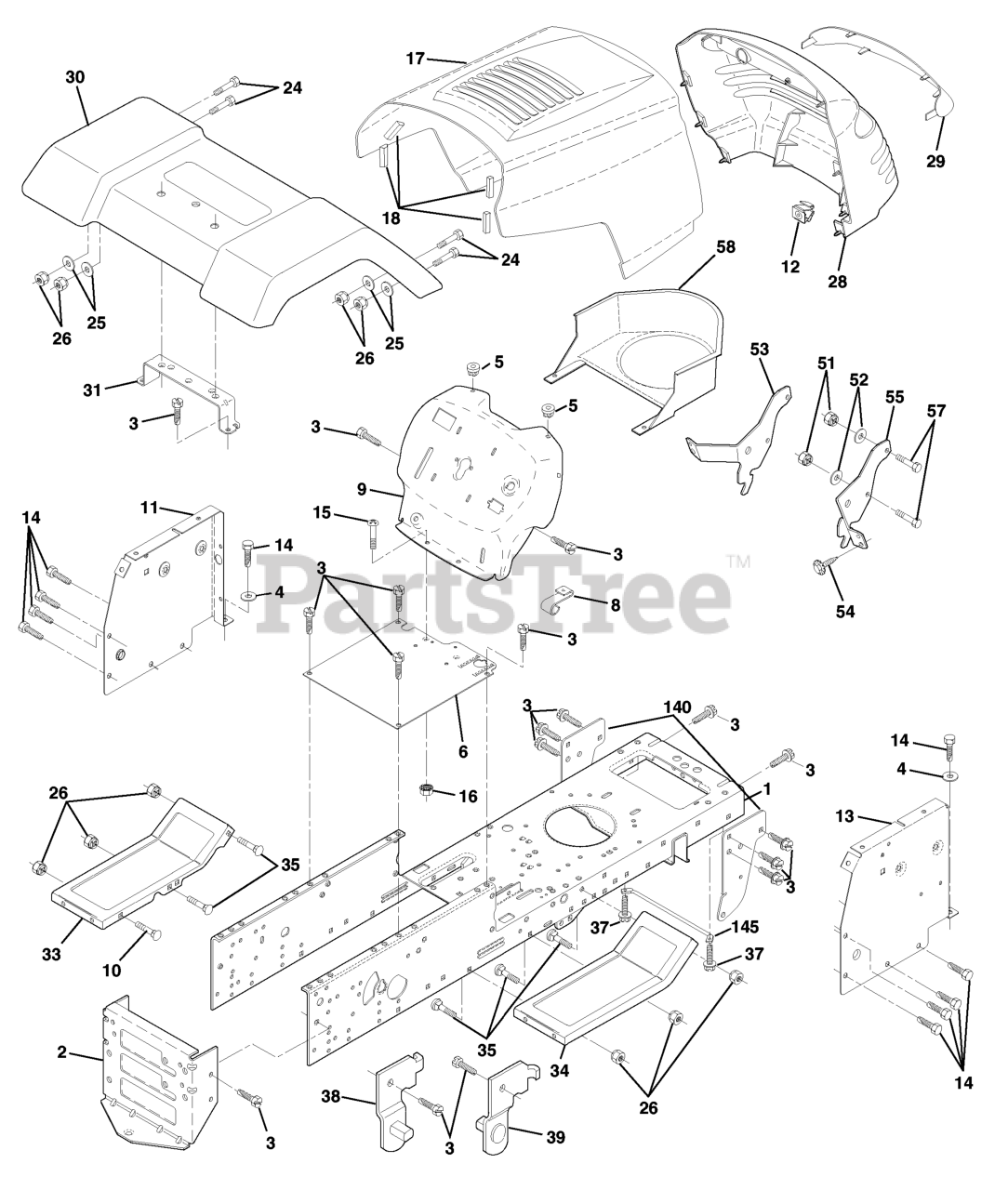

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532160393

Chassis Lt Stamping 98

$

$

Not available

2

Husqvarna 532140356

STRETCH DRAWBAR
(Superseded to 532145009)

$

$

Not available

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

4

Husqvarna 819131216

Washer 13/32 X 3/4 X 16 Ga.

$

$

Not available

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 532162235

Saddle Silkscreen Flt Sdl

$

$

Not available

8

Husqvarna 532155138

CLIP RETAINER

$

$

Not available

9

Husqvarna 532162717

Dash Slkscr

$

$

Currently unavailable

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 532155927

PANEL DASH LH
(Superseded to 532174996)

$

$

Not available

12

Husqvarna 532145660

CLIP

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532157262

PANEL DASH RH
(Superseded to 532172107)

$

$

Not available

14

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 874180512

Screw Mach TRHD 5/16-18uncx3/4

$

$

Not available

16

Husqvarna 873510500

NUT
(Superseded to 873800500)

$

$

Not available

17

Husqvarna 532162237

HOOD ASM.
(Superseded to 532159639)

$74.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

24

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

28

Husqvarna 532157373

GRILLE
(Superseded to 532179101)

$

$

Not available

29

Husqvarna 532140273

LENS

$

$

Not available

30

Husqvarna 532163534

Fender Pnt LT W/o Shift(red)

$

$

Currently unavailable

31

Husqvarna 532136619

BRACKET FENDER

$

$

Not available

33

Husqvarna 532162241

Footrest Pnt LH Perf

$2.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532162242

Footrest Pnt RH Perf

$2.49

$

Usually ships in 3-10 days

0

35

Husqvarna 872110606

BOLT
(Superseded to 596136001)

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2 TYT
(Superseded to 539990858)

$

$

Not available

38

Husqvarna 532139886

BRACKET LH PIVOT

$

$

Not available

39

Husqvarna 532139887

BRACKET RH PIVOT

$

$

Not available

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

52

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

53

Husqvarna 532144697

BRACKET.GRILLE.LH

$

$

Not available

54

Husqvarna 532161464

SCREW.HEX.WS.HD.8-18 X 7/8

$

$

Not available

55

Husqvarna 532144696

BRACKET

$

$

Not available

57

Husqvarna 874780412

BOLT
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

AIR DUCT P/L/LT

$

$

Not available

140

Husqvarna 532158418

BRACKET SUSPENSION FRONT

$

$

Not available

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

Husqvarna 532005479

PLUG BUTTON T

$9.49

$

Usually ships in 3-10 days

0
