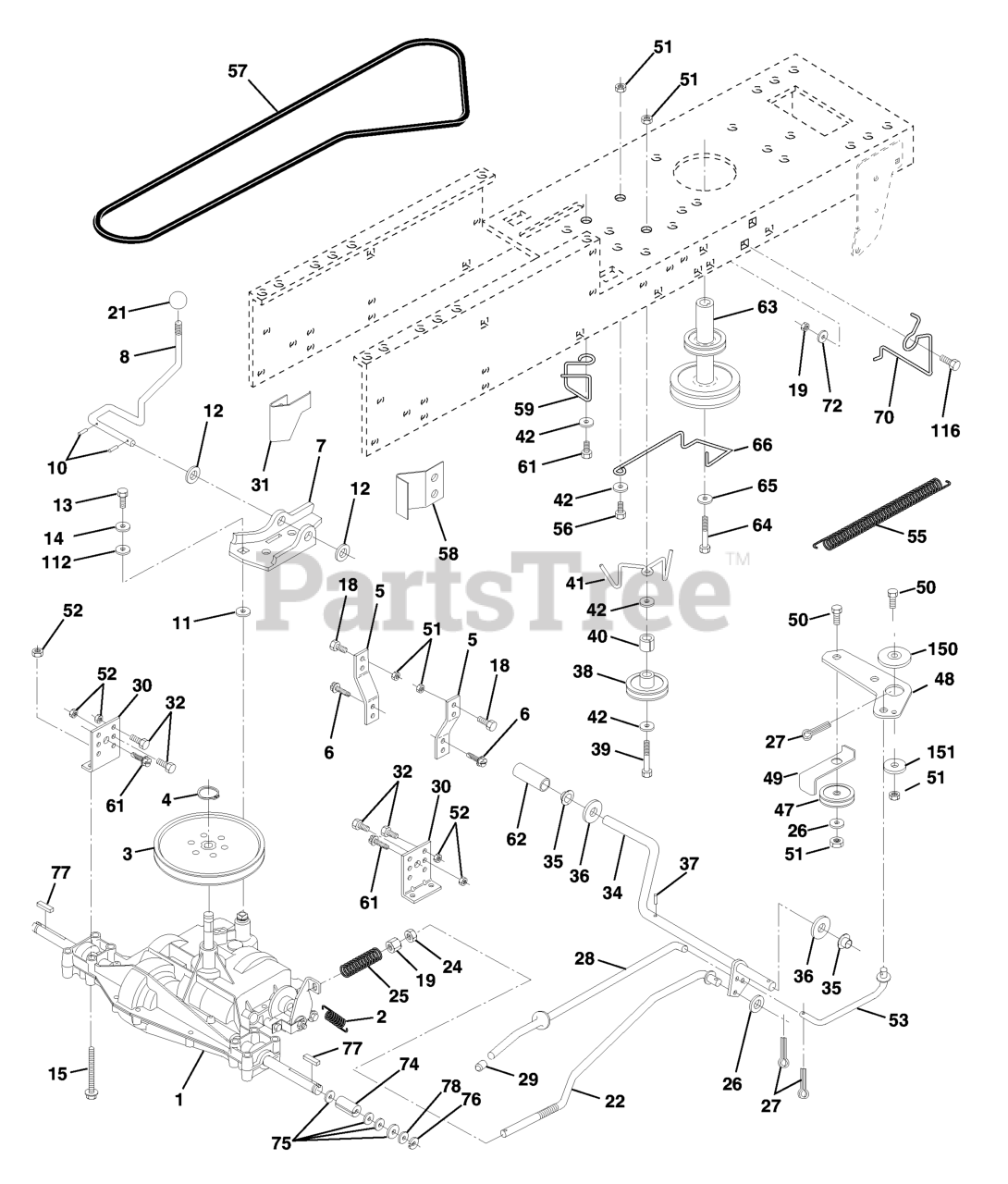

LT 120 (954140047-B) - Husqvarna Lawn Tractor (1998-01) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle (See Breakdown) Dana

Note: Model 4360-120

$

$

Not available

2

Husqvarna 532146682

SPRING,BRAKE RETURN

$7.99

$

In Stock, only 2 left!

0

3

Husqvarna 532123666

PULLEY TRANS

$51.99

$

In Stock, Qty 5

0

4

Husqvarna 812000028

RETAINING RING LT

$2.49

$

In Stock, only 1 left!

0

5

Husqvarna 532121520

STRAP TORQUE

$7.99

$

In Stock, only 2 left!

0

6

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532162240

BRACKET T/A SADDLE SHIFT

$

$

Not available

8

Husqvarna 532131679

ROD SHIFTER BLK

$

$

Not available

10

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532105701

WASH-SHFT PLT LT

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 819151216

Washer 15/32 X 3/4 X 16 Ga

$

$

Not available

13

Husqvarna 874550412

BOLT 1/4-28X3/4
(Superseded to 596136601)

$3.49

$

In Stock, only 1 left!

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5
(Superseded to 595316601)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532130804

ROD BRAKE

$28.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$5.99

$

In Stock, Qty 19

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

In Stock, only 2 left!

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$

$

Not available

31

Husqvarna 532127275

KEEPER BELT LH

$

$

Not available

32

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532155071

SHAFT, FOOT PEDAL

$

$

Not available

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 1 left!

0

36

Husqvarna 819211616

WASHER LT
(Superseded to 596933401)

$3.49

$

In Stock, Qty 13

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, only 2 left!

0

38

Husqvarna 532123674X

Pulley Idler Flat

$

$

Currently unavailable

39

Husqvarna 874760644

BOLT

$

$

Not available

40

Husqvarna 532124965

SPACER T

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532154777

KEEPER, BELT IDLER
(Superseded to 532165838)

$

$

Not available

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$6.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

51

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.49

$

In Stock, Qty 20+

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 20+

0

56

Husqvarna 874760620

BOLT

$5.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532160855

V-BELT.GROUND DRV
(Superseded to 583271401)

$62.99

$

In Stock, only 1 left!

0

58

Husqvarna 532127274

KEEPER

$

$

Not available

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$22.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$5.99

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 1 left!

0

63

Husqvarna 532140186

PULLEY.ENG.CL.MECH.SLVR.LT/YT

$125.99

$

Usually ships in 3-10 days

0

64

Husqvarna 871170764

BOLT
(Superseded to 501606501)

$3.49

$

In Stock, only 2 left!

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

66

Husqvarna 532154778

KEEPER BELT ENGINE
(Superseded to 531151001)

$9.49

$

In Stock, only 1 left!

0

70

Husqvarna 532134683

KEEPER BELT ENG
(Superseded to 531165301)

$7.99

$

In Stock, only 2 left!

0

72

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

74

Husqvarna 532109502

SPACER LT

$

$

Not available

75

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

76

Husqvarna 812000001

E-RING LT

$3.49

$

In Stock, Qty 20+

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

112

Husqvarna 819091210

WASHER LT
(Superseded to 596039801)

$3.49

$

Usually ships in 3-10 days

0

116

Husqvarna 872110610

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, Qty 12

0

148

Husqvarna 532159103

GUIDE

$

$

Not available

149

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, Qty 20+

0

150

Husqvarna 532150935

BUSHING NYLON COLLERED

$

$

Not available

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, only 2 left!

0
