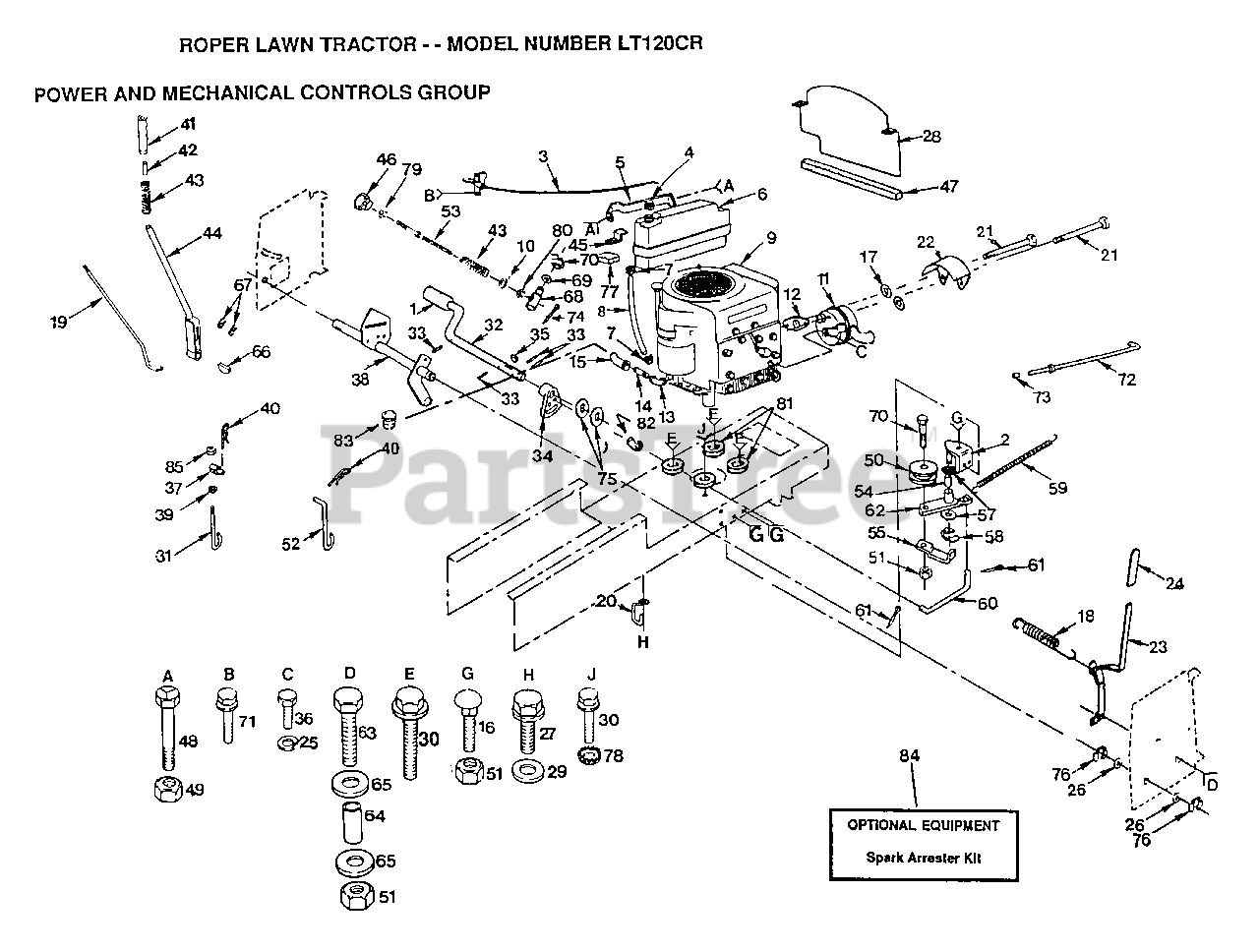

LT 120 CR - Electrolux/AYP Lawn Tractor POWER, MECHANICAL CTRLS Parts Diagram

Lawn Tractor

POWER, MECHANICAL CTRLS Parts Diagram

  • Title

1

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

2

Electrolux/AYP 105724X

SUB= 123102X

$

$

Not available

3

Electrolux/AYP 121275X

SUB= 132753

$

$

Not available

4

Electrolux/AYP 8504J

SUB= 9188504J

$

$

Not available

5

Electrolux/AYP 121281X

SUPT TANK FUEL

$

$

Not available

6

Electrolux/AYP 121280X

FUEL TANK
(Superseded to 532121280)

$

$

Not available

7

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

8

Electrolux/AYP 7833R

HOSE T
(Superseded to 532007833)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 281707

ENGINE 12 H.P. TYPE 0201-01

$

$

Not available

10

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 121304X

MUFFLER
(Superseded to 532121304)

$

$

Not available

12

Electrolux/AYP 1407J

SUB= 272293

$

$

Not available

13

Electrolux/AYP 13240300

STREET ELBOW LT
(Superseded to 813240300)

$7.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 13280328

PIPE NIPPLE
(Superseded to 813280328)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 18

0

16

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

17

Electrolux/AYP 19151116

WASHER

$

$

Not available

18

Electrolux/AYP 102727X

"SPRING.EXT.8.5"""
(Superseded to 532102727)

$

$

Not available

19

Electrolux/AYP 104598X

ROD ASSY-LEVER LT

$

$

Not available

20

Electrolux/AYP 104777X

SUB= 140312

$

$

Not available

21

Electrolux/AYP 121744X

BOLT
(Superseded to 532121744)

$

$

Not available

22

Electrolux/AYP 121742X

HEAT SHIELD
(Superseded to 532121742)

$

$

Not available

23

Electrolux/AYP 106983X

HANDLE YT

$

$

Not available

24

Electrolux/AYP 4617J

SUB= 532131861
(Superseded to 532131861)

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 109623X

SUB= 133685

$

$

Not available

29

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 17490628

SCREW LT
(Superseded to 817490628)

$3.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 110448X

PIVOT PIN T
(Superseded to 532110448)

$7.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 109037X

FOOT SHAFT PEDAL

$

$

Not available

33

Murray 1572H

SUB= 2882J

$

$

Not available

34

Electrolux/AYP 106918X

ARM BRAKE LT
(Superseded to 583653301)

$

$

Not available

35

Murray 2228M

SUB= 2228M1

$

$

Not available

36

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 110447X

SUB= 132793
(Superseded to 532110447)

$

$

Not available

38

Electrolux/AYP 120174X

SHAFT T

$

$

Not available

39

Electrolux/AYP 73360700

NUT
(Superseded to 873610700)

$7.49

$

Usually ships in 3-10 days

0

40

Murray 4939M

SUB= 85902

$

$

Not available

41

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$6.99

$

In Stock, only 2 left!

0

42

Electrolux/AYP 105723X

SUB= 125925X

$

$

Not available

43

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 104597X

LEVER ASSY LT

$

$

Not available

45

Electrolux/AYP 104799X

BRACE-TANK LT

$

$

Not available

46

Electrolux/AYP 121891X

HDLE ADJ LIFT
(Superseded to 532121891)

$

$

Not available

47

Electrolux/AYP 104915X

SUB= 105037X

$

$

Not available

48

Electrolux/AYP 74780512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

49

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

50

Electrolux/AYP 106298X

SUB= 139245

$

$

Not available

52

Electrolux/AYP 110029X

LIFT LINK LT
(Superseded to 532110029)

$

$

Not available

53

Electrolux/AYP 110729X

ROD LIFT LT
(Superseded to 532110729)

$

$

Not available

54

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 106499X

SUB= 123205X

$

$

Not available

57

Electrolux/AYP 110812X

WASHER LT
(Superseded to 532110812)

$

$

Not available

58

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 13

0

59

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$10.99

$

In Stock, Qty 20+

0

60

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 105705X

SUB= 125829X

$

$

Not available

63

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 108056X

BUSHING YT

$

$

Not available

65

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 8330H

KEY STD

$

$

Not available

67

Electrolux/AYP 23180606

SCREW

$

$

Not available

68

Electrolux/AYP 110810

SUB= 110810X

$

$

Not available

69

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

70

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 17080408

SCREW
(Superseded to 817080408)

$2.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 105844X

SUB= 125637X

$

$

Not available

73

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$4.99

$

In Stock, only 2 left!

0

74

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

75

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

In Stock, Qty 20+

0

76

Electrolux/AYP 12000022

E-RING
(Superseded to 812000022)

$6.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 6431J

PAD-SPACER T
(Superseded to 532106082)

$

$

Not available

78

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

80

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$3.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 101200K

SPACER LT

$

$

Not available

82

Electrolux/AYP 13310300

STREET ELBOW LT
(Superseded to 813310300)

$8.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 13290300

PLUG T
(Superseded to 813290300)

$

$

Not available

84

Electrolux/AYP 122083X

SPARK ARREST KIT

$189.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 73710700

NUT LOCK YTH

$2.99

$

Usually ships in 3-10 days
