LT 1238 (954567024-C) - Husqvarna Lawn Tractor (2001-10) Mower Deck Parts Diagram

Lawn Tractor

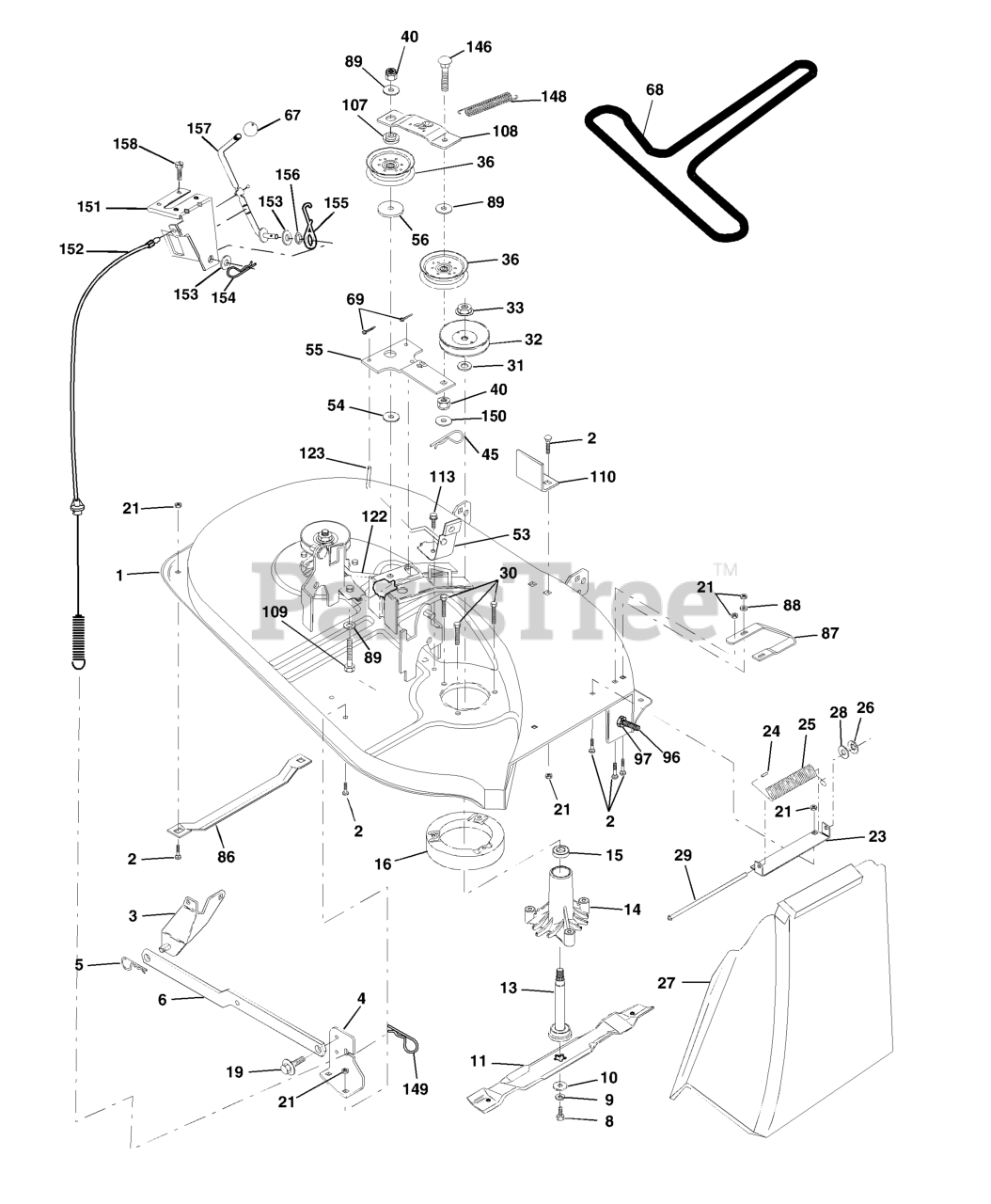

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532170280

MOWER HOUSING ASM
(Superseded to 532176028)

$

$

Not available

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR
(Superseded to 531165401)

$20.99

$

In Stock, Qty 14

0

4

Husqvarna 532169970

BRACKET DECK SWAY BAR 38/42"

$6.99

$

In Stock, only 2 left!

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

6

Husqvarna 532178024

BAR SWAY DECK
(Superseded to 531149301)

$13.99

$

In Stock, only 2 left!

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 532138497

BLADE.HI.LIFT.38"

$26.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

Note: (Includes Key Number 6)

$34.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)
(Superseded to 529910001)

$51.99

$

In Stock, only 1 left!

0

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

23

Husqvarna 532137607

BRACKET, DEFLECTOR
(Superseded to 531155201)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, Qty 16

0

26

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532175943

SHIELD, DEFLECTOR
(Superseded to 532106736)

$

$

Not available

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Gauge

$

$

Not available

29

Husqvarna 532106735

ROD-HINGE T

$11.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, Qty 20+

0

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

40

Husqvarna 873680600

LOCKNUT

$

$

Not available

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 532130840

BRAKE ASSEMBLY
(Superseded to 531165101)

$62.99

$

In Stock, Qty 10

0

54

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

In Stock, Qty 20+

0

55

Husqvarna 532133840

IDLER ARM
(Superseded to 531164901)

$13.99

$

In Stock, only 3 left!

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, Qty 20+

0

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$9.49

$

In Stock, Qty 6

0

68

Husqvarna 532144200

V-BELT TRIPATH

$51.99

$

In Stock, Qty 20+

0

69

Husqvarna 876020312

COTTER PIN
(Superseded to 596917601)

$3.49

$

Usually ships in 3-10 days

0

86

Husqvarna 532125074

RUNNER-LH M
(Superseded to 532007631)

$17.99

$

In Stock, Qty 9

0

87

Husqvarna 532128772

RUNNER.RH.38

$

$

Not available

88

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

89

Husqvarna 819131612

WASHER GT
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

96

UNKNOWN

$

$

Not available

97

UNKNOWN

$

$

Not available

107

Husqvarna 532133502

SPACER.IDLER.ARM

$5.99

$

In Stock, only 3 left!

0

108

Husqvarna 532133503

STIFFENER.IDLER.ARM
(Superseded to 531150801)

$7.99

$

In Stock, Qty 13

0

109

Husqvarna 874760640

Bolt, Hex Hd 3/8-16 x 2-1/2

$

$

Not available

110

Husqvarna 532142587

UPSTOP DECK FRONT 38"

$

$

Not available

113

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 12

0

122

Husqvarna 532131289

BRAKE ROD LH

$

$

Not available

123

Husqvarna 532169971

ROD.BRAKE.MANDREL.RH

$7.99

$

In Stock, Qty 12

0

146

Husqvarna 532165891

BOLT, CARRIAGE IDLER
(Superseded to 532171977)

$6.99

$

In Stock, Qty 20+

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$4.99

$

In Stock, Qty 20+

0

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$4.99

$

In Stock, only 2 left!

0

150

Husqvarna 819091216

WASHER PM
(Superseded to 596204201)

$3.49

$

In Stock, Qty 10

0

151

Husqvarna 532169670

BRACKET.CLUTCH.CABLE

$

$

Not available

152

Husqvarna 532172758

CLUTCH CABLE 38"/46"

$68.99

$

In Stock, only 3 left!

0

153

Husqvarna 532169674

WASHER FLAT 3/8"
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

154

Husqvarna 532169675

SPRING RETAINER

$5.99

$

In Stock, only 3 left!

0

155

Husqvarna 532169671

SPRING RETENTION LEVER

$22.99

$

In Stock, Qty 8

0

156

Husqvarna 532169672

SPACER.CLUTCH.CABLE

$

$

Not available

157

Husqvarna 532169669

ROD CLUTCH CABLE 3/8"

$

$

Not available

158

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, only 3 left!

0

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

Note: (Includes Housing Shaft and Shaft Hardware Only - Pulley Not Included)

$62.99

$

In Stock, Qty 20+

0

Husqvarna 532180874

MOWER REPLACEMENT, COMPLETE
(Superseded to 532171665)

$

$

Not available
